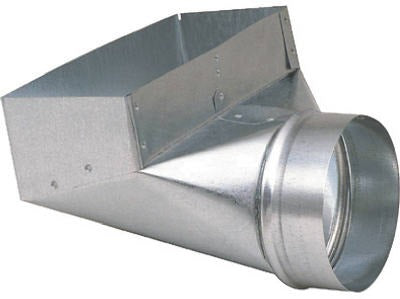

Imperial GV0624-C Galvanized Register Boot 3.25x10 to 6 in 30 Gauge

Product Description

The IMPERIAL MFG GROUP USA INC GV0624-C is a 90-degree galvanized steel register boot designed to transition from a 3.25-inch by 10-inch rectangular duct opening to a 6-inch round collar. Fabricated from 30-gauge galvanized steel, this boot connects ductwork to floor, ceiling, or wall register grilles in residential and light-commercial forced-air systems. HVAC installers and sheet metal contractors use this fitting to complete the final duct run to a supply register. The galvanized construction provides corrosion resistance suited to attic, crawlspace, and unconditioned-space installations.

This register boot is used in residential forced-air heating and cooling systems where a rectangular duct trunk or branch must terminate at a round-collar register opening. The 90-degree offset configuration is the standard choice for floor and low-sidewall register installations, allowing the supply duct to transition from a joist-bay run to a vertical register face. It is sold in a package quantity of 6 units, making it practical for new construction or multi-room retrofits.

Key Features

• Transitions from 3.25 inches x 10 inches rectangular duct to a 6-inch round collar
• 90-degree offset configuration for floor and low-sidewall register applications
• 30-gauge galvanized steel construction for corrosion resistance
• Sold in a package quantity of 6 units
• Compatible with standard 6-inch round duct connections and matching supply registers

Compatibility

Designed as an OEM-style replacement and new-construction fitting for residential forced-air HVAC systems requiring a 3.25-inch by 10-inch rectangular to 6-inch round register boot transition.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Shut down the air handling unit and confirm the system is de-energized before cutting into or connecting ductwork. Secure the boot to the duct and floor framing using sheet metal screws and seal all joints with listed duct sealant or metal-foil tape per applicable mechanical codes. Verify the register grille fits the 6-inch collar opening before finalizing the installation.
