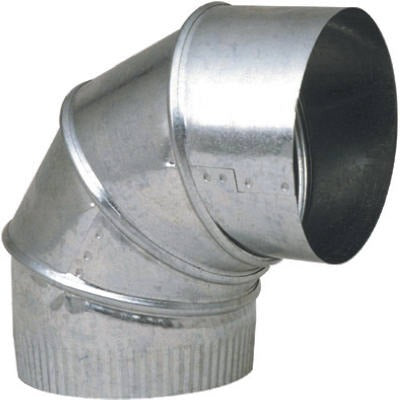

Imperial GV0301-C 8 in 24GA Galvanized Adjustable Furnace Elbow

Product Description

The IMPERIAL MFG GROUP USA INC GV0301-C is an 8-inch adjustable 90-degree galvanized steel furnace elbow designed for residential and light commercial HVAC duct systems. Fabricated from 24-gauge galvanized steel, it provides a durable, corrosion-resistant connection point for transitioning airflow direction within forced-air heating systems. The adjustable design allows the installer to fine-tune the angle within the 90-degree sweep, reducing the need for custom fabrication on the job site. HVAC sheet metal mechanics and installers commonly specify this fitting when routing supply or return ductwork around structural obstructions.

This elbow is suited for use in residential furnace installations and light commercial forced-air systems where an 8-inch round or rectangular duct transition requires a direction change. The 24-gauge galvanized construction meets common requirements for residential HVAC duct fittings. It is typically installed as part of a trunk-and-branch or plenum-fed duct system and works with standard 8-inch duct connections. Each package contains 8 units, making it practical for contractors stocking job-site inventory.

Key Features

• Adjustable 90-degree elbow allows field adjustment to fit varied installation angles
• 24-gauge galvanized steel construction resists corrosion in conditioned air environments
• 8-inch size fits standard residential and light commercial duct diameters
• Package quantity of 8 units supports multi-unit or multi-job stocking
• Galvanized finish compatible with standard sheet metal duct systems

Compatibility

Designed as an OEM-style galvanized sheet metal fitting for use with standard 8-inch round forced-air furnace duct systems in residential and light commercial HVAC applications.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed sheet metal mechanic in accordance with applicable local mechanical codes and SMACNA ductwork standards. Shut down the furnace and air handler before modifying or connecting ductwork. Secure all joints with appropriate sheet metal screws and seal with UL-listed duct sealant or metal-backed tape to maintain system efficiency. Do not use standard cloth-backed tape as a primary duct sealant.
