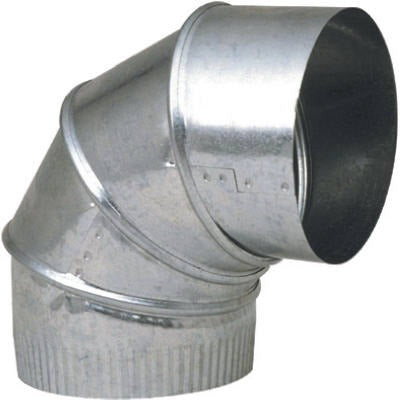

Imperial GV0293-C 6 in Adjustable 24GA Furnace Elbow 90 Degree

Product Description

The IMPERIAL MFG GROUP USA INC GV0293-C is a 6-inch adjustable 90-degree furnace elbow fabricated from 24-gauge galvanized steel. It is used to route round duct in forced-air heating systems where a directional change is needed. The adjustable design allows the elbow angle to be set during installation, reducing the need for multiple fixed-angle fittings. Licensed HVAC technicians and sheet metal installers typically handle this fitting during furnace flue or supply-duct rough-in work. The galvanized finish provides corrosion resistance for long-term performance in residential and light commercial duct systems.

This elbow is suited for residential and light commercial forced-air furnace installations where 6-inch round duct transitions require a 90-degree directional change. It fits into standard trunk-and-branch duct layouts and is commonly installed at furnace collars, plenum connections, or branch takeoffs. The adjustable construction is especially useful in tight mechanical rooms or attic installations where fixed elbows may not align with existing duct runs. Sold in a package quantity of 8, making it practical for multi-unit or tract-home installations.

Key Features

• Adjustable 90-degree angle for flexible field fitting during installation
• 6-inch diameter fits standard round duct and furnace collar sizes
• 24-gauge galvanized steel construction for rigidity and corrosion resistance
• Package quantity of 8 units supports larger job-site requirements
• Designed for use in forced-air furnace and HVAC duct systems

Compatibility

Designed as an OEM-style replacement and new-construction fitting for residential and light commercial forced-air HVAC duct systems using 6-inch round duct.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal mechanic. Secure all duct connections with sheet metal screws and seal joints with UL 181-listed foil tape or mastic per local mechanical code requirements. Power down the furnace and blower system before making any duct modifications near the air handler or furnace collar. Do not use standard duct tape in place of listed sealing materials.
