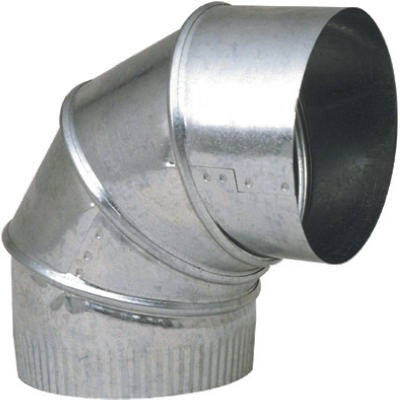

Imperial GV0282-C 3in 90-degree Galvanized Furnace Elbow

Product Description

The IMPERIAL MFG GROUP USA INC GV0282-C is a 3-inch adjustable 90-degree galvanized steel furnace elbow designed for residential and light commercial HVAC duct systems. Fabricated from 30-gauge galvanized steel, this elbow provides a rigid, corrosion-resistant connection at directional changes in warm-air furnace supply or return ductwork. The adjustable design allows field technicians to fine-tune the angle within the 90-degree range, reducing the need for custom fabrication on the job site. Licensed HVAC technicians and sheet metal mechanics install this fitting as part of trunk-and-branch or plenum-based duct systems.

This elbow is suited for 3-inch round galvanized duct runs commonly found in residential forced-air heating systems. It is typically installed at transitions where ductwork must change direction to route around structural framing or mechanical obstructions. The galvanized finish is appropriate for conditioned interior spaces and unconditioned areas such as basements, crawlspaces, and attic installations where mild moisture exposure may occur. Package quantity is 8 units per package, making it practical for contractors stocking multiple fittings for a project.

Key Features

• Adjustable 90-degree elbow allows field angle adjustment without custom fabrication
• 30-gauge galvanized steel construction for corrosion resistance and durability
• 3-inch diameter fits standard residential round duct runs
• Galvanized finish suitable for interior and semi-exposed duct installations
• Sold in packages of 8 for multi-fitting project stocking

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 3-inch round galvanized ductwork in residential and light commercial forced-air HVAC systems.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal mechanic in accordance with SMACNA duct construction standards and local mechanical codes. Power down the air-handling system before making duct connections to avoid interference with airflow testing. Secure the elbow to adjoining duct sections using sheet metal screws and seal all joints with UL 181-listed duct tape or mastic sealant to maintain system efficiency. Do not use this fitting in applications involving combustion exhaust or flue gas; it is intended for supply and return air duct systems only.
