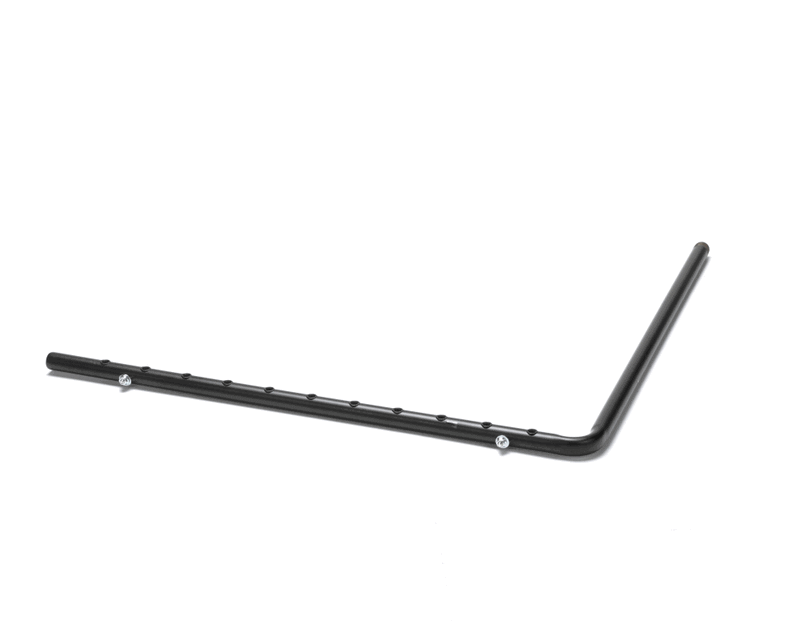

Imperial Eastman 863 Gas Manifold Pipe 36 in Radiant Broiler

Product Description

The IMPERIAL EASTMAN 863 is a gas manifold pipe designed for use in commercial radiant broiler applications. Measuring 36 inches in length, this manifold pipe distributes gas flow across the burner section of a radiant broiler, providing the supply connection required for consistent combustion. It is a direct-application component used in commercial cooking equipment service and is typically installed or replaced by a qualified commercial appliance technician or licensed gas fitter.

This manifold pipe is intended for commercial food service equipment, specifically radiant broiler units. Radiant broilers are commonly found in restaurant kitchens and institutional food preparation environments. The 863 serves as a replacement manifold pipe for the gas distribution assembly within these units, making it a relevant part for commercial kitchen equipment service technicians.

Key Features

• 36-inch length suited for full-width gas distribution in radiant broiler applications
• Designed as an OEM-style replacement component for commercial broiler gas manifold assemblies
• Supports consistent gas flow distribution across the burner array
• Intended for commercial appliance service and maintenance use

Compatibility

Designed as a replacement gas manifold pipe for commercial radiant broiler equipment. No specific model numbers or system family names were provided in the product data. Verify fitment against your equipment model and existing manifold configuration before installation.

Installation Notes

Installation should be performed by a licensed gas fitter or qualified commercial appliance technician in accordance with local codes and the applicable provisions of the International Fuel Gas Code (IFGC). Shut off the gas supply and allow all components to cool completely before beginning any manifold service. Inspect all fittings and connections for leaks using an approved leak-detection solution after reinstallation. Do not over-tighten fittings or substitute unapproved components in the gas train.

Technical Specifications

• Length: 36 inches
• Application: Radiant Broiler Gas Manifold

Standard Information

• Brand: IMPERIAL EASTMAN
• Manufacturer Part Number: 863
