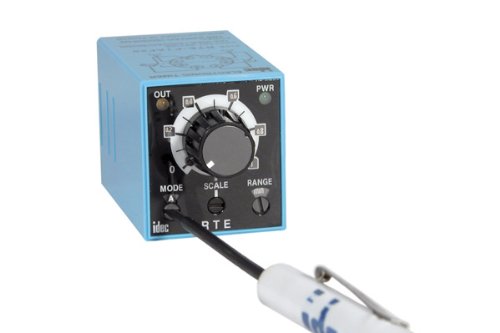

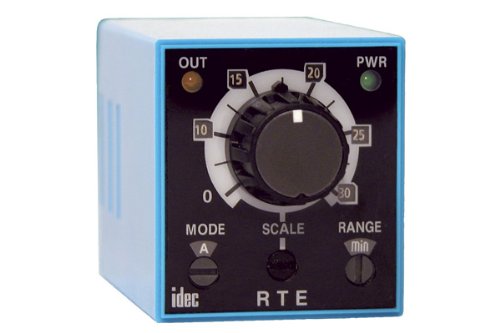

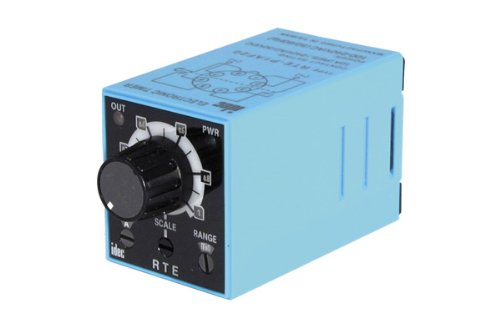

IDEC RTE-P2AF20 Timing Relay Multi-Function DPDT 10A 100-240VAC 11 Pin

Product Description

The IDEC RTE-P2AF20 is a versatile multi-function timing relay that enables precise control and timing capabilities across a range of applications. Manufactured by IDEC, a leader in the industry, this relay boasts a current rating of 10 amps and a control voltage from 100 to 240 VAC. It's designed for PCB mounting and features an 11-pin configuration.

• Supports various timing functions including ON-delay, OFF-delay, and one-shot.
• Highly durable with a solid-state construction.
• Equipped with LED indicators for ON and timing status.

Product Highlights

This relay is ideal for professionals in the industrial and electrical sectors, offering reliable performance and operational versatility. The compact design ensures it fits easily within standard setups, while its multiple timing functions allow for customized use.

Product Information

Standard Information

• Brand: IDEC
• MPN: RTE-P2AF20

Technical Specifications

• Current Rating: 10 A
• Control Voltage: 100 to 240 VAC
• Mounting Type: PCB
• Number of Pins: 11
• Operation Mode: Multi-Mode
• Enclosure Type: IP40
• Temperature Range: -20 to 65 degrees Celsius
• Application: Industrial control, process automation
