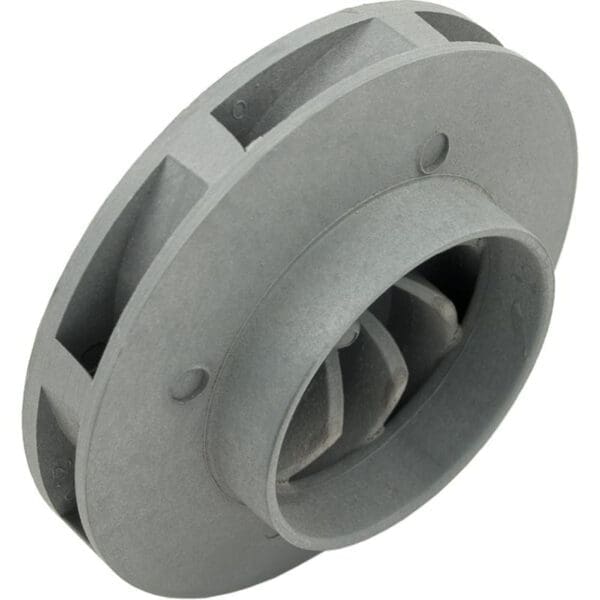

Impeller Acura Spa 54L

Product Description

The Impeller Acura Spa 54L is designed for use in Aquaheat Plus and Magnaflow pumps. This closed face impeller has a power rating of two horsepower, making it suitable for installation on a motor rated at two horsepower or greater. It is compatible with Catalina Spa, Acura Spa, and Aquaheat Plus pumps.

• Designed for Aquaheat Plus and Magnaflow pumps.
• Rated at two horsepower.
• Compatible with Catalina Spa and Acura Spa pumps.

Product Highlights

This impeller serves as a replacement part for select spa pump models, ensuring efficient water circulation.

Product Information

Standard Information

• Impeller Type: Closed Face
• Manufacturer: Acura Spa

Technical Specifications

• Impeller Diameter OD: 4-1/8 inches
• Vane Width ID: 3/8 inches
• Eye Diameter OD: 2-7/16 inches
• Eye Length: 1/2 inches
• Impeller Width OD: 5/8 inches
• Seal Seat Depth: 5/16 inches
• Shaft Length: 9/16 inches
• Shaft Diameter OD: 1/2 inches
• Seal Seat Diameter OD: 1-9/16 inches
• Pump Application: Aquaheat Plus, Magnaflow
