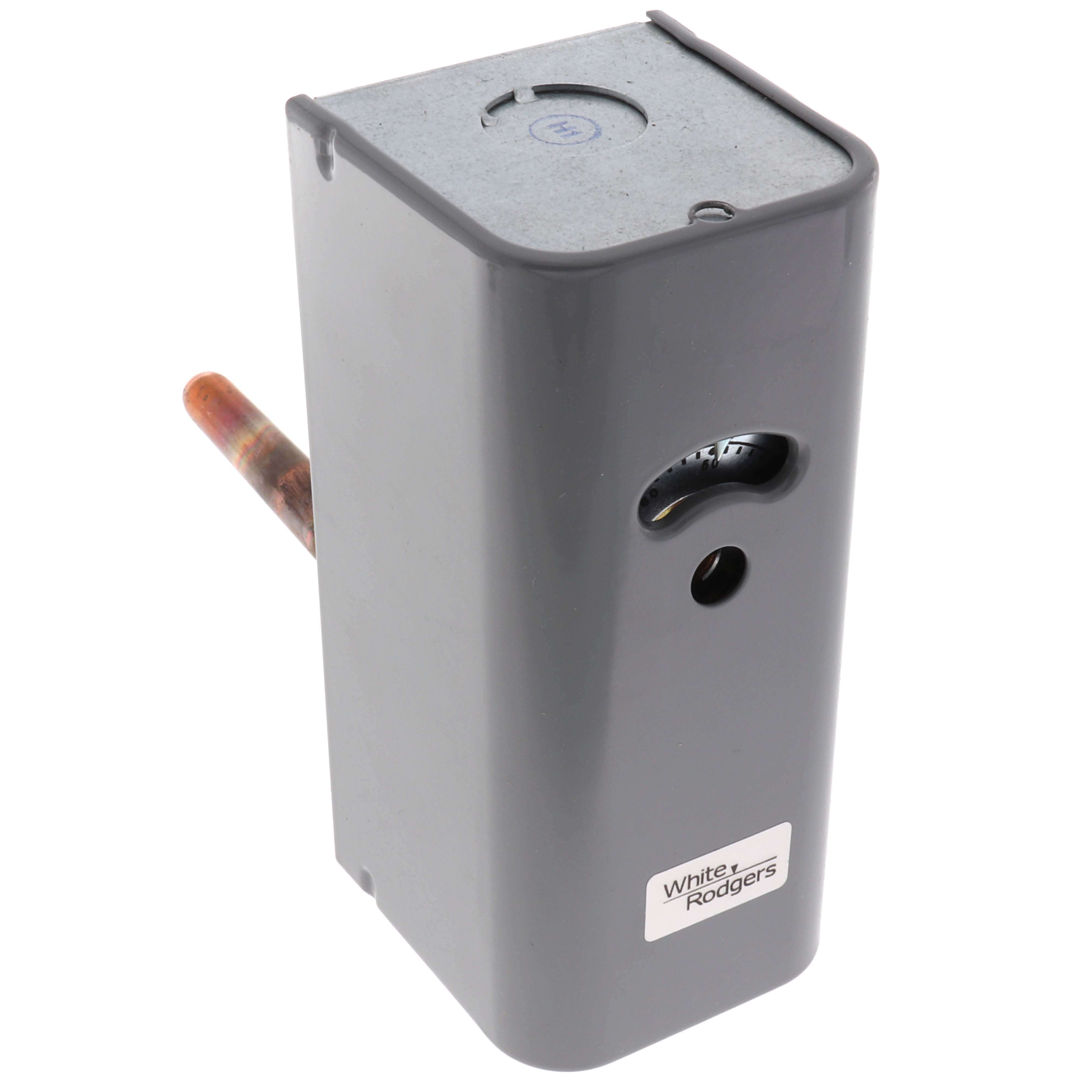

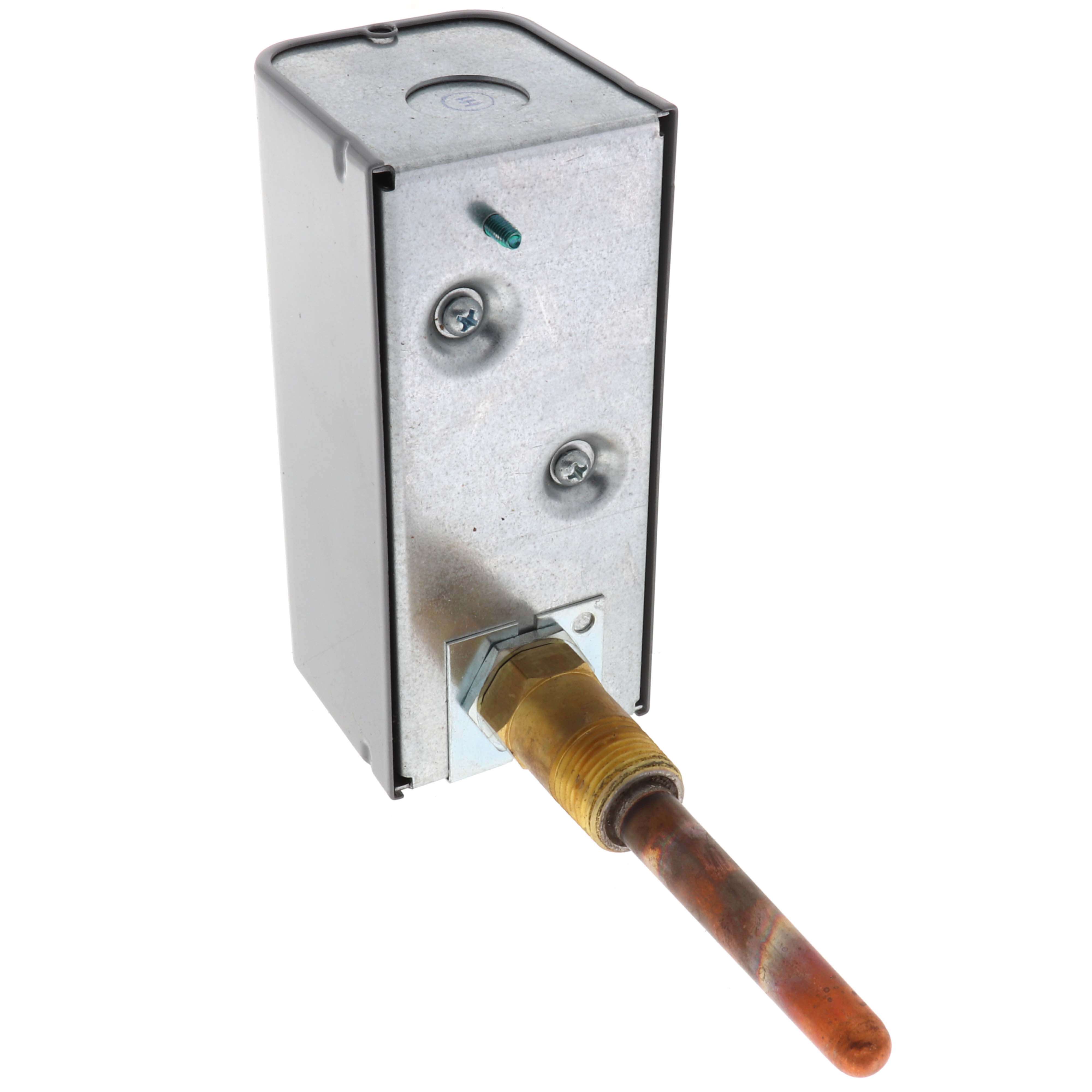

White Rodgers 11B18-101 Immersion Hot Water Control Open On Rise 100-240F Includes 1/2 Standard Shank Well

Product Description

The White Rodgers 11B18-101 is an immersion hot water control designed to operate on a temperature range of one hundred to two hundred forty degrees Fahrenheit. This control opens on rise and includes a half-inch standard shank well for efficient installation. Suitable for both vertical and horizontal mounting, it provides versatility in various applications.

• Temperature range of 100-240 degrees Fahrenheit
• Includes a 1/2 inch standard shank well
• Adjustable differential from 5 to 45 degrees Fahrenheit

Product Highlights

This immersion control is ideal for heating systems, providing reliable temperature regulation in hot water applications.

Product Information

Standard Information

• Brand: White Rodgers
• MPN: 11B18-101

Technical Specifications

• Item Number: 11B18-101
• Temperature Range: 100°F to 240°F
• Differential: Adjustable, 5°F to 45°F
• Switch Action: SPST (contacts break on temp rise)
• Mounting Orientation: Vertical or Horizontal
• Well Included: Yes, 1/2 NPT
• Electrical Rating: 7A @ 240V, 14A @ 120V
