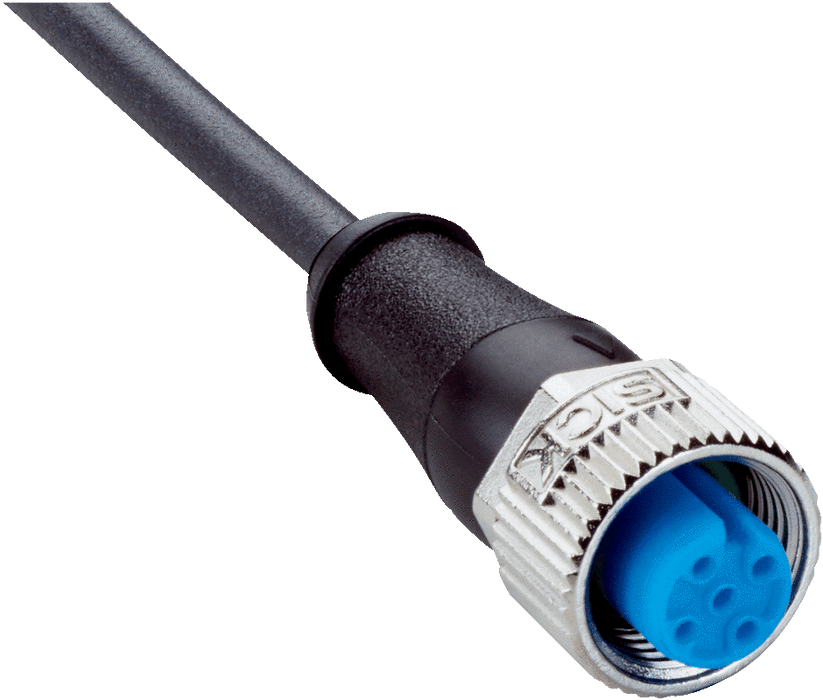

Imbera 2095620 Sensor Actuator Cable Female Connector M12 5-pin Straight 15m

Product Description

The Imbera Sensor Actuator Cable, model 2095620, is designed for use with oils, coolants, and lubricants. This cable features a female connector with an M12 five-pin straight connection. It offers an open cable end and is fifteen meters in length, making it suitable for various applications.

• Compatible with oils, coolants, and lubricants
• Length of fifteen meters for flexible installation
• IP65/IP66K/IP67 enclosure rating for protection against dust and water

Product Highlights

This sensor actuator cable is ideal for use in environments where reliable connectivity and durability are essential.

Product Information

Standard Information

• Manufacturer: SICK - Germany
• Part Number: 2095620 YF2A15-150UB5XLEAX

Technical Specifications

• Head A Connection Type: Female connector, M12 5-pin, straight
• Head B Connection Type: Open cable end
• Cable Length: 15m
• Suitable for Drag Chains: Yes
• LED Indication: No
• Shielding: No
• Cable Material: PUR
• Locking Nut Material: Nickel plated zinc die cast
• Tightening Torque: 0.6Nm
• Enclosure Rating: IP65/IP66K/IP67
• Current Carrying Capacity: 4A
• Rated Voltage: 125V
