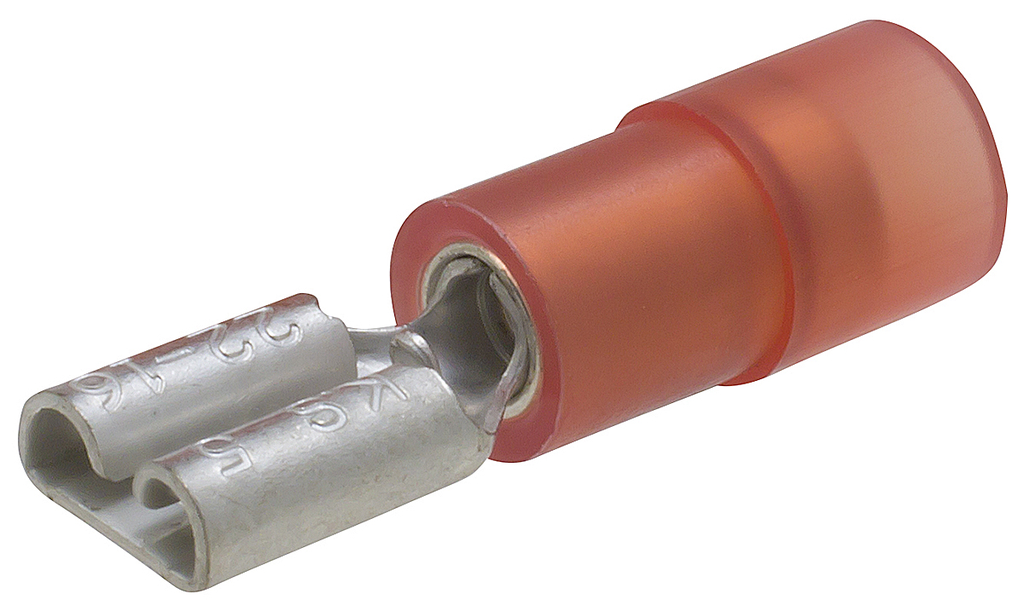

Ilsco VDFT-10-250-P25 CU CMP FEM DI

Product Description

The Ilsco VDFT-10-250-P25 is a copper disconnect terminal designed for reliable electrical connections. This terminal provides a compression connection and is suitable for conductor sizes ranging from ten to twelve AWG. It is made from brass and is UL/cUL 310 listed.

• Compression connection for secure fittings
• Rated for 300 volts for safe usage
• Ideal for 10 Str to 12 Str, and 10 Sol to 12 Sol

Product Highlights

The VDFT-10-250-P25 is perfect for electrical applications requiring a disconnect terminal that allows easy connectivity and disconnection. The vinyl insulation and electro-tin plating enhance durability and conductivity.

Product Information

Standard Information

• Brand: Ilsco
• MPN: VDFT-10-250-P25

Technical Specifications

• Material: Brass
• Insulation Material: Vinyl
• Voltage Rating: 300 Volt
• Temperature Rating: 75 degrees C
• Tab Size: 1/4 x 0.032 in
• Number of Conductors: 1
• Length: 0.925 inch
• Width: 0.26 inch
• Height: 2.88 inch
