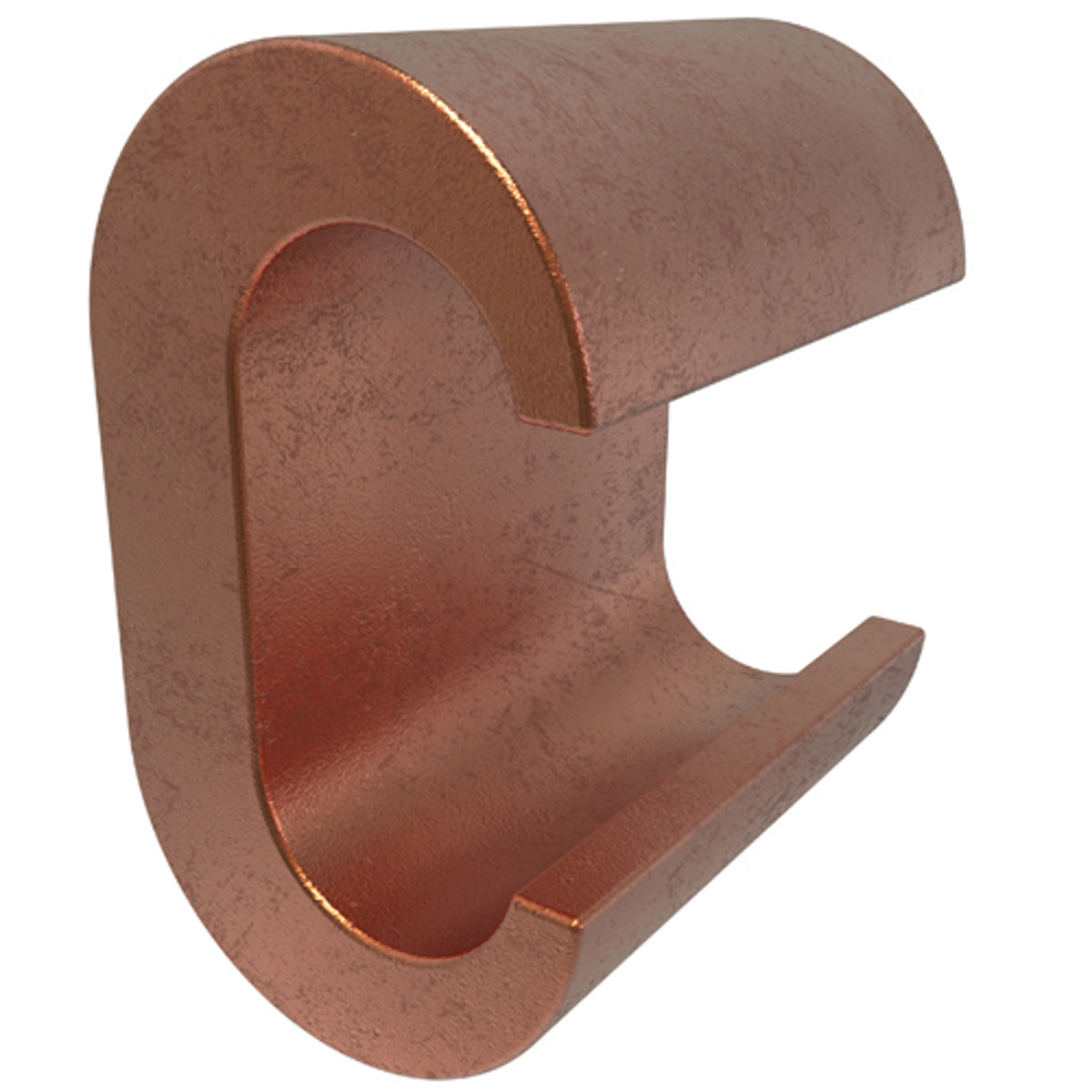

ILSCO ULT-7-Z Permaground Copper Grounding C Crimp, Main Conductor Range 2 Str-2 Sol, Tap Range 2 Str-2 Sol, UL, CSA

Product Description

The ILSCO ULT-7-Z is a copper grounding C crimp connector designed for effective wire termination. This product meets the standards for grounding and bonding applications. It is suitable for a main conductor size of two American Wire Gauge (AWG) and offers a tap range of two AWG as well. The ULT-7-Z is ideal for use in circuits rated at 35 kV or less.

• Manufactured from high-strength copper alloy for maximum conductivity
• Clearly marked with wire size and die index for easy identification
• Suitable for direct burial in earth or concrete

Product Highlights

This connector ensures reliable performance in a variety of applications, offering the flexibility needed in both residential and commercial environments.

Product Information

Standard Information

• Catalog Number: ULT-7-Z
• Brand: ILSCO
• Manufacturer: ECM Industries
• Country of Origin: India

Technical Specifications

• Application: For grounding, bonding, and power for direct burial in earth or concrete
• Conductor Type: Solid/Stranded Copper
• Dimensions: 0.875 inches L x 0.614 inches W x 0.826 inches H
• Main/Run Size: 2 AWG
• Material: Copper
• Mfg Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant
• Tap Size: 2 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: 90 degrees C
