ILSCO ULT-6-Z Permaground Copper Grounding C Crimp, Main Conductor Range 2 Str-2 Sol, Tap Range 4-8 Sol, UL, CSA

Product Description

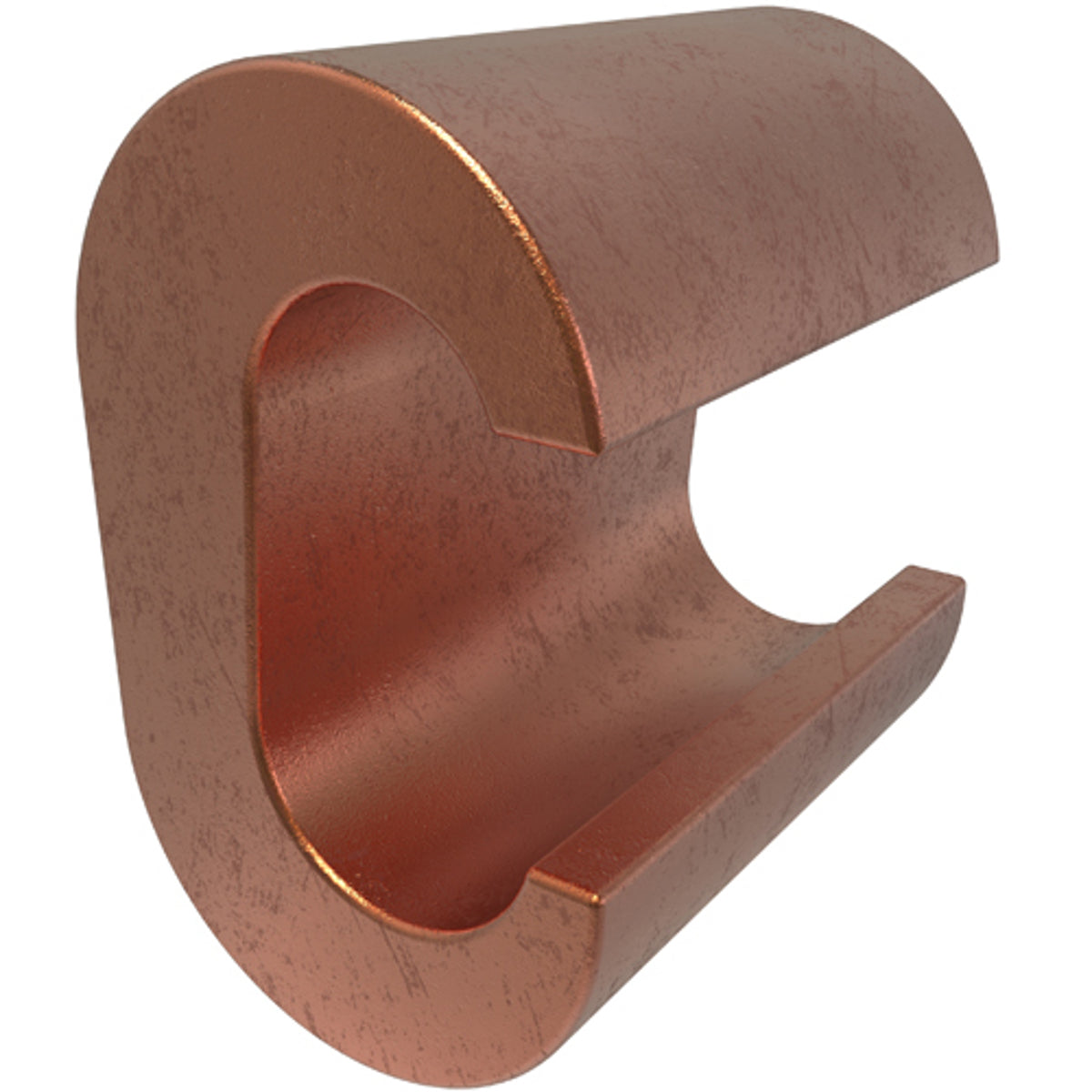

ILSCO ULT-6-Z is a copper grounding crimp connector designed for use with main conductors ranging from two-stranded to two solid wire types, and tap conductors from four to eight solid wire types. It is suitable for circuits rated at thirty-five kilo-volts or less. This connector is UL listed and CSA certified, ensuring compliance with safety standards.

• High strength copper construction for maximum conductivity.
• Direct burial in earth or concrete is permissible.
• Range taking feature helps reduce inventory needs.

Product Highlights

This connector is ideal for grounding applications in various wiring systems, especially in commercial and industrial settings.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: ULT-6-Z
• Country of Origin: United States
• UPC: 783669930795
• Maximum Run Conductor Size: 2 AWG
• Tap Conductor Size: 4 to 8 AWG
• Dimensions: Length 0.99 inches, Width 0.614 inches, Height 0.83 inches
• Die Index: C
