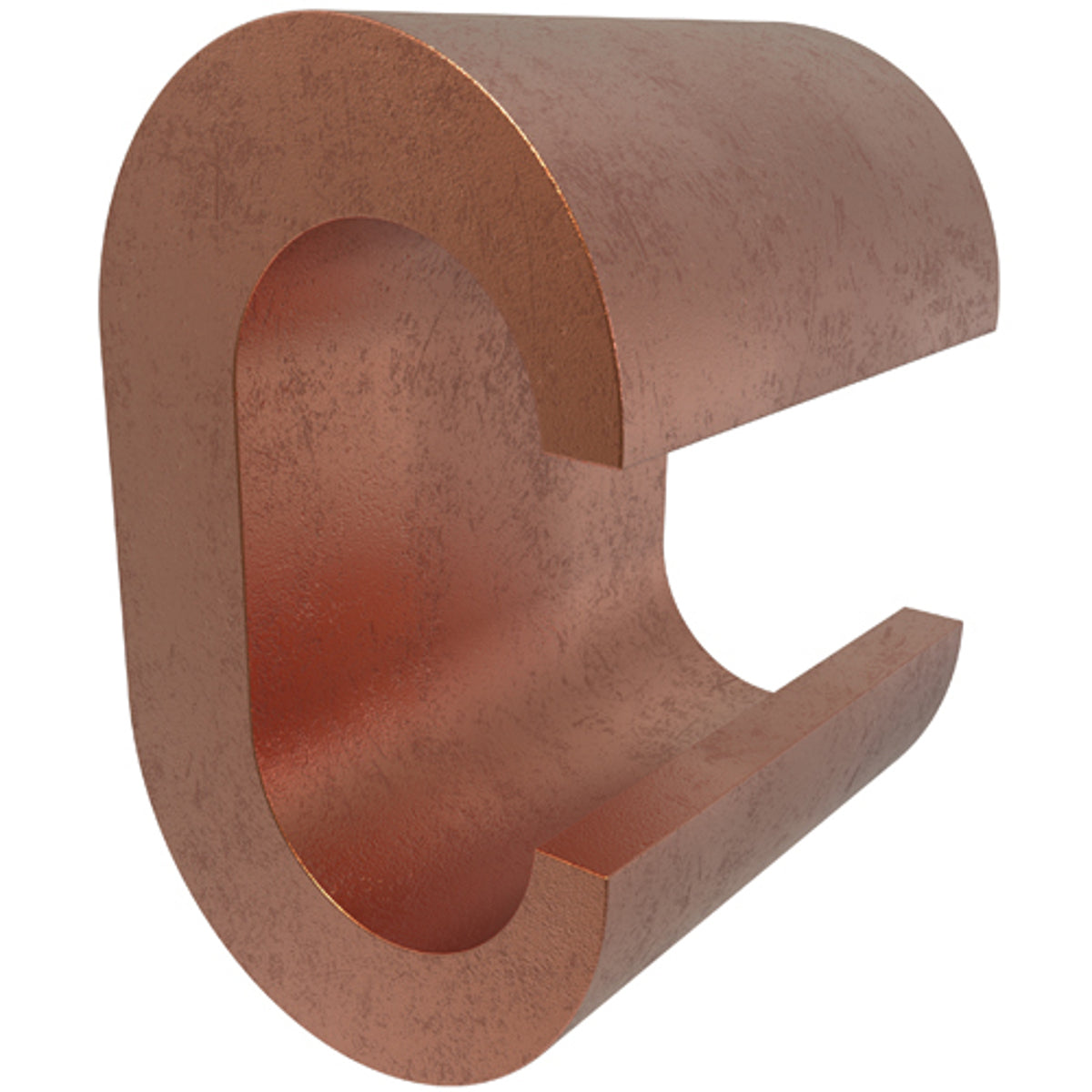

ILSCO ULT-12-Z Permaground Copper Grounding C Crimp, Main Conductor Range 4/0-3/0 Sol, Tap Range 4/0-3/0 Sol

Product Description

The ILSCO ULT-12-Z is a Permaground Copper Grounding C Crimp suitable for main conductor sizes ranging from four aught to three aught stranded wire. This product is designed for tap connections using similar sized conductors, ensuring reliability in electrical systems.

• Designed for use in circuits rated up to thirty-five kilovolts.
• Manufactured from high conductivity copper alloy for optimal performance.
• Suitable for direct burial applications in earth or concrete.

Product Highlights

This crimp connector provides effective grounding solutions in electrical installations, offering reliable connections that can withstand high voltage environments.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: ULT-12-Z
• Maximum Run Conductor Size: 4/0 AWG Stranded
• Minimum Run Conductor Size: 3/0 AWG Stranded
• Body Material: High Strength Copper Alloy
• Conductor Material: Copper
• Approval: UL 453G, UL 486A/B
• Shape: C
• UPC: 783669930832
