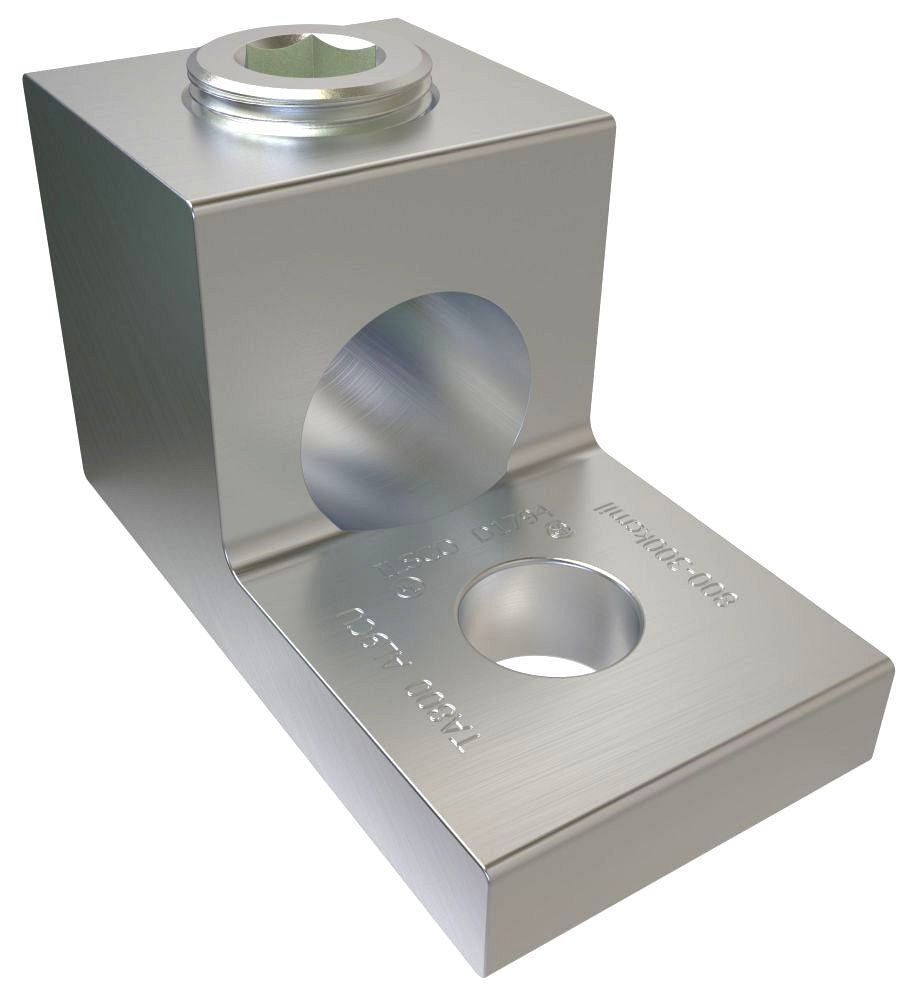

Ilsco TA-800 Aluminum Mechanical Lug Conductor Range 800-300 1 Port 1 Hole 5/8in Bolt Size

Product Description

The Ilsco TA-800 is an aluminum mechanical lug designed for conductor ranges of three hundred to eight hundred KCMIL. This lug works for both aluminum and copper conductors. It features one port and one mounting hole with a five-eighths inch bolt size. The product is suitable for various electrical applications and meets UL and CSA standards.

• Conductor range from 300 KCMIL to 800 KCMIL
• Compatible with aluminum and copper conductors
• Electro-tin plated for low contact resistance

Product Highlights

Ideal for use in wiring and electrical connections, ensuring secure and long-lasting connections.

Product Information

Standard Information

• Manufacturer: ILSCO
• Catalog Number: TA-800

Technical Specifications

• Conductor Material: Aluminum/Copper
• Maximum Conductor Size: 800 KCMIL
• Minimum Conductor Size: 300 KCMIL
• Number Of Conductors: 1
• Pad Size: 1-3/4 inches L x 1-3/4 inches W x 1/2 inches thick
• Screw Type: 1/2 inch Hex
• Stud Size: 5/8 inch
• Approval: UL 453G, UL 486A/B, CSA
