Product Description

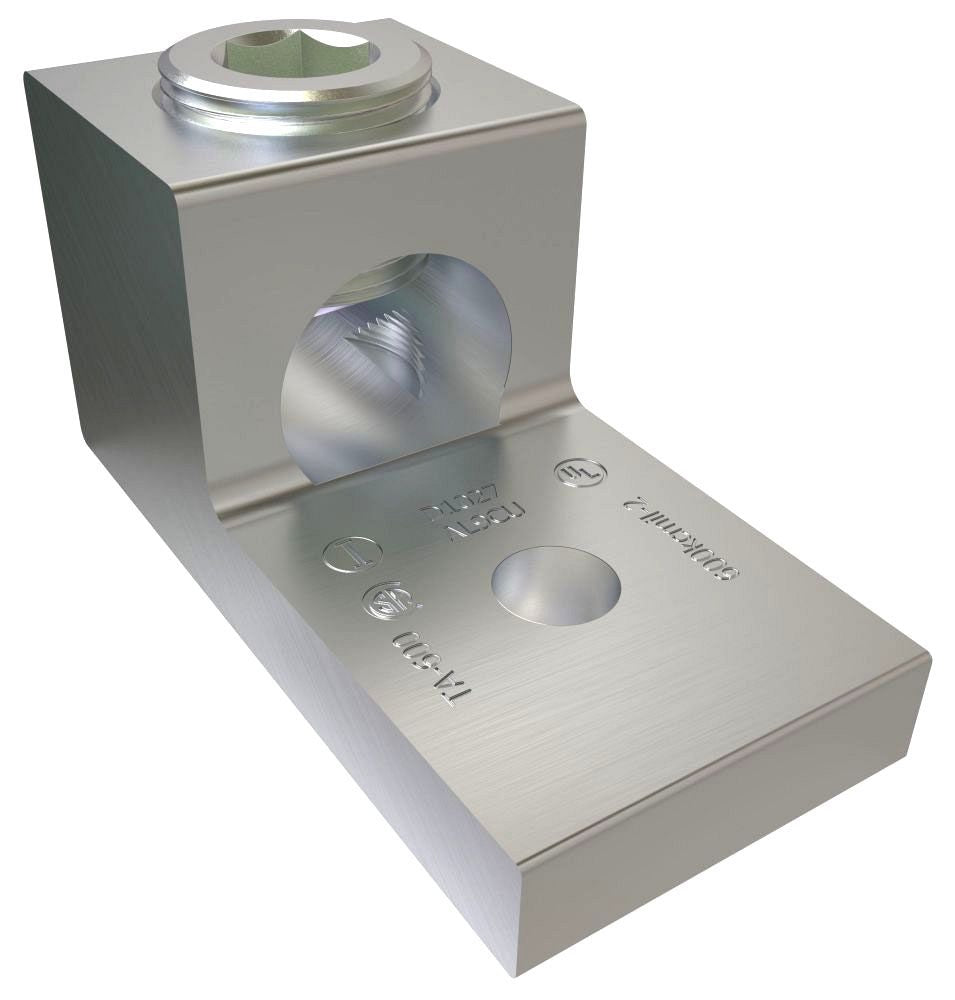

The ILSCO TA-600 Aluminum Mechanical Lug is designed for efficient connection of aluminum or copper conductors. This product supports conductor sizes from two AWG to six hundred KCMIL, ensuring versatility for different applications. The lug features a chamfered wire entry for easy installation and a secure connection.
- Rated for both aluminum and copper conductors
- Manufactured from high-strength 6061-T6 aluminum alloy
- UL and CSA approved
Product Highlights
This mechanical lug is suitable for use in various electrical systems, ensuring reliable connections in both residential and industrial settings.
Product Information
Standard Information
-
Manufacturer: ECM Industries
-
Country of Origin: Mexico
Technical Specifications
-
Catalog Number: TA-600
-
Conductor Size: 2 AWG to 600 kcmil
-
Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
-
Stud Size: 3/8 Inch
-
Number of Bolt Holes: 1
-
Voltage Rating: 2000 VAC
-
Temperature Rating: 90 deg C
