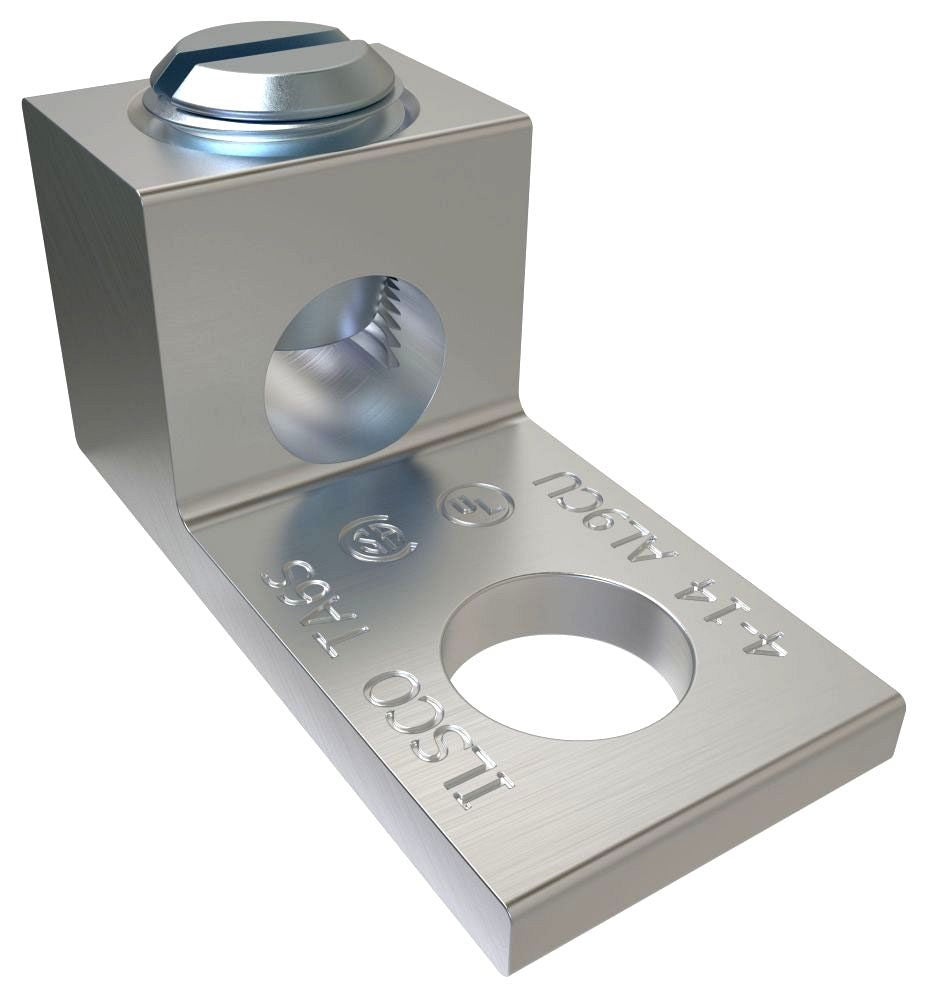

ILSCO TA-6-S Aluminum Mechanical Lug, Conductor Range 4-14, 1 Port, 1 Hole, 1/4in Bolt Size

Product Description

The ILSCO TA-6-S is an aluminum mechanical lug designed for conductors ranging from fourteen to four AWG. This lug features a one-port design and a single hole for ease of installation. It is suitable for applications in circuits rated thirty-five kilovolts or less. This mechanical lug provides low contact resistance and application versatility.

• One-port design
• Conductor range from fourteen to four AWG
• For use in circuits rated thirty-five kilovolts or less

Product Highlights

This product offers robust connections for electrical installations, ensuring safe and reliable performance. It is compliant with UL standards and uses electro-tin plated aluminum alloy for enhanced conductivity.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Catalog Number: TA-6-S
• Country of Origin: Mexico
• UPC: 783669888386
• Stud Size: 1/4 in.
• Maximum Conductor Size: 4 AWG
• Minimum Conductor Size: 14 AWG
• Pad Size: 11/16 inches L x 3/8 inches W x 3/32 inches Thk
• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
