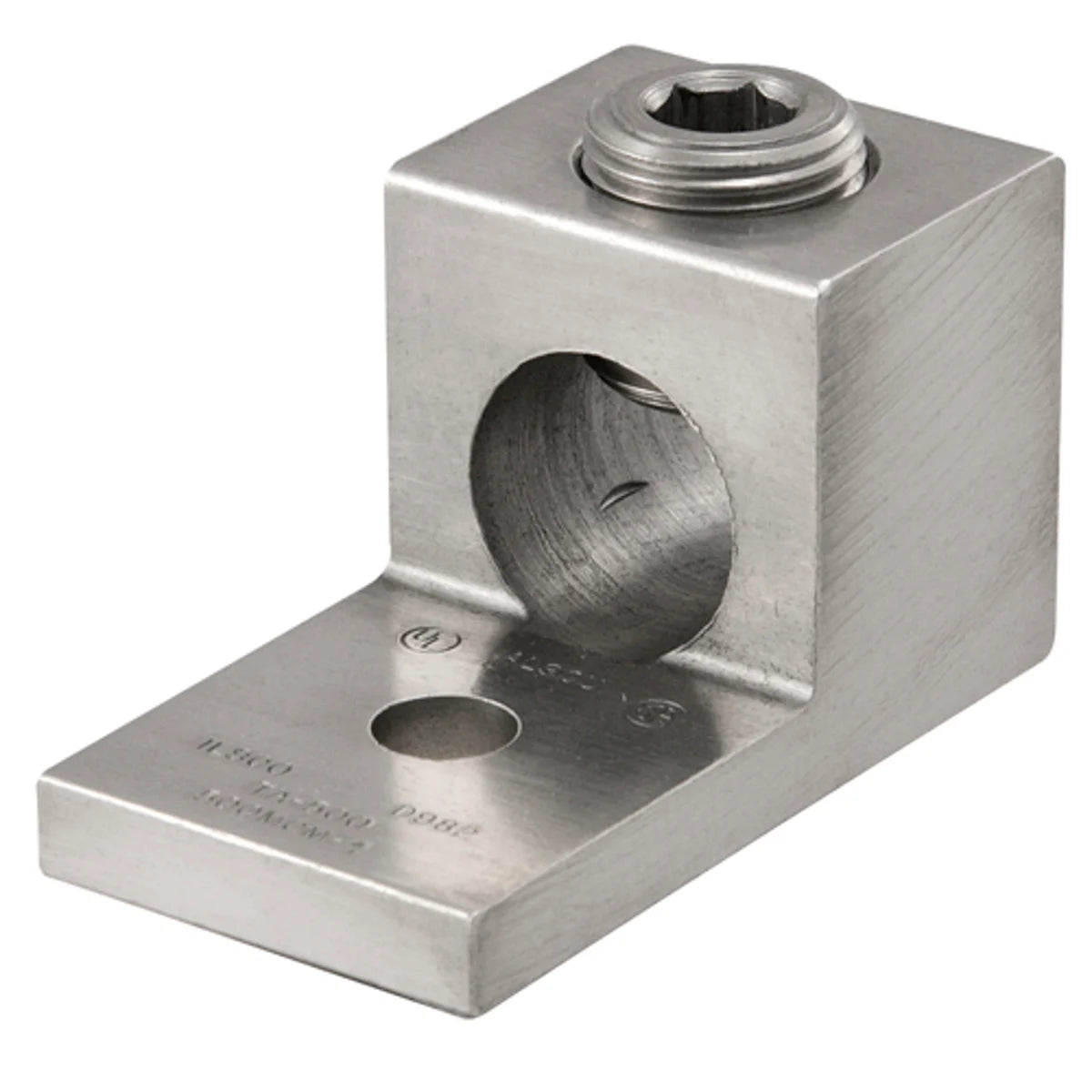

ILSCO TA-500 Aluminum Mechanical Lug Conductor Range 500-4 1 Port 1 Hole 3/8in Bolt Size

Brand: ILSCO
SKU: TA-500
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$23.83
$23.83
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

ILSCO TA-500 is a mechanical lug designed for aluminum and copper conductors ranging from four AWG to five hundred KCMIL. This product features a single port with one hole and a three eighths inch bolt size. It is suitable for various high voltage applications rated at thirty-five kilovolts or less.

  • UL and CSA approved for safety and reliability.
  • Made from electro-tin plated high strength aluminum alloy.
  • Easy setup and versatile application for various wiring needs.

Product Highlights

This lug offers low contact resistance and adaptability for different conductor sizes, ensuring effective and stable connections in electrical systems.

Product Information

Standard Information

  • Manufacturer: ECM Industries
  • UPC: 783669891010

Technical Specifications

  • Catalog Number: TA-500
  • Conductor Material: Aluminum/Copper
  • Maximum Conductor Size: 500 KCMIL
  • Minimum Conductor Size: 4 AWG
  • Number of Conductors: 1
  • Number of Pad Holes: 1
  • Pad Size: 1-19/32 inches L x 1-1/2 inches W x 5/16 inches thick
  • Screw Type: 3/8 inch Hex
  • Stud Size: 3/8 inch
