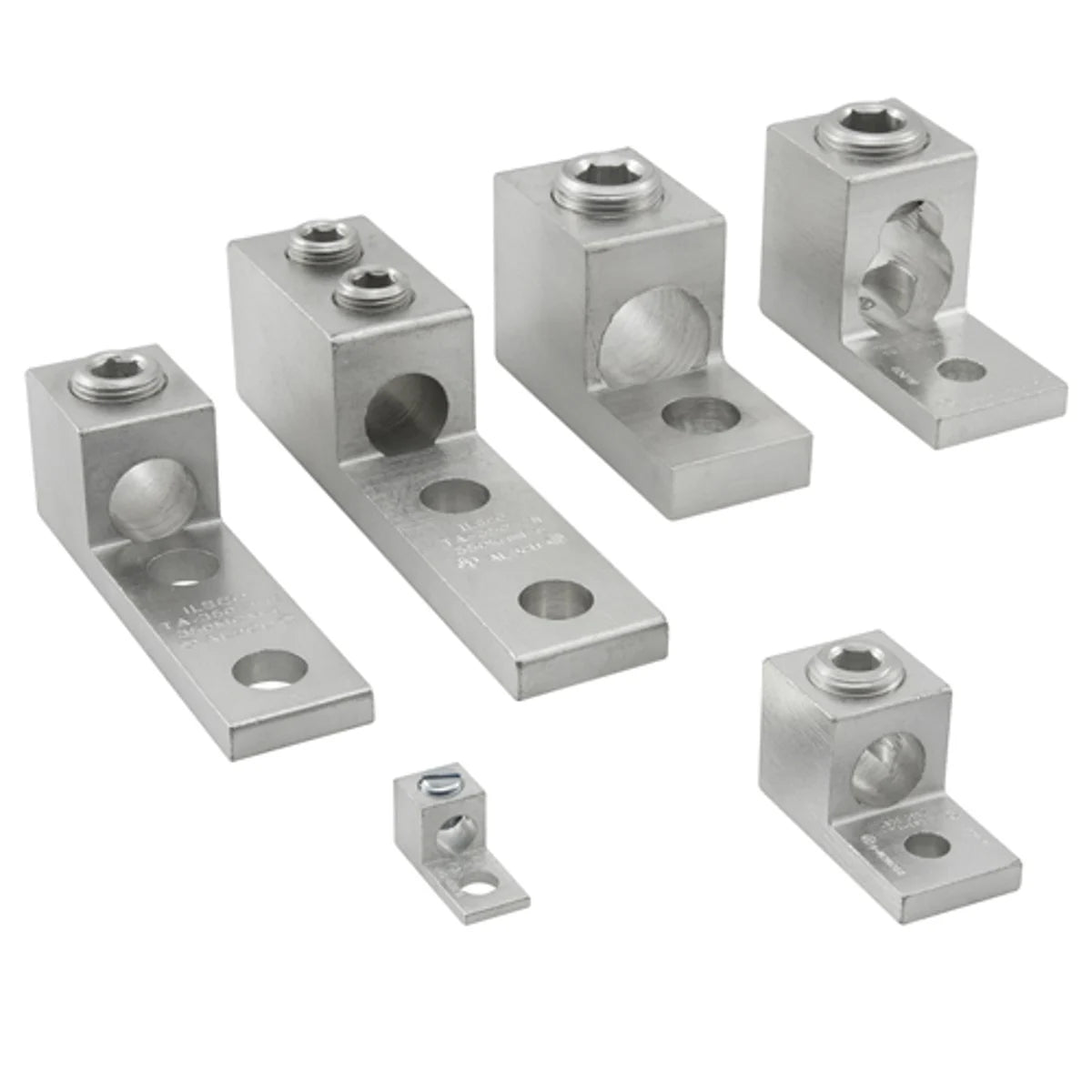

ILSCO TA-350 Aluminum Mechanical Lug Conductor Range 350-6 1 Port 1 Hole 3/8in Bolt Size

Product Description

The ILSCO TA-350 is an aluminum mechanical lug designed for a conductor range of three hundred fifty to six. This product features one port and one hole with a bolt size of three-eighths inch. It is UL and CSA approved, making it suitable for various electrical applications.

• Conductor range from 350 KCMIL to 6 AWG
• Single port and hole design for easy installation
• Made of durable aluminum with electro-tin plating

Product Highlights

This lug is versatile and provides reliable electrical connections for power distribution and various applications in the electrical trade.

Product Information

Standard Information

• Catalog Number: TA-350
• Brand: ILSCO

Technical Specifications

• Conductor Material: Aluminum/Copper
• Maximum Conductor Size: 350 KCMIL
• Minimum Conductor Size: 6 AWG
• Number of Conductors: 1
• Number of Pad Holes: 1
• Pad Size: 1-1/8 inch L x 1-1/8 inch W x 1/4 inch thick
• Screw Type: 3/8 inch Hex
• Stud Size: 3/8 inch
