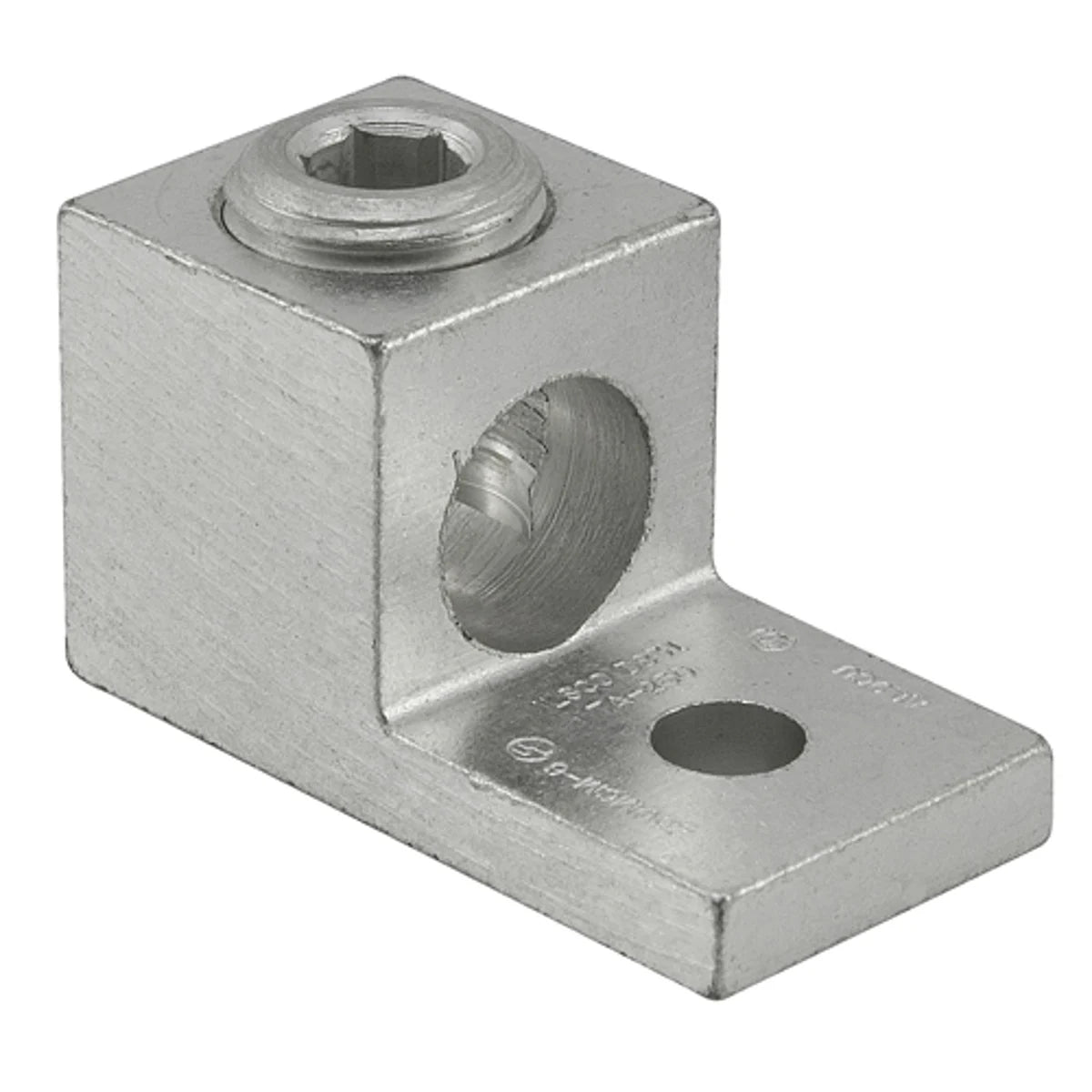

ILSCO TA-250 Aluminum Mechanical Lug, Conductor Range 250-6, 1 Port, 1 Hole, 5/16in Bolt Size, Tin Plated

Brand: ILSCO
SKU: TA-250
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$17.99
$17.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The ILSCO TA-250 is an aluminum mechanical lug designed for reliable electrical connections. This lug accommodates conductor sizes ranging from six AWG to two hundred fifty KCMIL, making it versatile for various applications. Its single hole and five-sixteenth inch bolt size ensure secure installation in high-performance settings.

  • Conductor range: 250 KCMIL to 6 AWG
  • Suitable for aluminum and copper conductors
  • UL and CSA approved for safety

Product Highlights

The TA-250 provides low contact resistance, ensuring efficient operation. It is ideal for circuits rated at thirty-five KV or less, requiring appropriate insulation techniques. This lug's construction enables ease of installation and application versatility.

Product Information

Standard Information

  • Brand: ILSCO
  • Manufacturer: ECM Industries

Technical Specifications

  • Catalog Number: TA-250
  • Conductor Material: Aluminum/Copper
  • Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
  • Maximum Conductor Size: 250 KCMIL
  • Minimum Conductor Size: 6 AWG
  • Number of Conductors: 1
  • Pad Size: 1 inch L x 1 inch W x 1/4 inch Thk
  • Screw Type: 5/16 inch Hex
  • Stud Size: 5/16 inch
