Product Description

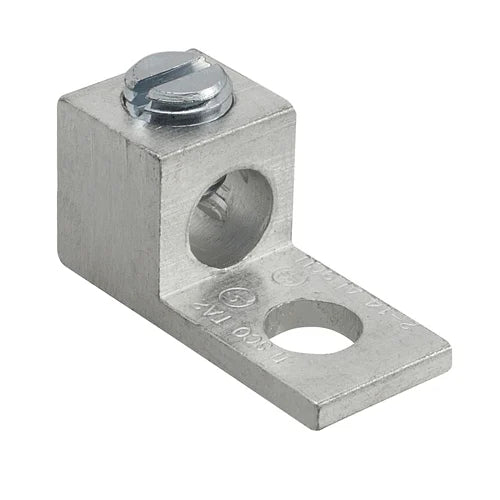

The ILSCO TA-2 is an aluminum mechanical lug suitable for conductor ranges from two AWG to fourteen AWG. It features one port and one bolt hole with a quarter-inch bolt size.
- Rated for use with aluminum and copper conductors.
- Designed to provide low contact resistance.
- Meets UL and CSA standards for electrical connections.
Product Highlights
The TA-2 is ideal for electrical installations requiring reliable and efficient connections.
Product Information
Standard Information
-
Brand: ILSCO
-
Manufacturer: ECM Industries
Technical Specifications
-
Catalog Number: TA-2
-
Conductor Material: Aluminum/Copper
-
Maximum Conductor Size: 2 AWG
-
Minimum Conductor Size: 14 AWG
-
Pad Size: 11/16 inches L x 1/2 inches W x 7/64 inches Thk
-
Stud Size: 1/4 inches
-
Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
-
Approval: UL 453G, UL 486A/B, CSA
