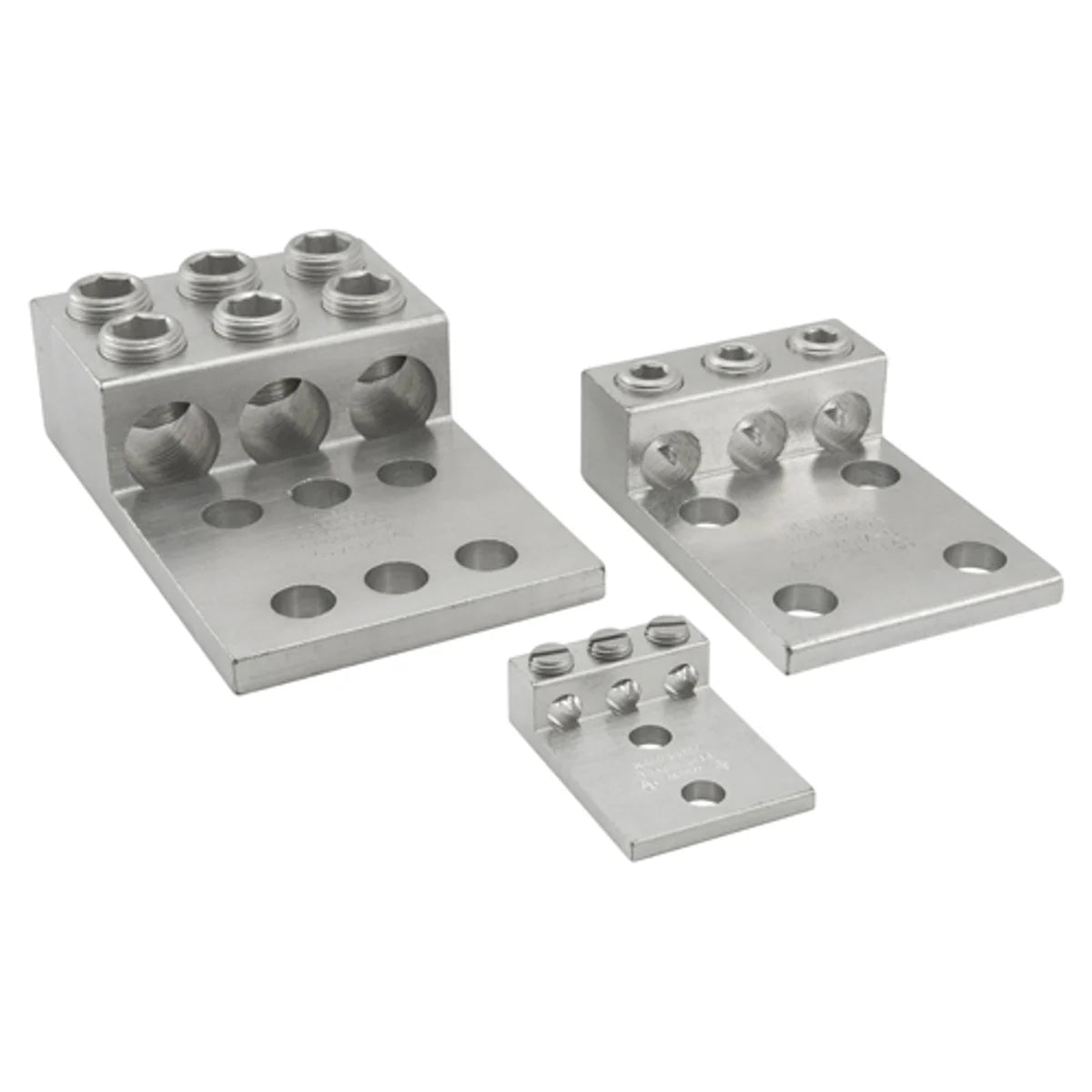

ILSCO T3A2-2 Aluminum Mechanical Lug, Conductor Range 2-14, 3 Ports, 2 Holes, 5/16in Bolt Size

Product Description

ILSCO T3A2-2 is an aluminum mechanical lug designed for conductor range from two to fourteen AWG. This lug features three ports and two mounting holes with a bolt size of five-sixteenths of an inch. It is suitable for both copper and aluminum conductors, making it versatile for various electrical connections.

• Conductor range of two to fourteen AWG
• Three ports for easy connection
• Compatible with both copper and aluminum conductors

Product Highlights

The ILSCO T3A2-2 offers a reliable solution for mechanical connections in electrical systems, ensuring low contact resistance and high performance. Its robust construction ensures durability and effectiveness in various settings.

Product Information

Standard Information

• Catalog Number: T3A2-2
• Manufacturer: ECM Industries

Technical Specifications

• Conductor Size: 14 to 2 AWG
• Conductor Type: Aluminum/Copper
• Dimensions: 2.187 inches long x 1.594 inches wide x 0.625 inches high
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 3
• Stud Size: 5/16 inches
• Mounting Hole Spacing: 7/8 inches
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 degrees C
