Ilsco SPAR-250 al mec 250-6 t ul csa ins

Product Description

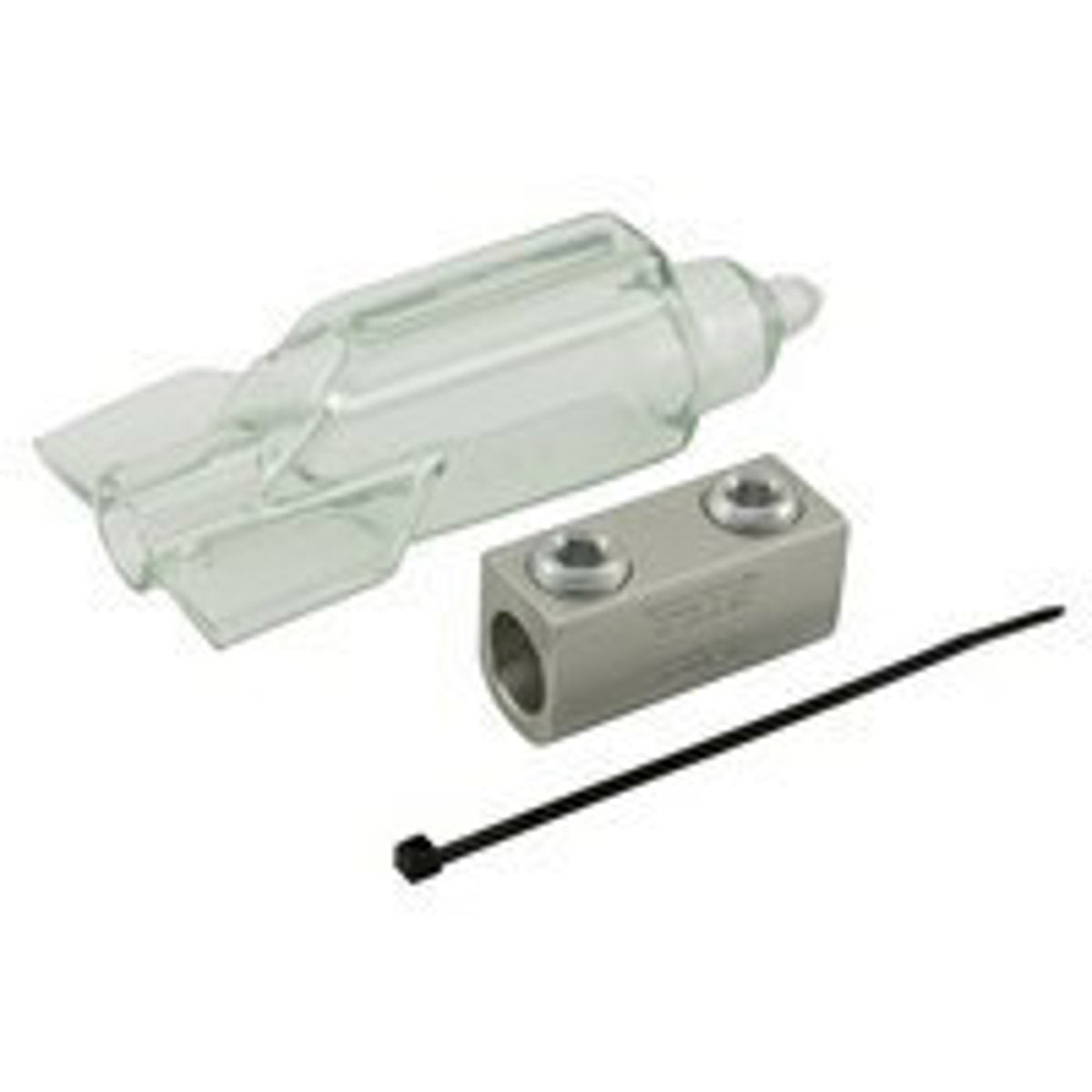

The ILSCO SPAR-250 AL MEC 250-6 T UL CSA INS is a mechanical connector. It is dual rated and suitable for use with aluminum and copper conductors ranging from 6 AWG to 250 kcmil. The connector features a tin finish and is insulated with plastisol.

• Dual Rated
• Range adjustable trim to fit tip ensures proper fit of cover to cable
• Unique shape and compact 'rocket' design provides ease of installation, versatility and serviceability of connections made in tight spaces

Product Highlights

The ILSCO SPAR-250 is ideal for creating reliable splices and reductions in electrical connections, especially in confined spaces.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: SPAR-250
• Country of Origin: MX

Technical Specifications

• Catalog Number: SPAR-250
• Manufacturer: ECM Industries
• Brand: ILSCO
• UPC: 783669857283
• GTIN: 00783669857283
• Connection: Mechanical
• Contains DE-OX : No
• Number of Conductors: 2
• Number of Poles: 1
• Number of Ports Tap: 1
• Wire Orientation: Parallel
• Drive Size Main: 5/16
• Drive Type Main: Internal Hex
• Height (IN): 1.431
• Length (IN): 5.81
• Width (IN): 2.53
• Conductor Type: Stranded
• Conductor Material: Aluminum
• Connector Finish: Tin
• Insulation: Plastisol
• Wire Binding Hardware Finish: Tin
• Wire Binding Hardware Material: Aluminum
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 5/8
• Wire Binding Torque: 275
• Temperature Rating: 257 degree fahrenheit
• Conductor Range AL Solid (Secondary, tap, load): NA
• Conductor Range AL Stranded (Primary, run, main, line): 250 kcmil - 6 Str
• Conductor Range AL Stranded (Secondary, tap, load): 250 kcmil - 6 Str
• Conductor Range CU Solid (Primary, run, main, line): NA
• Conductor Range CU Solid (Secondary, tap, load): NA
• Conductor Range CU Stranded (Primary, run, main, line): 250 kcmil - 6 Str
• Conductor Range CU Stranded (Secondary, tap, load): 250 kcmil - 6 Str
• Conductor Range AL Solid (Primary, run, main, line): NA
• Voltage Rating: 600 V
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207
• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 3
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-1
• Conductor Size: 6 AWG to 250 kcmil
• Country of Origin: MX
• Finish: Tin Plated
• Manufacturer Name: ECM Industries
• Specifications: 5/16 in Hex
• Type: Type SPAR Dual Rated Insulated
• UNSPSC: 39121408
• Contact Material: Aluminum
• Specification Met: UL
• Model: SPAR-250
• Number of Items: 1
• Part Number: SPAR-250
• Unit Count: 1 Count
