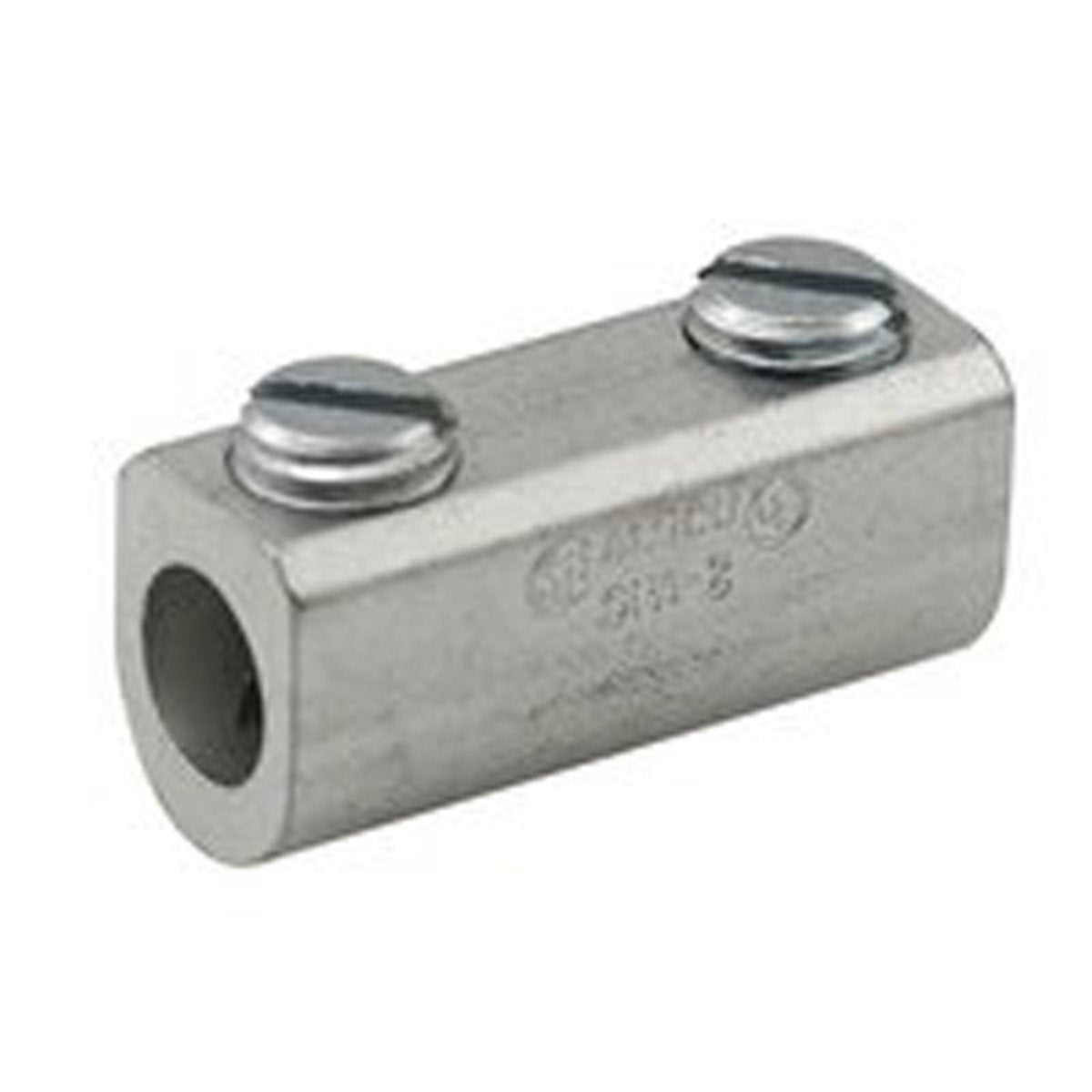

ILSCO SPA-500 Aluminum Splicer/Reducer Dual Rated Conductor Range 500-4 Tin Plated UL CSA

Product Description

The ILSCO SPA-500 is an aluminum splicer and reducer designed for dual-rated conductor ranges of five hundred to four AWG. This product is electro-tin plated to enhance its durability and offer low contact resistance. It is suitable for use with both copper and aluminum conductors, providing flexibility in various electrical applications. The splicer is built for ease of installation and reliability, ensuring that all wire strands are held securely.

• Electro-tin plated for enhanced corrosion resistance
• Compatible with copper and aluminum conductors
• Provides low contact resistance for optimal performance

Product Highlights

The SPA-500 supports a maximum conductor size of five hundred KCMIL and a minimum of four AWG. It features a hex size of three-eighths inch and two screws for secure installation.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: SPA-500
• Body Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Conductor Material: Aluminum/Copper
• Insulation Type: Non-Insulated
• Hex Size: 3/8 Inch
• Maximum Conductor Size: 500 KCMIL
• Minimum Conductor Size: 4 AWG
• Number Of Screws: 2
• Product UPC: 783669857085
