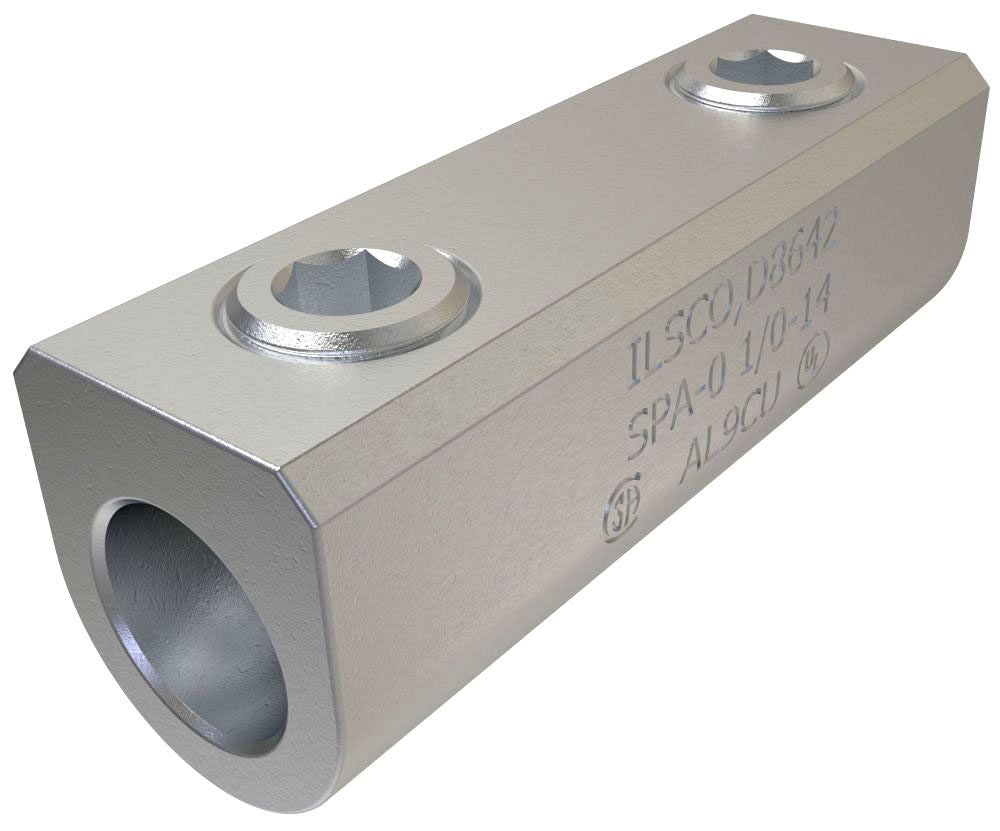

ILSCO SPA-0 Aluminum Splicer/Reducer Dual Rated Conductor Range 1/0-14 Tin Plated UL CSA

Product Description

The ILSCO SPA-0 is a dual-rated aluminum splicer/reducer designed for conductor sizes ranging from one odd to fourteen AWG. This product ensures reliable connections in wire termination applications. Made from high-strength aluminum alloy, it is suitable for both copper and aluminum conductors.

• Dual rated for copper and aluminum conductors
• Electro-tin plated for corrosion resistance
• Designed for ease of installation

Product Highlights

The ILSCO SPA-0 splicer minimizes contact resistance and improves the connection's longevity. It features a chamfered wire entry and rounded bottoms, allowing for secure wire placement and holding. This makes it suitable for various electrical applications in residential, commercial, and industrial settings.

Product Information

Standard Information

• Brand: ILSCO
• Manufactured by: ECM Industries

Technical Specifications

• Catalog Number: SPA-0
• Maximum Conductor Size: 1/0 AWG
• Minimum Conductor Size: 14 AWG
• Body Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Hex Size: 3/16 Inch
• Screw Size: 7/16 Inch Dia
• Number of Screws: 2
• Insulation Type: Non-Insulated
