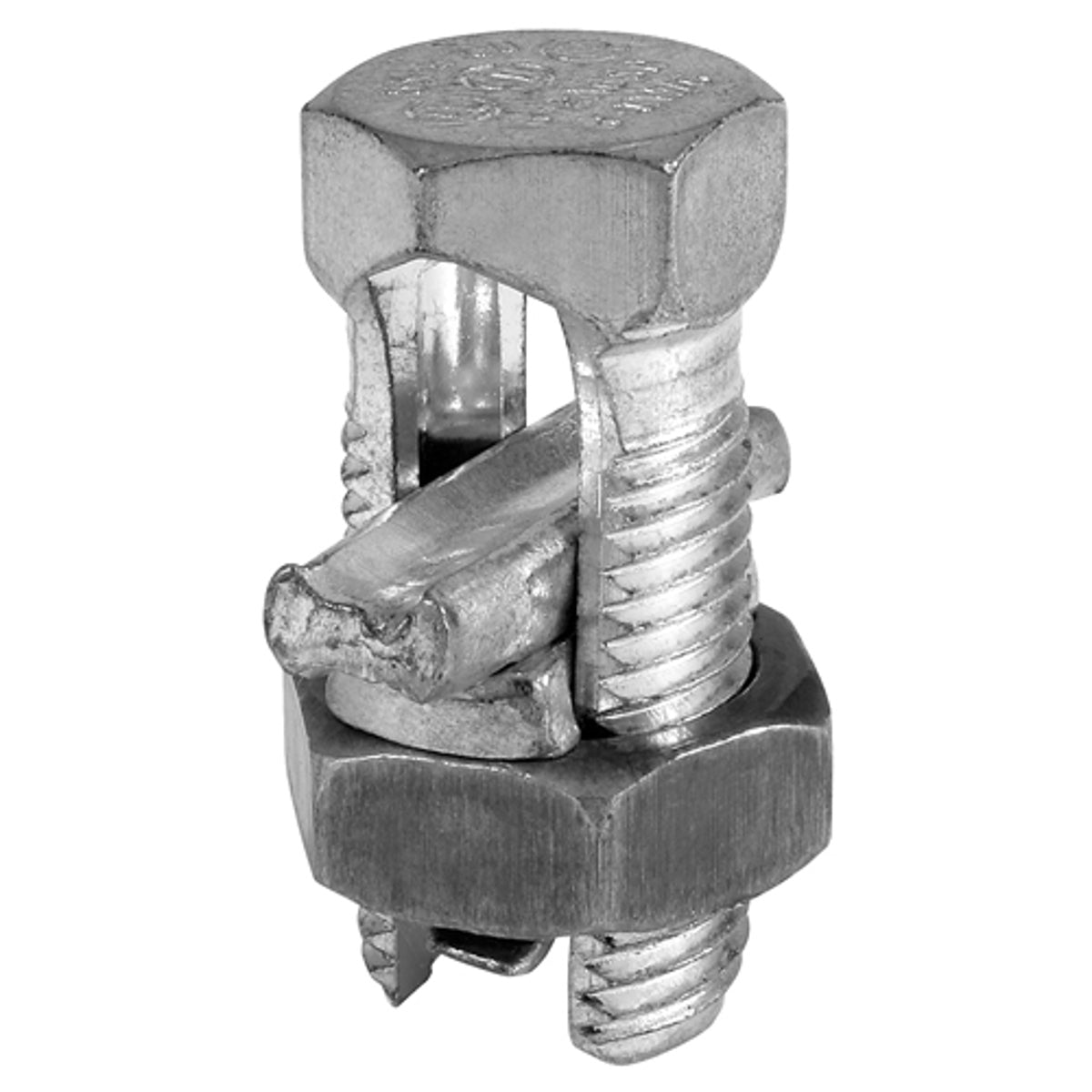

ILSCO SK-6 Copper Split Bolt Dual Rated Conductor Range for Equal Main & Tap 8-14 Tin Plated UL CSA

Product Description

The ILSCO SK-6 is a copper split bolt connector designed for dual-rated applications. It is suitable for equal main and tap conductors ranging from eight to fourteen AWG. This split bolt features a tin plating that aids in reducing corrosion and maintaining conductivity.

• Compatible with solid and stranded conductors.
• UL 486A/B listed.
• Manufactured in the United States.

Product Highlights

Utilized in electrical connections for reliable mechanical joints, the SK-6 is designed for easy installation and efficient performance in various electrical systems.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: SK-6
• UPC: 783669819007
• Country of Origin: United States
• Material: Copper
• Approval: UL 460C, CSA
• Maximum Tap Conductor Size: 8 AWG Stranded
• Minimum Run Conductor Size: 14 AWG Stranded
• Conductor Range: Copper/Aluminum Primary 8 Str - 14 Str
