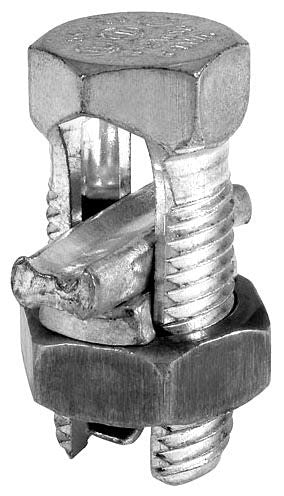

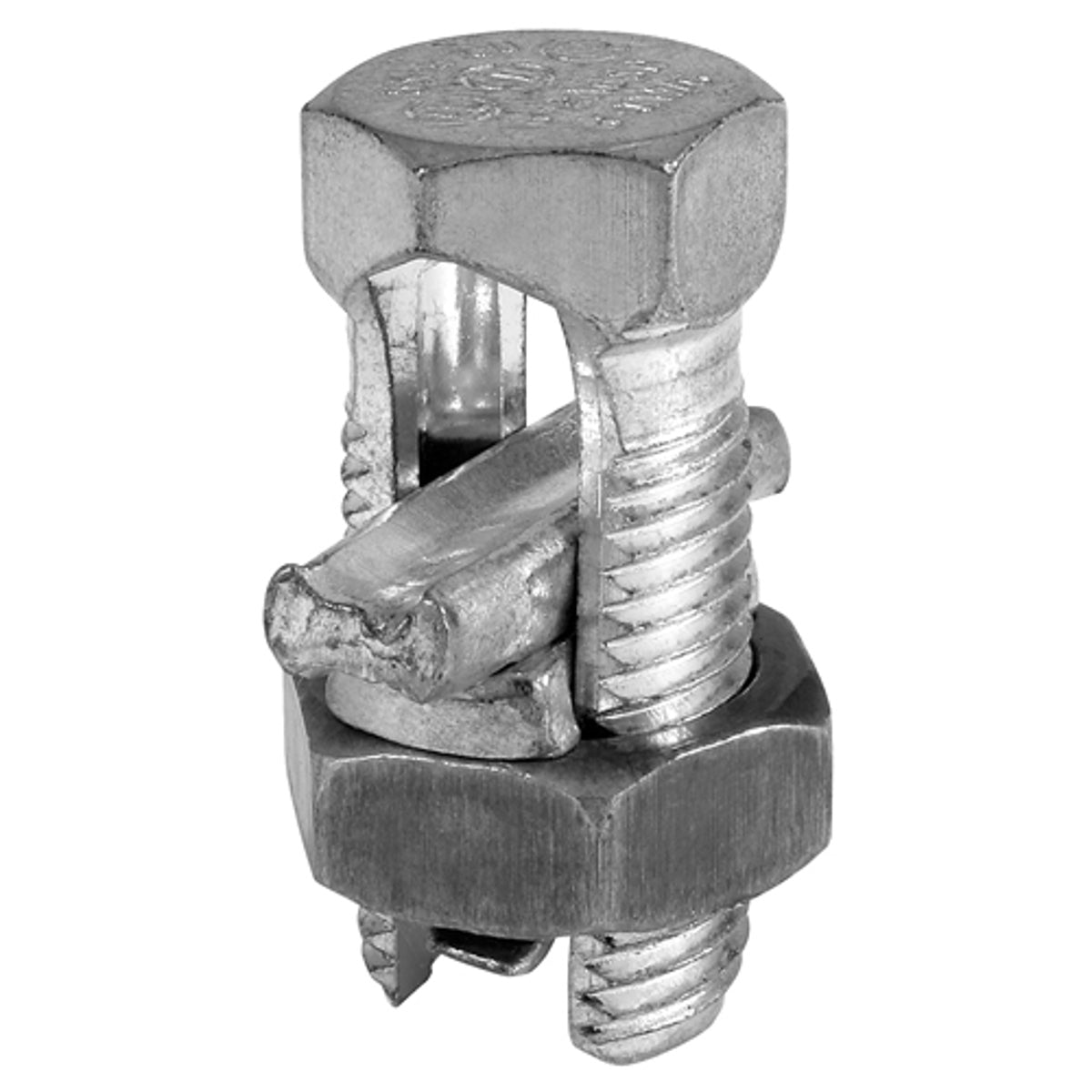

Ilsco SK-4 Copper Split Bolt, Dual Rated, Conductor Range for Equal Main & Tap 6-10, Tin Plated

Product Description

Ilsco SK-4 is a copper split bolt connector designed for a conductor range of six to ten. It features a mechanical connection and is dual rated for copper and aluminum conductors. The connector is tin plated and meets UL 486A/B standards, making it suitable for various applications in electrical systems.

• Mechanical connection for reliable performance
• UL and CSA listings for safety and compliance
• Suitable for conductor sizes from six to ten

Product Highlights

This connector can handle both solid and stranded wires, enhancing versatility in installations.

Product Information

Standard Information

• Brand: Ilsco
• Catalog Number: SK-4

Technical Specifications

• Conductor Range: 6 Str - 10 Str
• Material: Copper
• Finish: Tin Plated
• Voltage Rating: 35 Volt
• Installation Type: Mechanical
• Temperature Rating: 90 degrees C
• Dimensions: Width 0.79 in, Height 0.69 in, Length 1.27 in
• Weight: 0.078 lb
