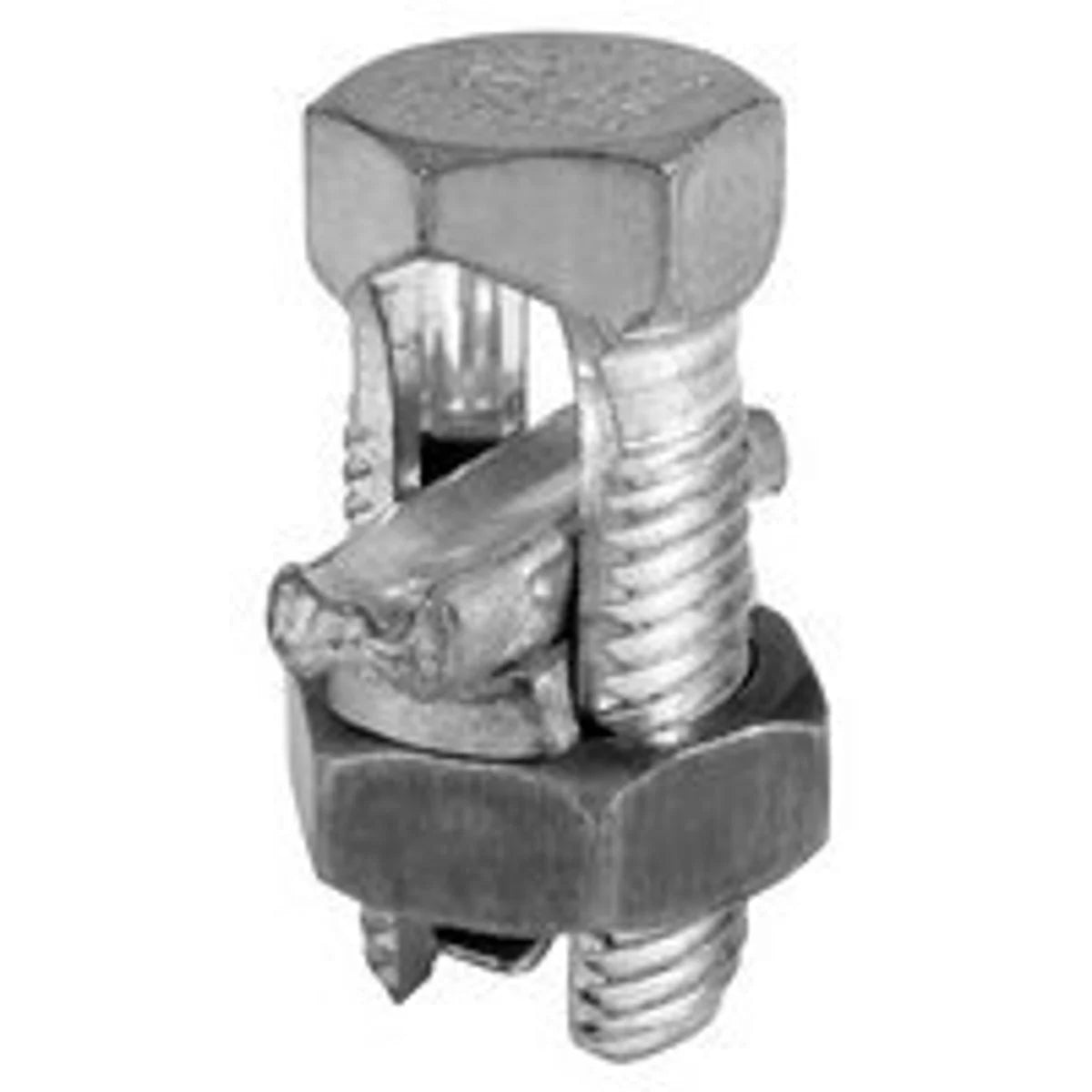

ILSCO SK-3 CU MEC(R)8SOL-2SOL(T)8SOLT ULCSA REA

Product Description

ILSCO offers the SK-3 CU MEC(R)8SOL-2SOL(T)8SOLT ULCSA REA connector. This product accommodates a range of conductor sizes and types, enhancing your wiring projects. The design focuses on secure connections for various applications.

• Suitable for solid, compact, compressed, concentric, and ACSR conductors
• Manufactured from high strength copper alloy for reliable performance
• Electro-tin plated to reduce contact resistance

Product Highlights

The ILSCO SK-3 connector is a versatile choice for electrical professionals, effectively handling conductor ranges from eight to two AWG.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Catalog Number: SK-3
• Conductor Size: 8 to 2 AWG
• Conductor Type: ACSR/Copper/Compact/Compressed/Concentric/Solid
• Country of Origin: US
• Material: Copper Alloy
• Finish: Electro-Tin Plated
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 degrees C
• Mfg Standards/Approvals: CSA Certified, RoHS Compliant, UL E12822 Listed
