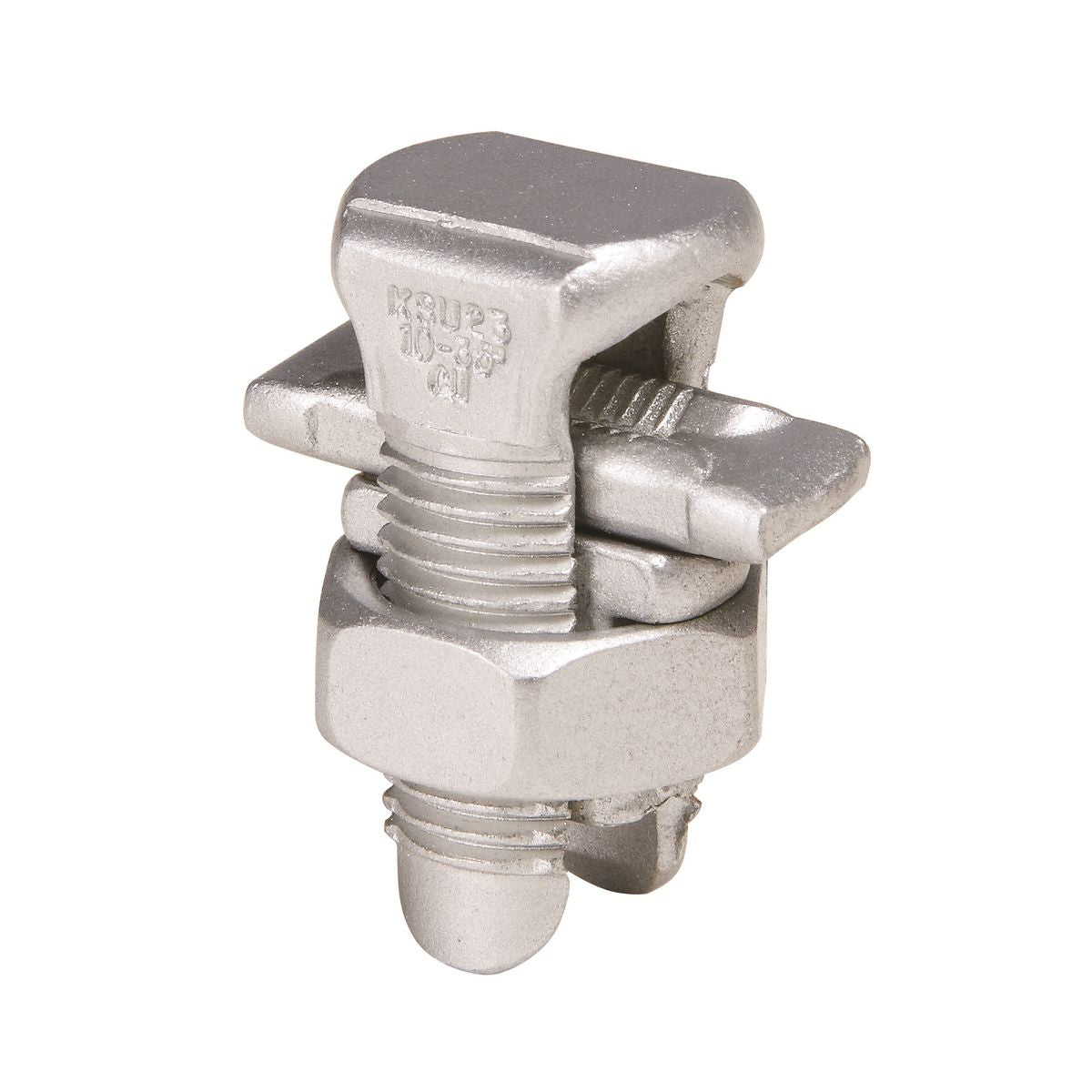

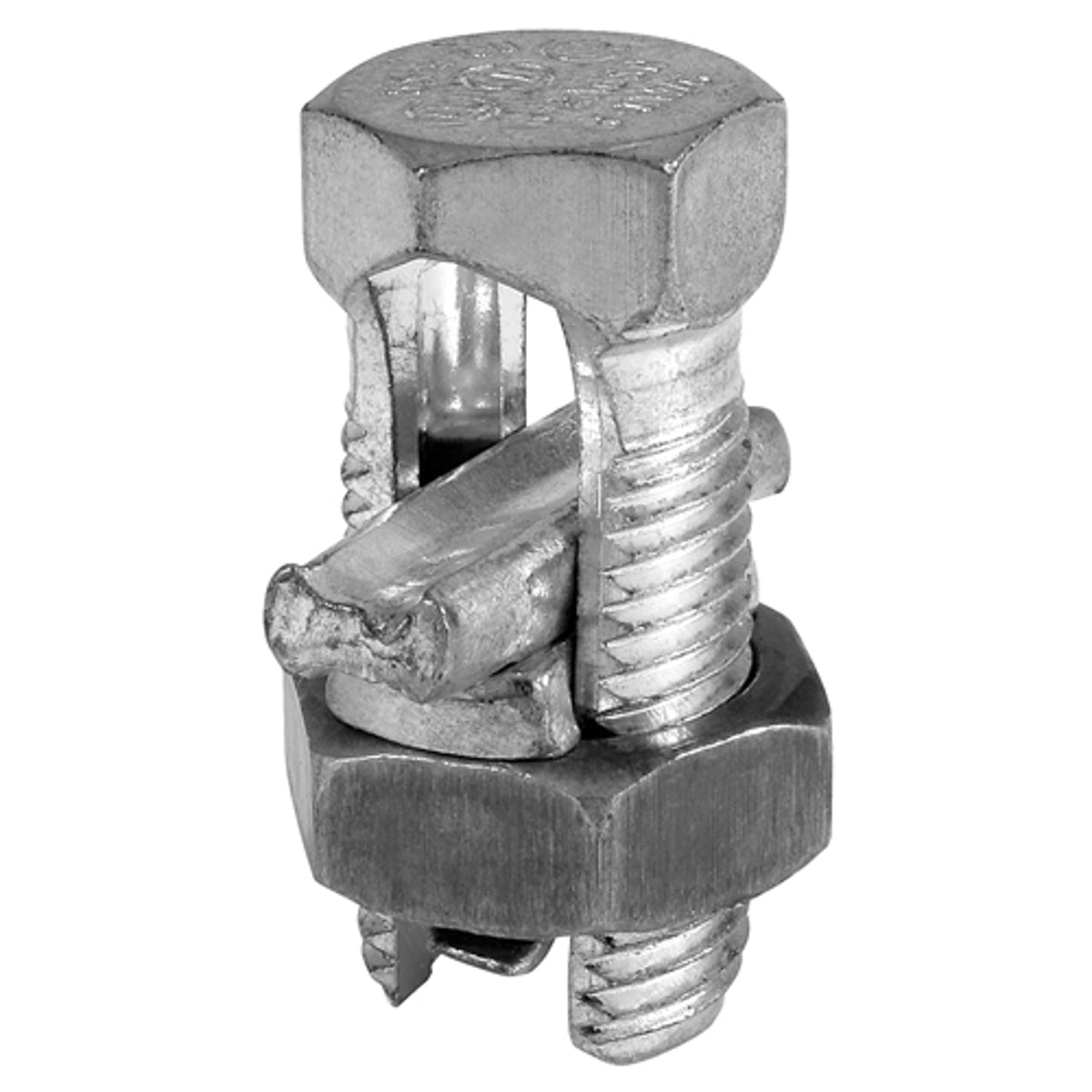

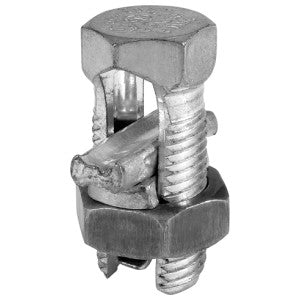

Ilsco SK-2 Copper Split Bolt Dual Rated Conductor Range for Equal Main & Tap 2-8 Sol Tin Plated UL CSA

Product Description

Ilsco SK-2 is a copper split bolt connector designed for dual rated applications. This connector accommodates conductors ranging from two to eight stranded and solid sizes. The SK-2 is tin plated for enhanced conductivity and corrosion resistance. It meets UL and CSA standards, making it suitable for a variety of electrical connections.

• Product Type: Split Bolt Connector
• Conductor Range: Two to Eight Stranded and Solid
• UL and CSA Listed for Safety

Product Highlights

This connector is ideal for use in electrical wiring where a robust mechanical connection is required. It features a simple installation process suitable for both professionals and DIY enthusiasts.

Product Information

Standard Information

• Manufacturer: Ilsco
• Catalog Number: SK-2

Technical Specifications

• Material: Copper
• Finish: Tin Plated
• Voltage Rating: 35 Volt
• Conductor Type: Solid and Stranded Copper
• Temperature Rating: 90 degrees C
• Dimensions: 1.55 inches (Length) x 0.93 inches (Width) x 0.81 inches (Height)
• One Conductor
• Drive Type: 11/16, 13/16 External Hex
