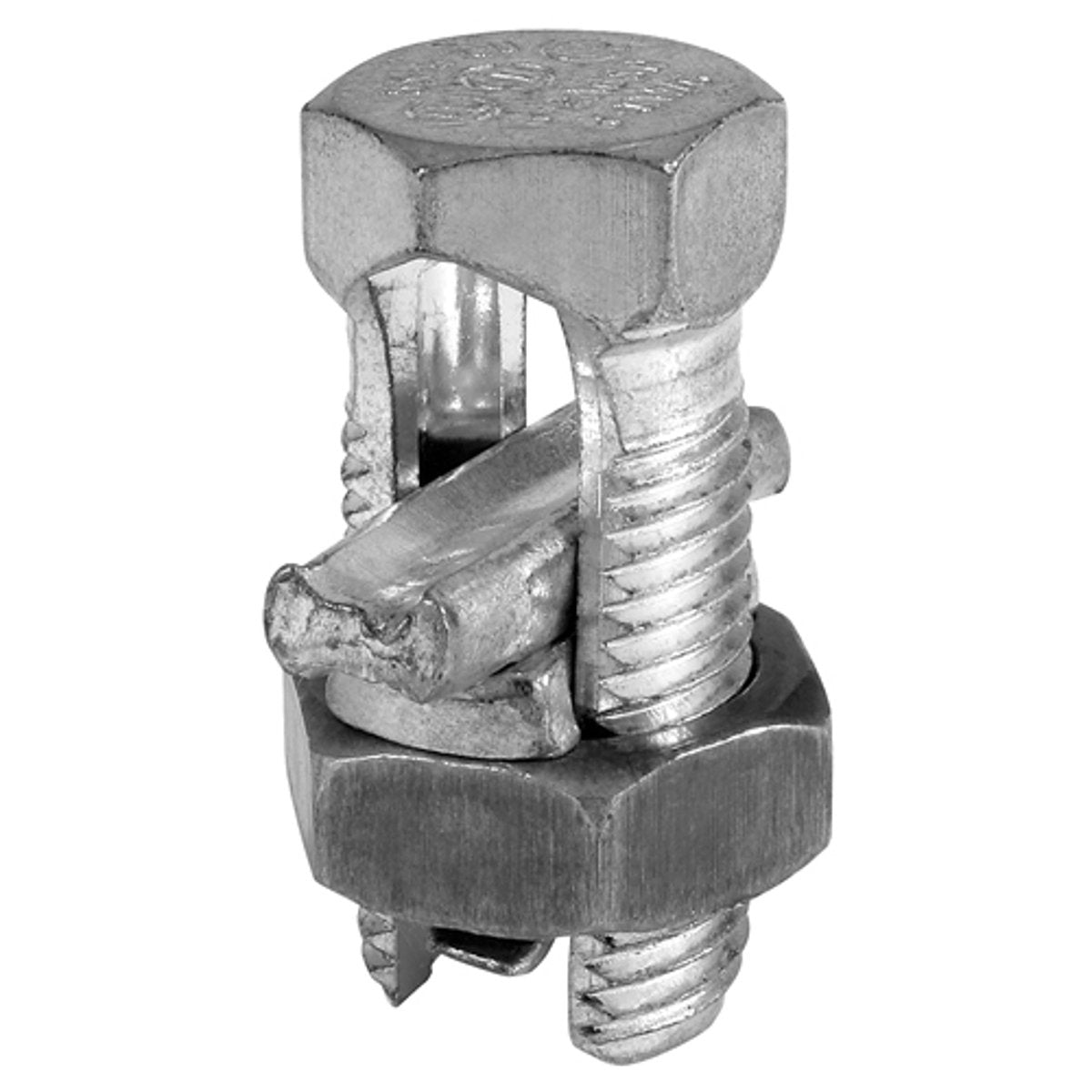

ILSCO SK-2/0 Copper Split Bolt, Conductor Range for Equal Main & Tap 2/0-6

Product Description

The ILSCO SK-2/0 Copper Split Bolt Connector is designed for secure electrical connections. Ideal for solid, concentric copper conductors, this product brings reliability and efficiency to wire termination. The bolt size is 0.812 inches by 1.812 inches, supporting conductor sizes from six to two-ought.

• Conductor range: 6 to 2/0 AWG.
• Constructed from high strength copper alloy.
• Electro-tin plated for low contact resistance.

Product Highlights

This connector ensures maximum conductivity with high breakage resistance. Wider applications include ACSR, copper, and stranded conductors. It meets essential safety standards, making it suitable for various wiring needs.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Catalog Number: SK-2/0
• Country of Origin: United States
• UPC: 783669819106
• Weight: 0.217 lbs
• Temperature Rating: 90 degrees C
• Voltage Rating: 2000 VAC
• Finish: Electro-Tin Plated
• Conductor Size: 6 to 2/0 AWG
