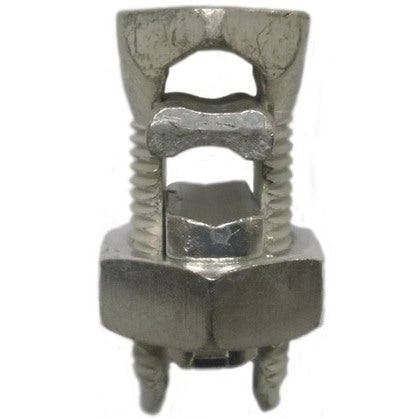

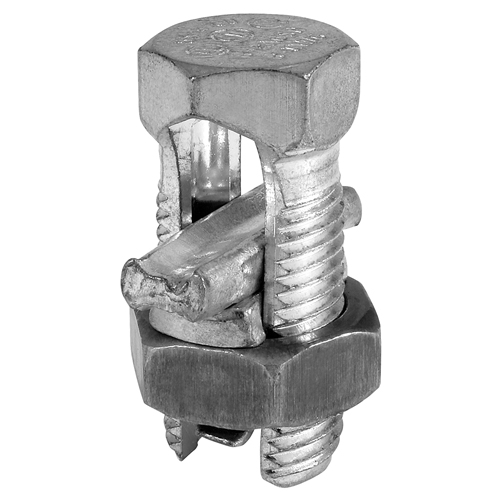

Ilsco SK-1/0 Split Bolt Connector 1/0-6 AWG

Brand: ILSCO
SKU: SK-1/0
Availability: In Stock

Ships same day if ordered by 12 pm
$20.98
$20.98
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ILSCO SK-1/0 split bolt connector is designed for 1/0-6 AWG wires. This connector features a mechanical connection and is constructed from copper with a tin-plated finish. It is UL 486A/B Listed and CSA certified for reliability and safety in various applications. For use with Copper to Copper.

  • Copper Alloy-Bodied
  • Type SK
  • Conductor Range: 1/0 Stranded - 6 Solid

Product Highlights

The ILSCO SK-1/0 split bolt connector ensures secure and reliable connections for copper conductors.

Product Information

Standard Information

  • Brand: ILSCO
  • Manufacturer Part Number: SK-1/0
  • Country of Origin: USA
Technical Specifications
MPN
SK-1/0
Brand
ILSCO
Manufacturer
Ilsco
IGCC
4541
Number of Conductors/Ports Con
1
Connection
Mechanical
Number of Conductors
1
Number of Poles
1
Drive Size Main
7/8
Drive Type Main
External Hex
Height (IN)
0.88
Length (IN)
1.64
Width (IN)
1.01
Wire Diameter Range Primary (IN)
0.162 - 0.375
Conductor Type
Solid Copper, Compact Copper, Compressed Copper, Concentric Copper
Material
Copper
Connector Finish
Tin
Number of Wire Binding Screws per Port
1
Temperature Rating
90 degrees C
Conductor Range CU Solid (Primary, run, main, line)
8 Sol
Conductor Range CU Solid (Secondary, tap, load)
8 Sol
Conductor Range CU Stranded (Primary, run, main, line)
1/0 Str - 8 Str
Conductor Range CU Stranded (Secondary, tap, load)
1/0 Str - 8 Str
Conductor Range for Equal Run & Tap ACSR
1 ACSR - 6 ACSR
Conductor Range for Equal Run & Tap Str
1/0 Str - 6 Str
Conductor Range for Equal Run & Tap Sol
1/0 Sol - 6 Sol
Conductor Range for Minimum Tap with Maximum Run
10 Sol
Conductor Range AL Solid (Primary, run, main, line)
8 Sol
Color
Silver
Voltage Rating
35 kV
CSA File Number
LR-701570
CSA Standard
C22.2 No. 65
RUS Listed
Yes
UL Control Number
460C
UL / CULUS Specification
UL 486A/B Listed
UL File Number
E6207
Bag Quantity
1
Direct Burial
No
Dual Rated
No
NEMA Code
S-588-4
Applications
Split Bolt
Bolt Size
0.376 in
Conductor Material
Copper
Connection Type
Mechanical
TC Connection
Mechanical
Voltage
35 Volt
Finish
Tin Plated
Sub Brand
ClearChoice
Standards
California Proposition 65
Allowable Gauge Range
6 - 1/0
