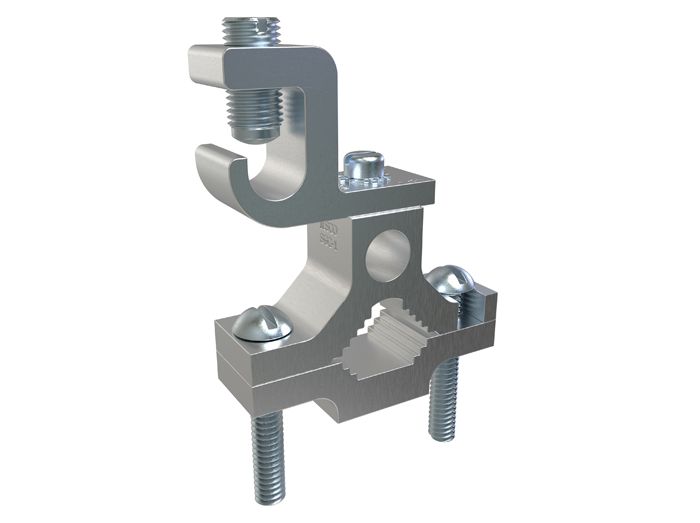

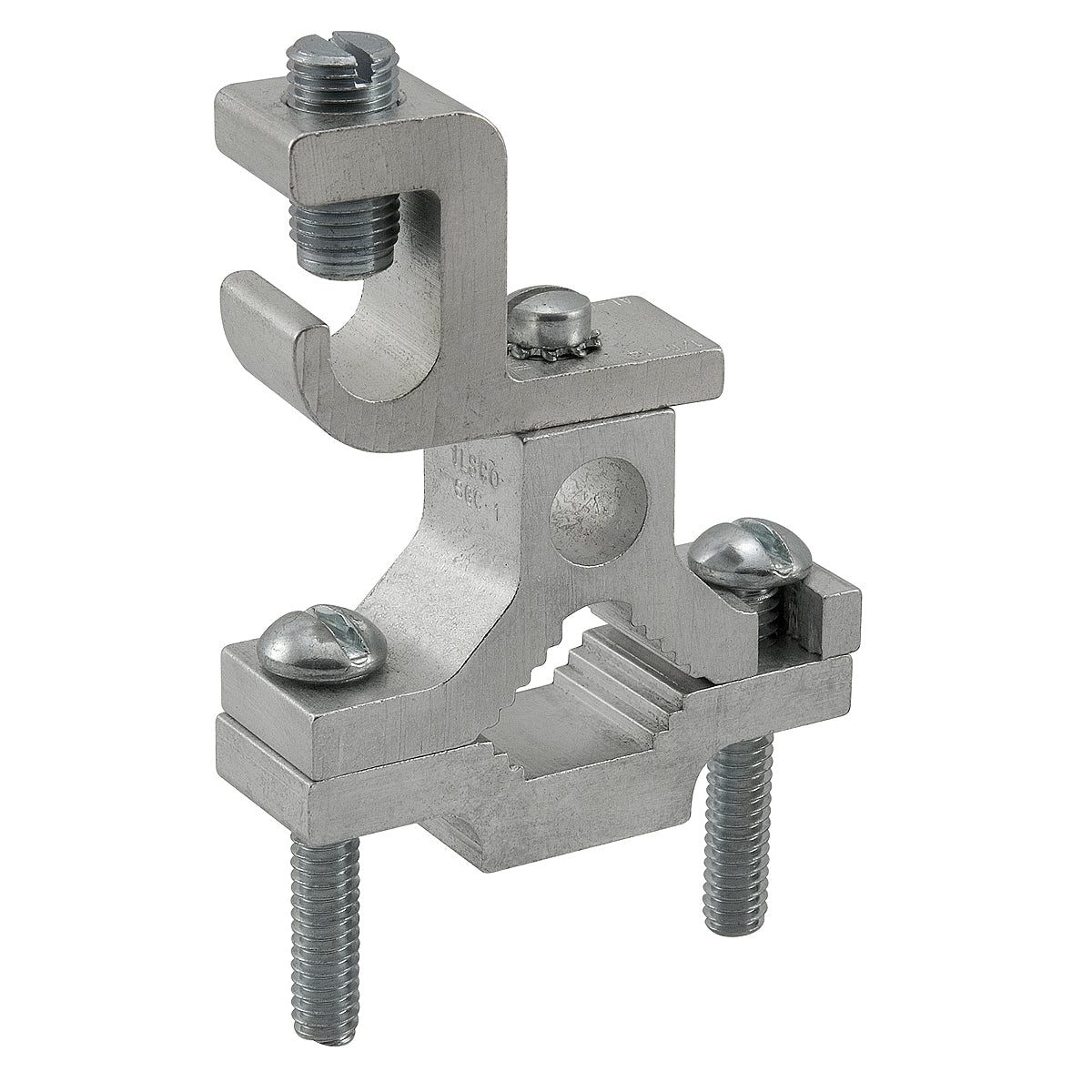

Ilsco SGC-1/0 Ground Clamp 1/0-14

Product Description

The ILSCO SGC-1/0 is a Permaground aluminum ground clamp, dual rated with a conductor range of 1/0-14 and pipe sizes 1/2 to 1in. It effectively grounds conductors to copper water pipe, galvanized pipe, or steel conduit. Suitable for use with either copper or aluminum conductors and manufactured from high strength aluminum alloy.

• Dual Rated for Copper and Aluminum Connectors.
• Lay-in feature provides ease of installation for long ground wire runs such as computer floor room systems
• Effectively grounds conductors to copper water pipe, galvanized pipe, or steal conduit

Product Highlights

The ILSCO SGC-1/0 ground clamp is dual rated for copper and aluminum connectors. It provides ease of installation for long ground wire runs.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: SGC-1/0
• Country of Origin: United States

Technical Specifications

• Material: Aluminum Alloy
• Standards: California Proposition 65
• Allowable Gauge Range: 14 - 1/0
• Brand: ILSCO
• Body Material: Aluminum
• Compatible Wire Gauge (AWG): 0 (1/0)
• MPN: SGC-1/0
• UPC: Does not apply
• Country of Origin: United States
• Applications: Ground Clamp Connector
• Number of Conductors: 1
• Tc Connection: Mechanical
• Type: SGC:LAY-IN GROUND CLAMP
• Voltage: 600 Volt
• Sub Brand: ILSCO
• 12-Digit UPC: 783669814507
• Finish: Clear
• Product UPC: 78366981450
• Product Series: AGC
• Family Series: Ilsco Grounding, AGC Series
• Description: AL MEC 1/2-3/4-1 GND 1/0-14 W UL
• Conductor Size: 14 - 1/0 AWG, 1/2 - 1 "
• Compression Style: Lay-In Bolt Lug, Split Frame Clamp
• For Use With: Conduit, Pipe
• Built-In Strain Relief: No
• Mounting: Direct on Pipe
• Direct Burial: No
• Approvals: UL
