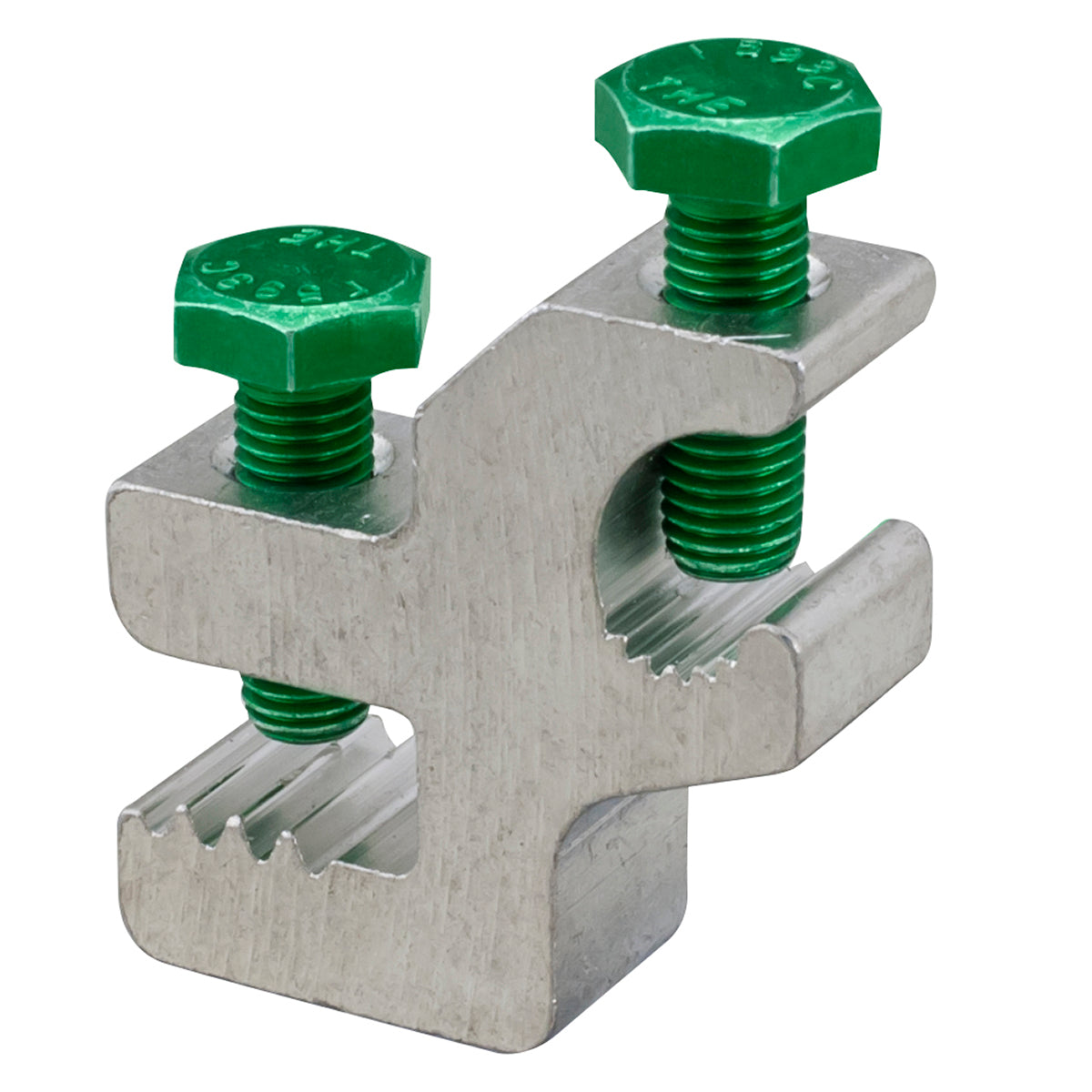

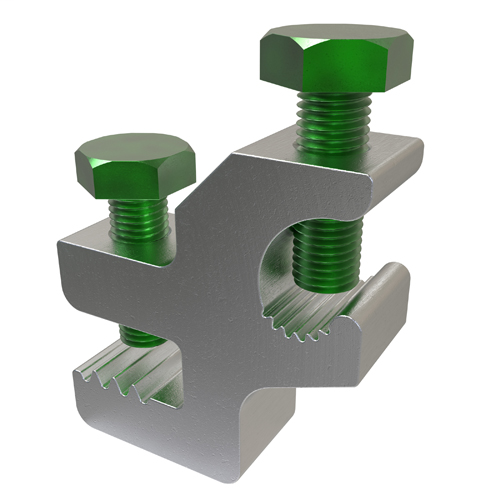

Ilsco SGB-5 Aluminum Lay-in Ground Lug Offset, Dual Rated, Conductor Range 4-14

Product Description

The ILSCO SGB-5 is an aluminum lay-in ground lug with an offset design. This dual-rated lug accommodates a conductor range of 4-14 and features tin plating. It is suitable for lay-in ground lug applications and supports mechanical TC connections with two conductors.

• Aluminum construction
• Lay-in design
• Offset configuration

Product Highlights

This ground lug is dual rated, UL Listed and CSA certified. It is designed for secure and reliable grounding applications.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: SGB-5
• Country of Origin: United States

Technical Specifications

• Type: SGB:SOLAR GRND BND
• Brand: Ilsco
• Finish: Tin Plated
• Material: Aluminum
• Sub Brand: ILSCO
• Applications: Lay-in Ground Lug
• TC Connection: Mechanical
• Number of Conductors: 2
• Catalog Number: SGB-5
• Manufacturer: ECM Industries
• UPC: 783669960303
• GTIN: 00783669960303
• Model Number: SGB-5
• Number of Conductors/Ports Con: 2
• Connection: Mechanical
• Number of Ports / Wireways: 2
• Wire Orientation: Parallel
• Drive Size Main: 7/16
• Drive Type Main: External Hex
• Height (IN): 1.716
• Height (mm): 43.5864
• Length (IN): 1.375
• Length (mm): 34.925
• Width (IN): 0.5
• Width (mm): 12.7
• Conductor Type: Solid, Stranded
• Conductor Material: Aluminum, Copper
• Connector Finish: Tin
• Insulation: NA
• Conductor Range AL Solid (Primary, run, main, line): 10 Sol - 14 Sol
• Conductor Range AL Stranded (Primary, run, main, line): 4 Str - 14 Str
• Conductor Range CU Solid (Primary, run, main, line): 4 Sol - 14 Sol
• Conductor Range CU Stranded (Primary, run, main, line): 4 Str - 14 Str
• Clamping Bolt Size: 7/16
• Clamping Bolt Torque: 75
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 1/4
• Wire Binding Torque: 35
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 667P
• UL / CULUS Specification: UL 2703 Recognized, UL 467 Listed
• UL File Number: E34440, E354420 Vol. 1
• Dual Rated: Yes
• NEMA Code: S-573-6
