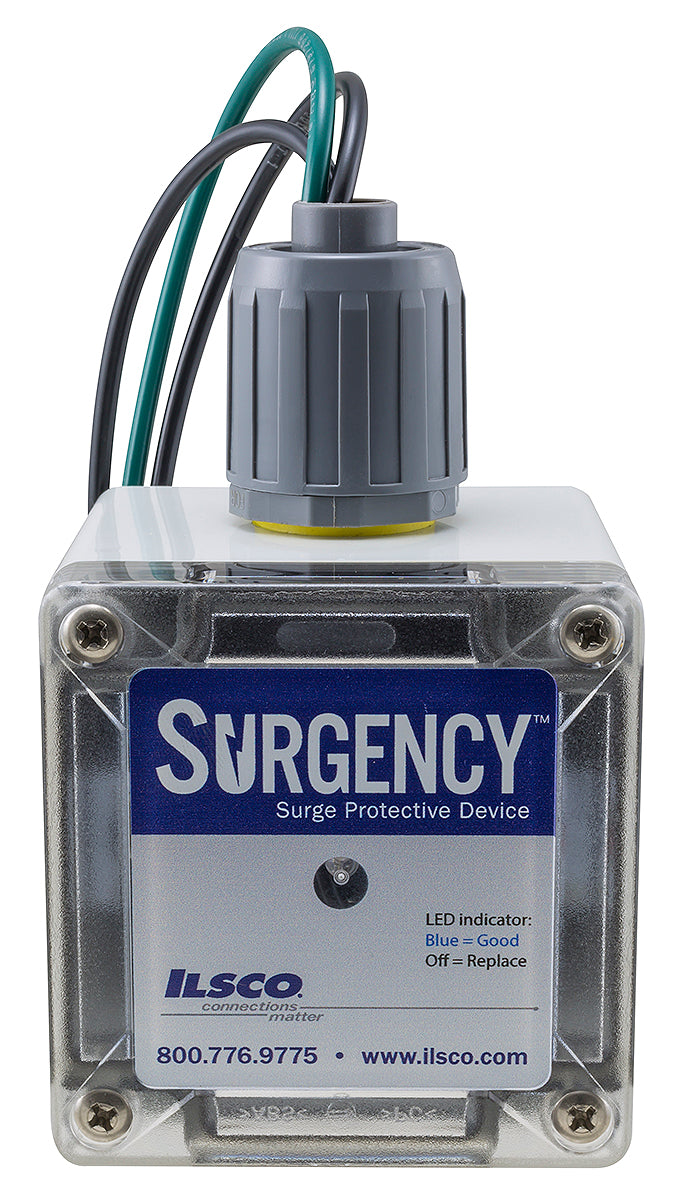

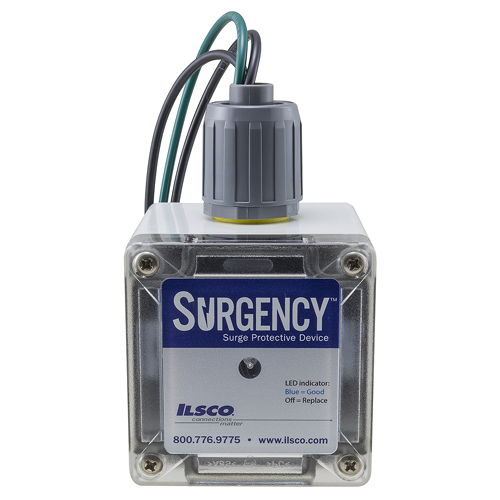

Ilsco RE-050-1R1X-C Surgency Surge Protection 120/240 Volt Lead Wire Size 12

Product Description

Ilsco RE-050-1R1X-C is a surge protection device for residential applications. It is designed for one-phase, split systems with a surge current rating of fifty thousand Amperes at one hundred twenty to two hundred forty volts. This device features a lead wire size of twelve, an indicator LED, and a noise filter. It meets both UL and CSA safety standards.

• Designed for residential applications with a 50kA surge current.
• Compatible with split-phase systems for enhanced performance.
• Includes an indicator LED and noise filter for operational efficiency.

Product Highlights

This surge protection system helps prevent damage from power surges, ensuring the safety and longevity of home electrical systems.

Product Information

Standard Information

• Brand: Ilsco
• Model: RE-050-1R1X-C

Technical Specifications

• Voltage: 120/240 Volt
• Lead Wire Size: 12
• Phase Type: Split
• Surge Current Rating: 50kA
• Operating Temperature: -40 degrees C to 65 degrees C
• Connection Type: Split Phase
• Material: Polycarbonate
• Short Circuit Current: 200 kA
