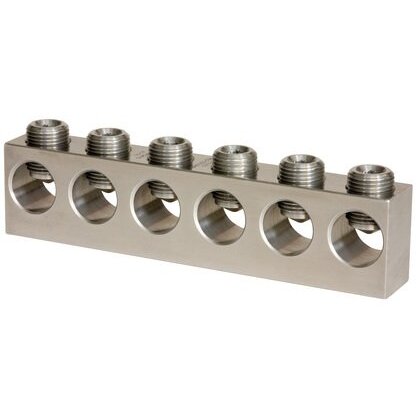

Ilsco PED-6-350-X Aluminum Multi-Tap Connector 6 Ports PEC-6-350

Product Description

The ILSCO PED-6-350-X is an aluminum multi-tap connector with a dual rating and a conductor range of 350-10, featuring 6 ports. It is designed for mechanical connections and is constructed from aluminum with a tin-plated finish. This connector accommodates both copper and aluminum conductors.

• Dual Rated
• Mechanical connection
• Tin plated connector

Product Highlights

Aluminum multi-tap connector with 6 ports, dual rated for copper and aluminum conductors.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: PED-6-350-X
• Country of Origin: MX - Mexico

Technical Specifications

• Connection: Mechanical
• Contains DE-OX : No
• Number of Conductors: 6
• Number of Poles: 1
• Number of Ports / Wireways: 6
• Replacement Part(s): PEC-6-350
• Drive Size Main: 5/16
• Drive Type Main: Internal Hex
• Conductor Type: Stranded, Solid
• Conductor Material: Aluminum, Copper
• Connector Finish: Tin
• Insulation: NA
• Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Wire Binding Hardware Material: Aluminum
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 11/16
• Conductor Range AL Stranded (Primary, run, main, line): 350 kcmil - 10 Str
• Conductor Range CU Solid (Primary, run, main, line): 10 Sol
• Conductor Range CU Stranded (Primary, run, main, line): 350 kcmil - 10 Str
• Conductor Range AL Solid (Primary, run, main, line): 10 Sol
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-4
• ECCN: EAR99
• UNSPSC: 39121408
• Standards: California Proposition 65
