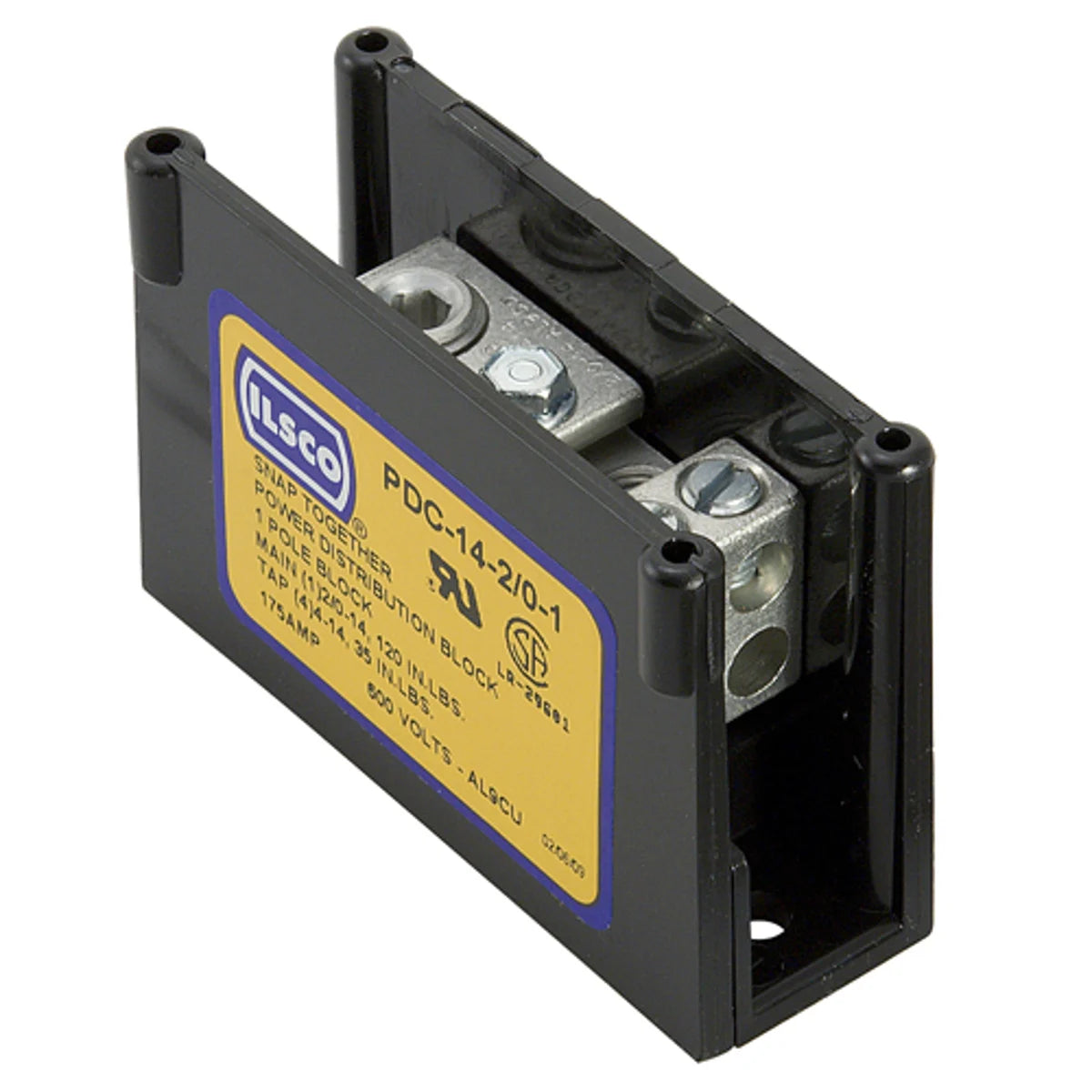

ILSCO PDC-14-2/0-1 Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 2/0-14, Load Range 4-14, 1 Port Per Pole Line Side, 4 Ports Per Pole Load Side, 1 Pole, UL, CSA

Brand: ILSCO
SKU: PDC-14-2/0-1
Availability: Out Of Stock
$58.01
$58.01
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

ILSCO PDC-14-2/0-1 is a modular power distribution block that offers dual ratings for line conductor range from two aught to fourteen AWG, and load range from four to fourteen AWG. This product is suitable for various electrical applications, providing multiple connection options in a compact design.

  • Modular design simplifies assembly
  • UL recognized and CSA certified
  • Compatible with copper and aluminum conductors

Product Highlights

This power distribution block ensures reliable electrical connections with low contact resistance.

Product Information

Standard Information

  • Manufacturer: ECM Industries
  • Brand: ILSCO
  • Catalog Number: PDC-14-2/0-1
  • Country of Origin: Mexico

Technical Specifications

  • Conductor Material: Aluminum/Copper
  • Connector Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
  • Number of Poles: 1
  • Primary Opening Wire Size: 14 to 2/0 AWG
  • Secondary Opening Wire Size: 14 to 4 AWG
  • Temperature Rating: 90 Deg C
  • Dimensions: 1.05 in x 2.875 in x 1.94 in
  • Approval: UL 1059, CSA
