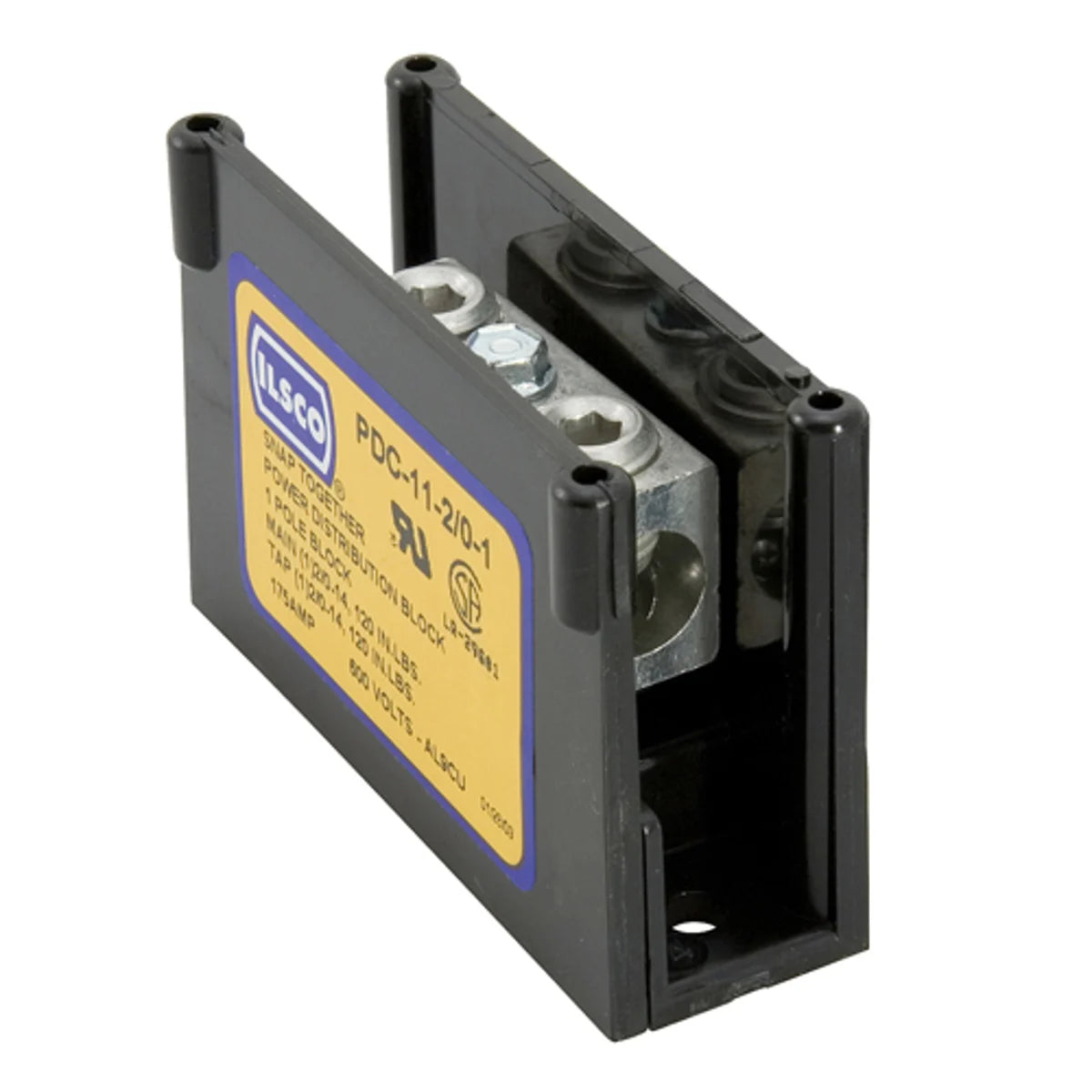

ILSCO PDC-11-2/0-1 Power Distribution Block Modular Design Dual Rated 14-2/0 AWG

Product Description

ILSCO PDC-11-2/0-1 is a modular power distribution block designed for efficient electrical connections. It supports a line conductor range of fourteen to two aught AWG and a load range of fourteen to two aught AWG. This block includes one port per pole on both line side and load side, ensuring simplicity in installation and configuration.

• Modular design allows for easy assembly
• Integrated locking feature combines blocks without additional tools
• Approvals include UL 1059 and CSA

Product Highlights

This power distribution block is engineered for reliability and lower contact resistance, making it ideal for use in various electrical applications.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: PDC-11-2/0-1
• Conductor Material: Aluminum/Copper
• Connector Material: Electro-tin plated high strength 6061-T6 aluminum alloy
• Approval: UL 1059, CSA
• Temperature Rating: 90 Deg C
• Size: 1.05 inches x 2.88 inches x 1.94 inches
• Number of Poles: 1
• Primary Opening Wire Size: 14 to 2/0 AWG
• Secondary Opening Wire Size: 14 to 2/0 AWG
• Voltage Rating: 600 VAC
