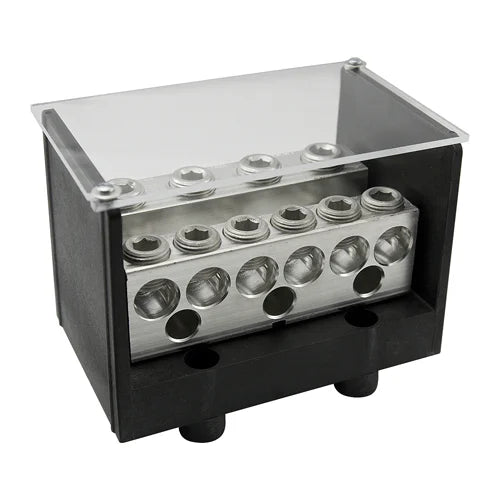

ILSCO PDB-24-500-3 Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 4/0-6, 2 Ports Per Pole Line Side, 4 Ports Per Pole Load Side, 3 Pole, UL, CSA

Brand: ILSCO
SKU: PDB-24-500-3
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$436.52
$436.52
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

ILSCO PDB-24-500-3 is a dual-rated power distribution block suitable for a wide range of electrical connections. This block can handle line conductor ranges from five hundred to four AWG and has a load range from four-aught to six AWG. It features two ports for each pole on the line side and four ports for each pole on the load side.

  • Dual-rated modular design for flexible configurations.
  • Handles both copper and aluminum conductors.
  • UL and CSA standards compliant for safety and reliability.

Product Highlights

This power distribution block is ideal for modular setups, combining multiple blocks as needed for various jobs. It is designed to simplify electrical installations and maintenance while ensuring compliance with industry standards.

Product Information

Standard Information

  • Catalog Number: PDB-24-500-3
  • Manufacturer: ECM Industries

Technical Specifications

  • Conductor Material: Aluminum/Copper
  • Connector Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
  • Number of Poles: 3
  • Primary Opening Wire Size: 4 AWG to 500 KCMIL
  • Secondary Opening Wire Size: 6 to 4/0 AWG
  • Temperature Rating: 90 Deg C
  • Dimensions: 8.38 inches x 5.5 inches x 3.5 inches
  • Approval: UL 1059, CSA
