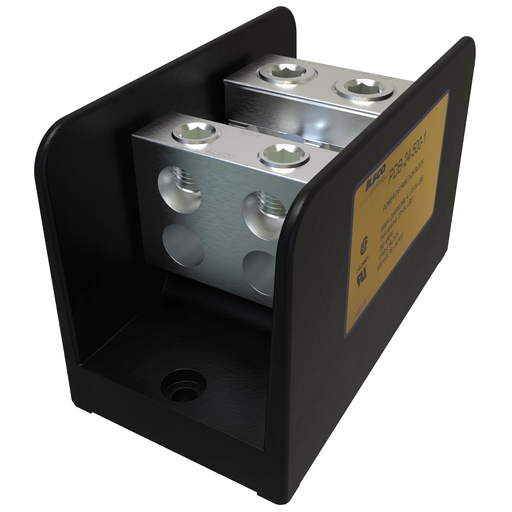

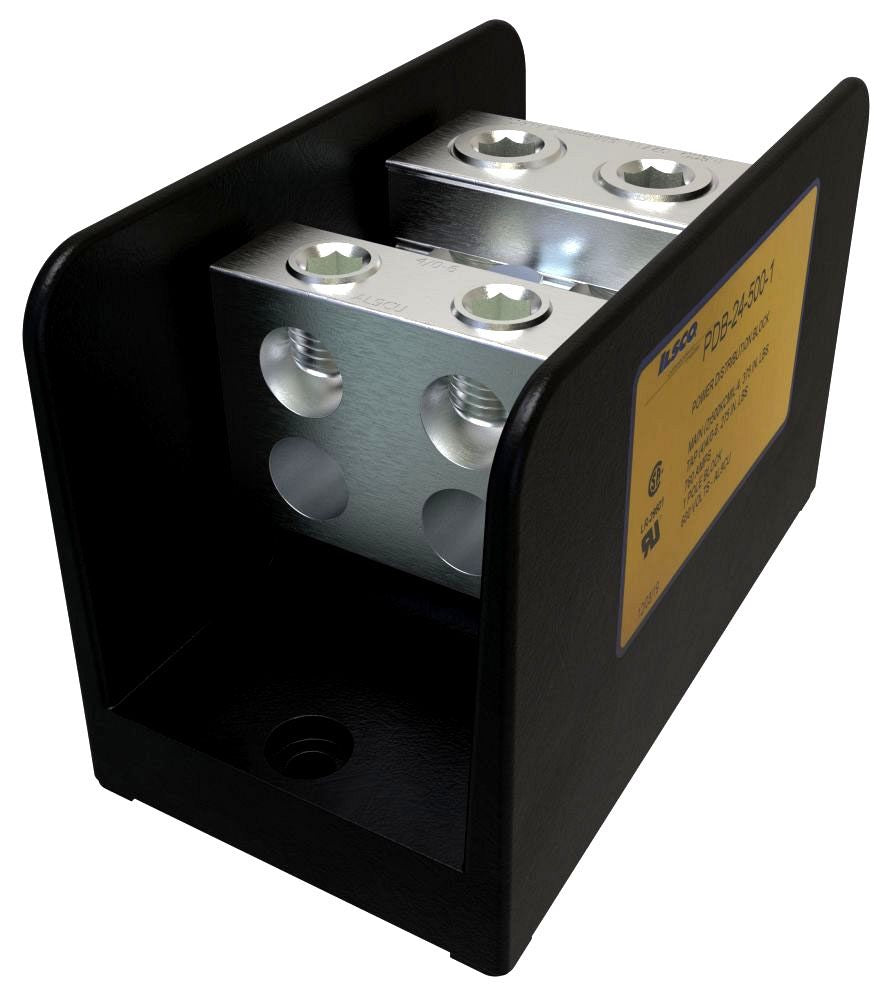

Ilsco PDB-24-500-1 Power Distribution Block 600 V 1 Pole

Product Description

The Ilsco PDB-24-500-1 is a power distribution block designed for reliable electrical connections. This unit features a dual rated design suitable for both copper and aluminum conductors. It can handle a line conductor range of five hundred to four AWG and a load range of four/zero to six AWG. The block accommodates two ports per pole on the line side and four ports per pole on the load side, providing versatile connectivity options for various applications.

• Primary conductor range: five hundred to four AWG
• Load range: four/zero to six AWG
• Rated for six hundred volts with a maximum current rating of seven hundred sixty amps

Product Highlights

The Ilsco power distribution block is designed for efficient power distribution in electrical systems. It is built to be installed quickly and securely, ensuring optimal performance in both residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Ilsco
• Model: PDB-24-500-1

Technical Specifications

• Material: Aluminum and copper
• Finish: Tin plated
• Voltage Rating: six hundred volts
• Current Rating: seven hundred sixty amps
• Temperature Rating: ninety degrees Celsius
• Number of Poles: one
• Number of Conductors: six
• Enclosure: Valox
