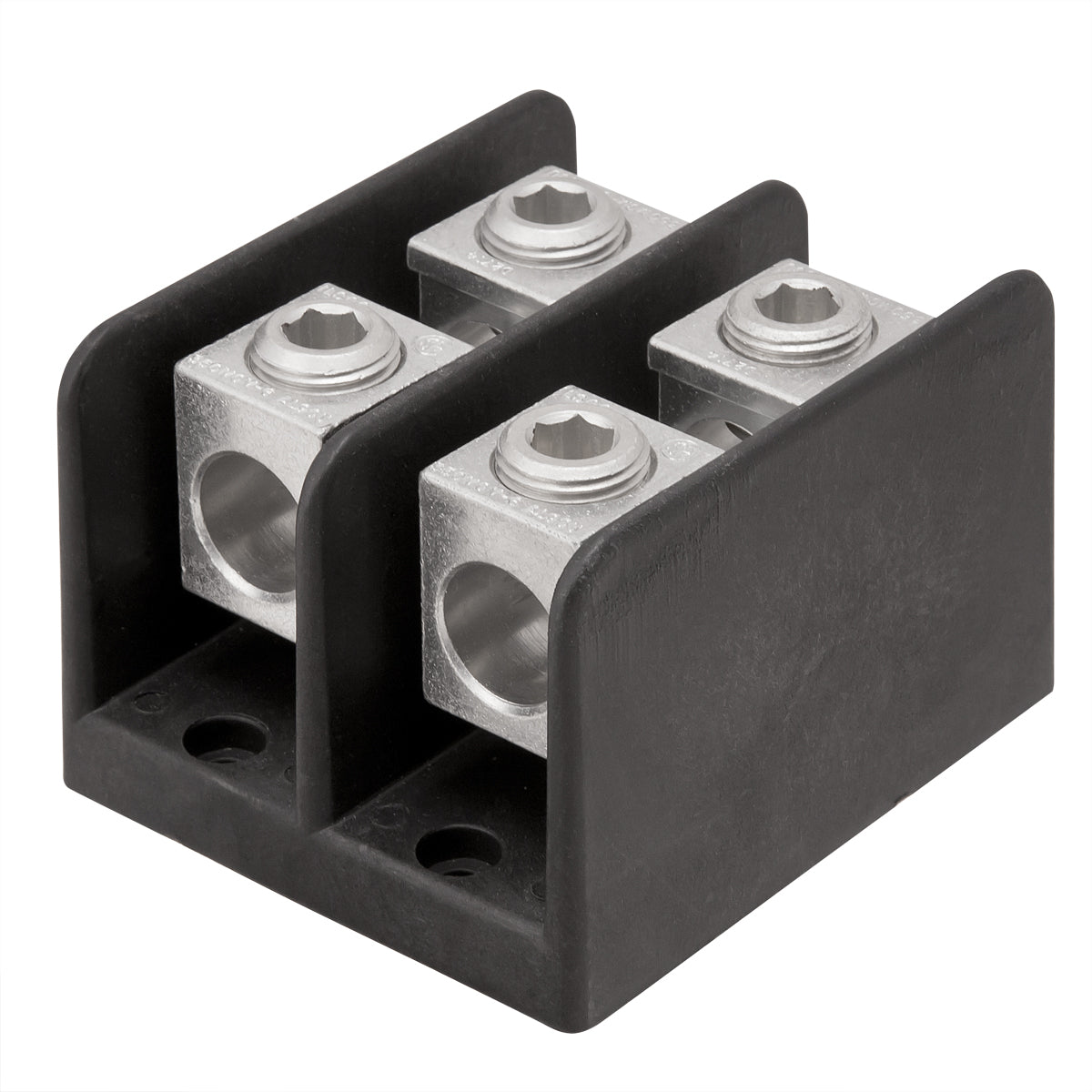

ILSCO PDB-22-350-1 Power Distribution Block, 600 VAC, 620 A, 1 Pole, 6 AWG to 350 kcmil Wire

Product Description

The ILSCO PDB-22-350-1 is a power distribution block designed for dual-rated use with a line conductor range of six hundred to three hundred fifty kcmil. This block accommodates two ports per pole on both the line side and load side, making it suitable for various applications.

• Rated for 600 VAC and 620 A maximum capacity
• Compatible with wire sizes ranging from 6 AWG to 350 kcmil
• UL Recognized and CSA Certified for safety and reliability

Product Highlights

It is ideal for use in electrical distribution systems, providing reliable connections for both copper and aluminum conductors. The electro-tin plating ensures low contact resistance while the robust construction ensures durability.

Product Information

Standard Information

• Catalog Number: PDB-22-350-1
• Manufacturer: ECM Industries

Technical Specifications

• Amperage Rating: 620 A
• Voltage Rating: 600 VAC
• Wire Size: 6 AWG to 350 kcmil
• Material: Aluminum
• Dimensions: 3 inches L x 5.5 inches W x 3.5 inches H
• Country of Origin: Mexico
• Standards: CSA File No. LR-29601, UL 1059
• Short Circuit Current Rating (SCCR): 10 kA
