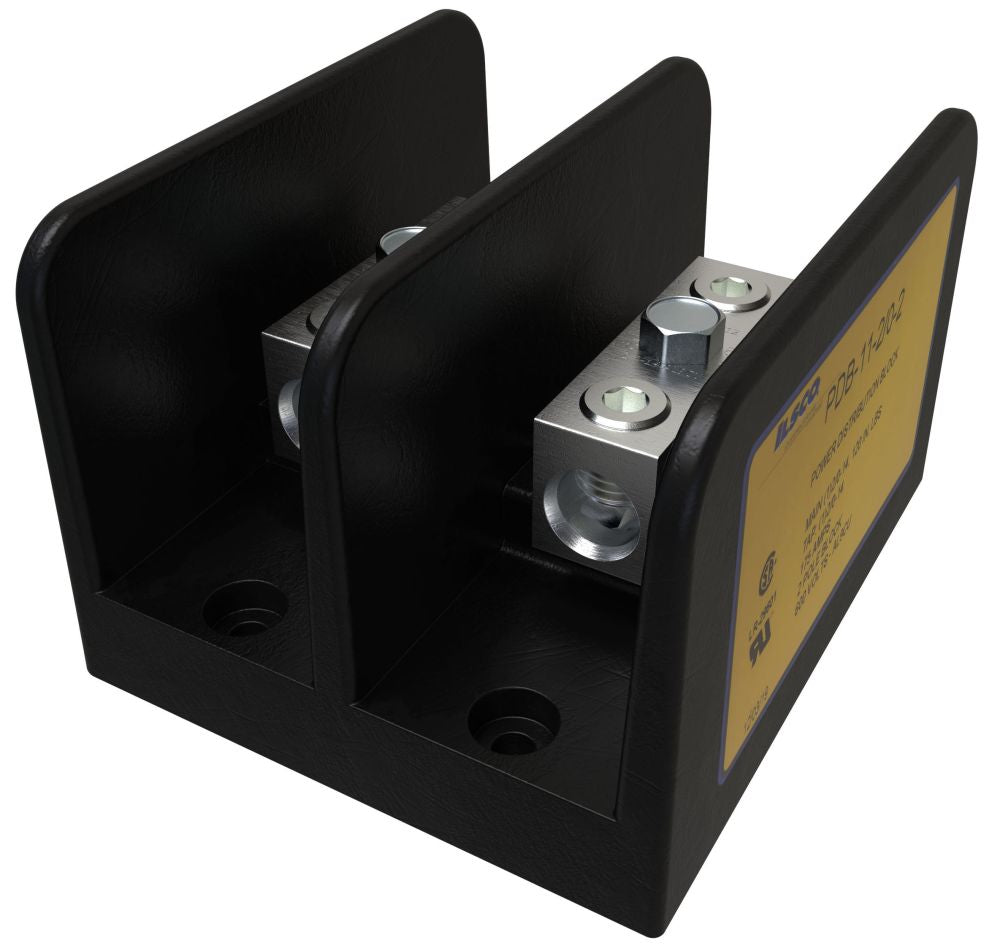

Ilsco PDB-11-2/0-2 Power Distribution Block, Dual Rated, Line Conductor Range 2/0-14, Load Range 2/0-14, 1 Port Per Pole Line Side, 1 Port Per Pole Load Side, 2 Pole, UL, CSA

Product Description

Ilsco PDB-11-2/0-2 is a power distribution block with dual rating. It supports a line conductor range from two-aught to fourteen. The load range is also from two-aught to fourteen. Each pole has one port on both the line and load sides, making it efficient for power distribution needs. This is a two-pole block approved by UL and CSA.

• Dual rated for versatile use
• Compatible with line and load conductors ranging from 2/0 to 14
• 1 port per pole for efficient connectivity

Product Highlights

This power distribution block is designed for easy installation and reliable performance in various electrical applications.

Product Information

Standard Information

• Brand: Ilsco
• Manufacturer: Ilsco

Technical Specifications

• Catalog Number: PDB-11-2/0-2
• Voltage Rating: 600 Volt
• Amperage: CU: 175 AMP
• Material: Aluminum
• Enclosure: Valox
• Number of Poles: 2
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
