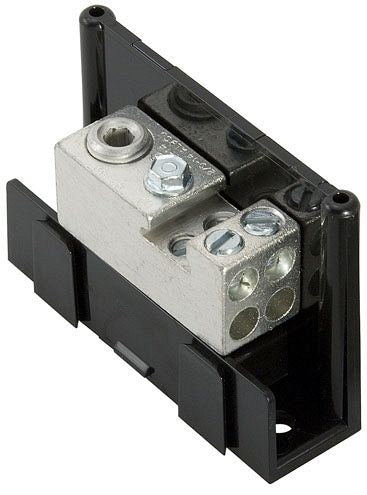

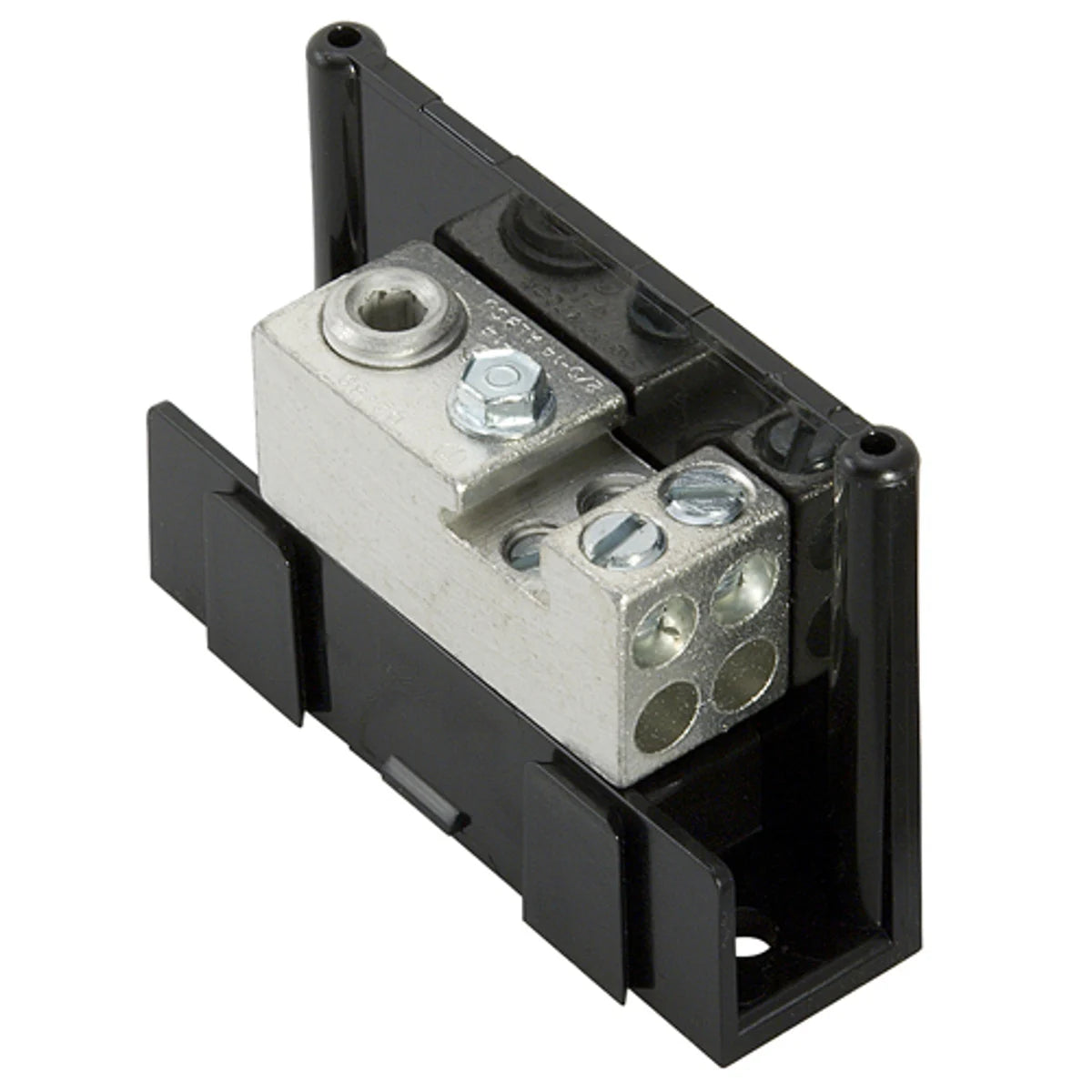

ILSCO PDA-14-2/0-1 Power Distribution Block, Modular Design, Dual Rated, Line Conductor Range 2/0-14, Load Range 4-14, 1 Port Per Pole Line Side, 4 Ports Per Pole Load Side, Adder Block, UL, CSA

Product Description

ILSCO PDA-14-2/0-1 Power Distribution Block is designed for various electrical configurations. This block supports a line conductor range of two aught to fourteen. The load range accommodates four to fourteen. It features a modular design allowing for easy assembly and combination of multiple blocks.

• Modular design simplifies installation.
• Rated for both copper and aluminum conductors.
• UL and CSA certified for reliability and safety.

Product Highlights

The power distribution block provides low contact resistance and high impact resistance, ensuring a secure and durable connection.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: PDA-14-2/0-1
• Type: Adder, Modular
• Approval: UL 1059, CSA
• Primary Wire Size: 14 to 2/0 AWG
• Secondary Wire Size: 14 to 4 AWG
• Number Of Primary Openings: 1
• Number Of Secondary Openings: 4
• Temperature Rating: 90 Degrees Celsius
• Country of Origin: Mexico
