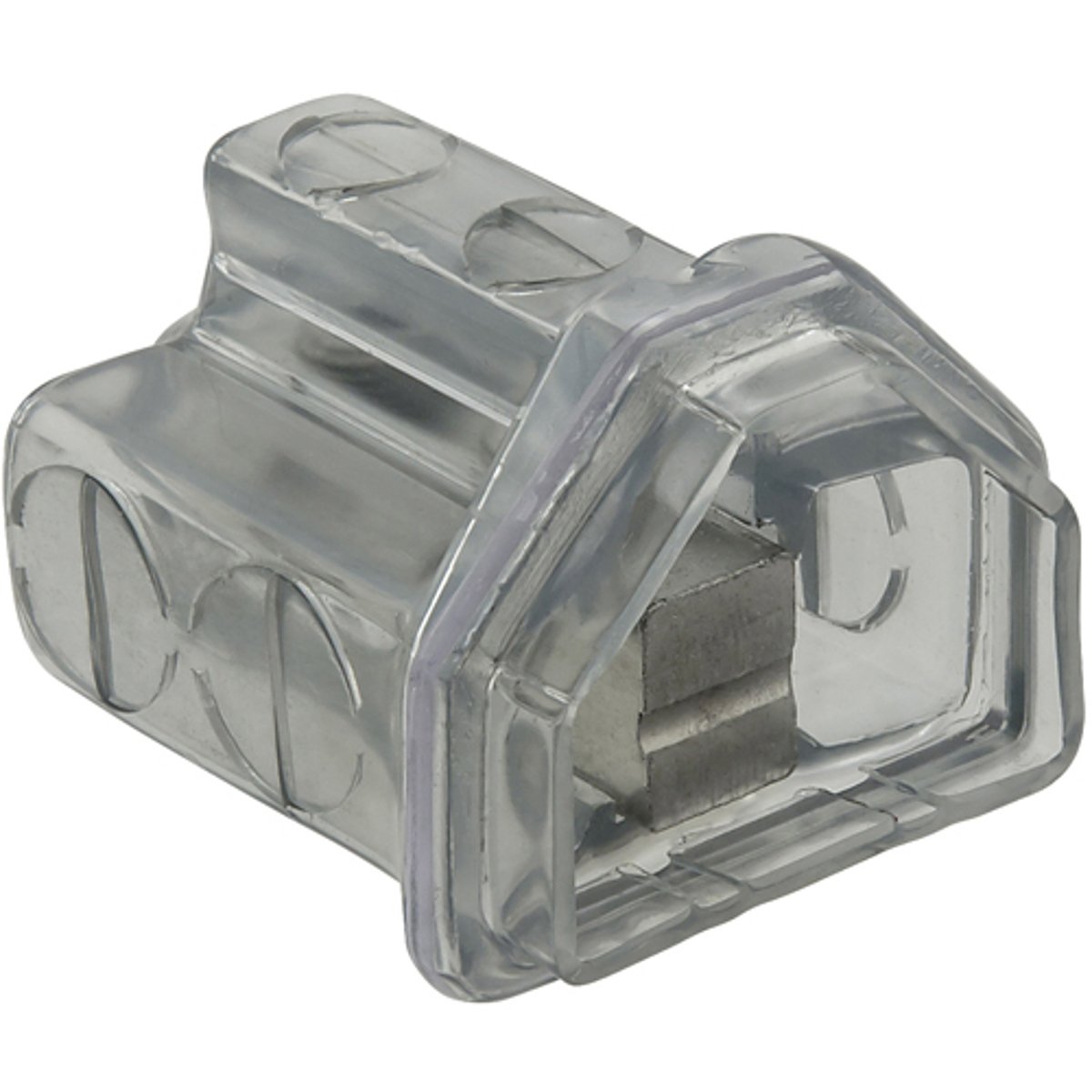

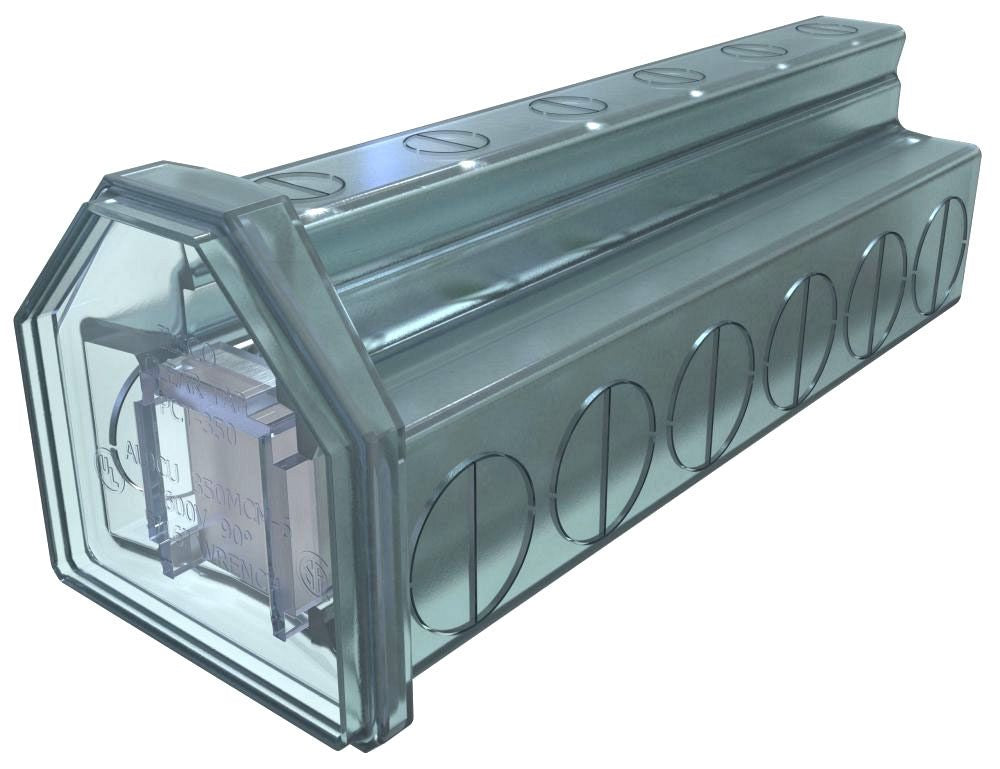

ILSCO PCT-6-350 Cleartap Insulated Aluminum Multi-Tap Connector Dual Rated Conductor Range 350-6

Product Description

The ILSCO PCT-6-350 is a Cleartap insulated aluminum multi-tap connector designed for dual-rated applications. This connector accommodates a conductor range of six to three hundred fifty KCMIL and features six ports. It is suitable for both aluminum and copper conductors.

• Transparent flexible insulating cover
• Self-closing openings to prevent loss
• UL and CSA approved

Product Highlights

This connector offers a user-friendly design with visible connections. Captive pressure screws eliminate the search for loose screws, and access from both sides enables better installation flexibility.

Product Information

Standard Information

• Catalog Number: PCT-6-350
• Brand: ILSCO
• Manufacturer: ECM Industries
• Country of Origin: Mexico
• UPC: 783669700602
• Approval: UL 453G, UL 486A/B, CSA

Technical Specifications

• Maximum Conductor Size: 350 KCMIL
• Minimum Conductor Size: 6 AWG
• Number of Ports: 6
• Cable Entry: 2 Side Entry
• Conductor Material: Copper/Aluminum
