Product Description

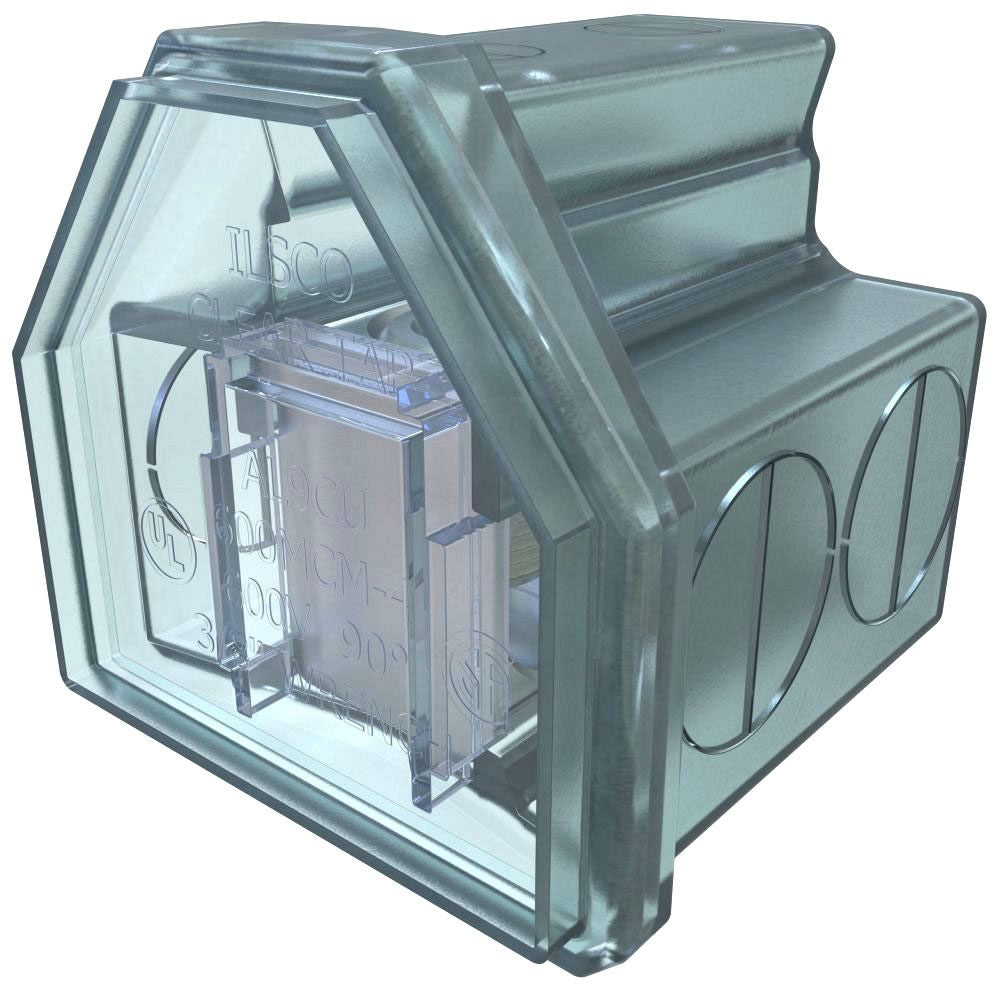

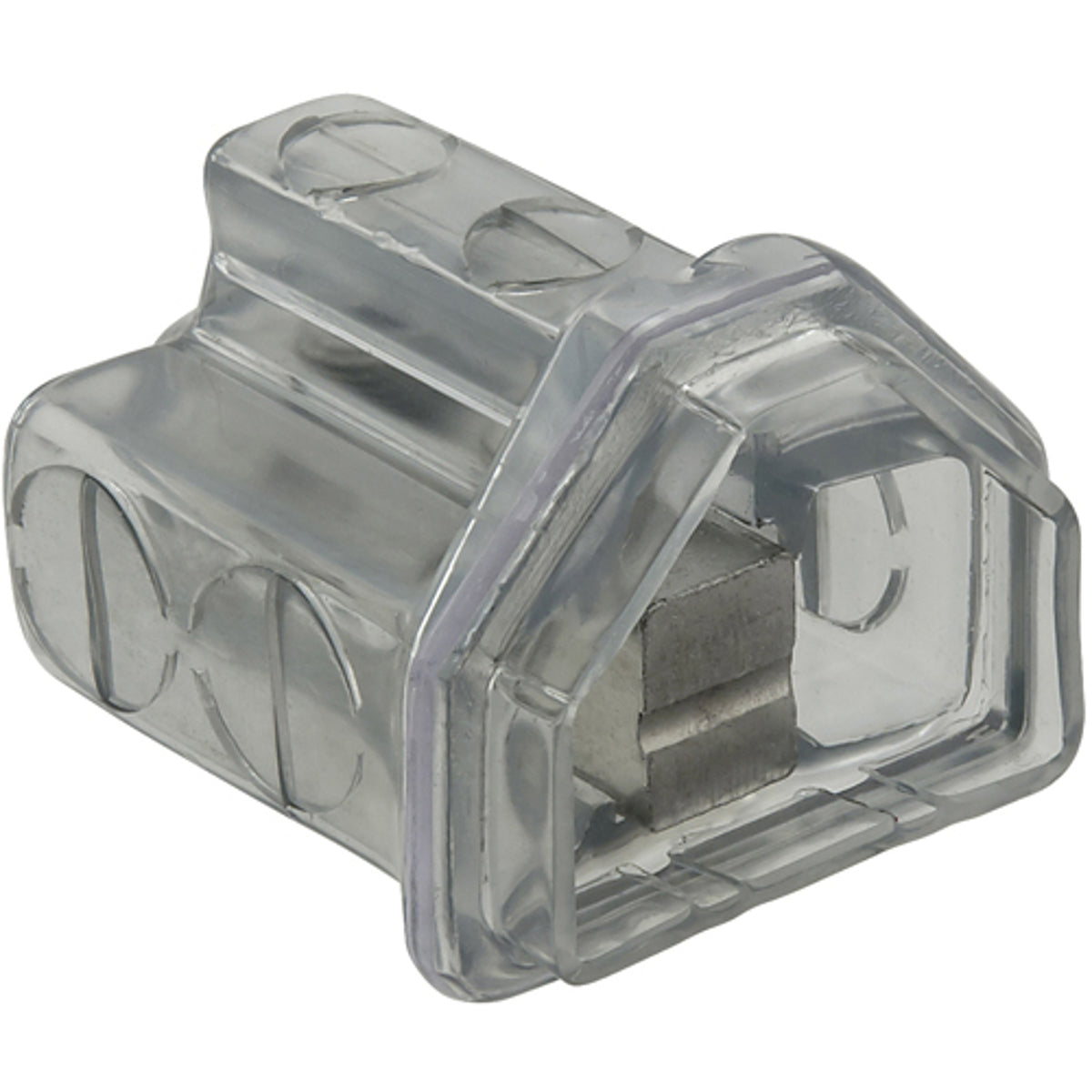

The ILSCO PCT-2-600 is a Cleartap insulated aluminum multi-tap connector. It features a dual rated conductor range from six hundred KCMIL to four AWG. This connector is suitable for both copper and aluminum conductors, making it versatile for various applications.
- Dual rated for Copper and Aluminum conductors
- Two side entry ports for easy access
- Transparent flexible insulating cover for visual connection inspection
Product Highlights
This connector is built with captive pressure screws to prevent lost time locating screws. Its self-closing openings prevent caps and plugs from being lost or misplaced. The design allows access from both sides, enhancing flexibility in installations.
Product Information
Standard Information
-
Brand: ILSCO
-
Manufacturer: ECM Industries
Technical Specifications
-
Catalog Number: PCT-2-600
-
Country of Origin: Mexico
-
Made in USA: No
-
UPC: 783669700640
-
Maximum Conductor Size: 600 KCMIL
-
Minimum Conductor Size: 4 AWG
-
Number Of Ports: 2
-
Approval: UL 453G, UL 486A/B, CSA
