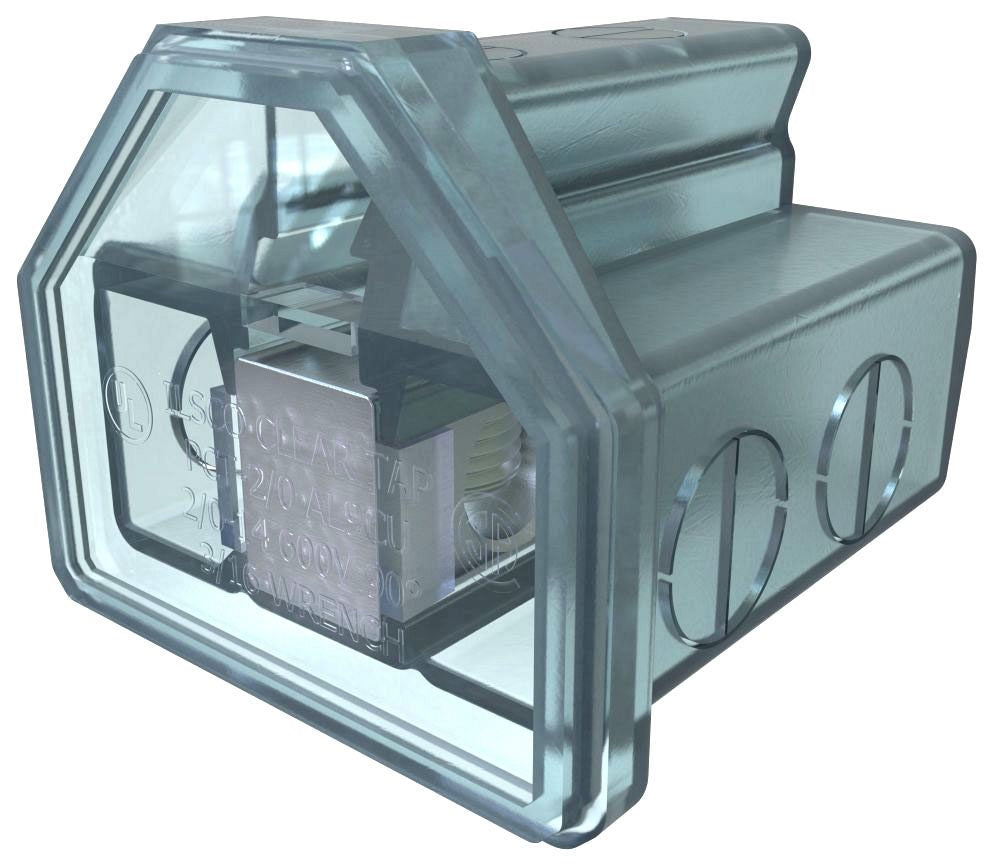

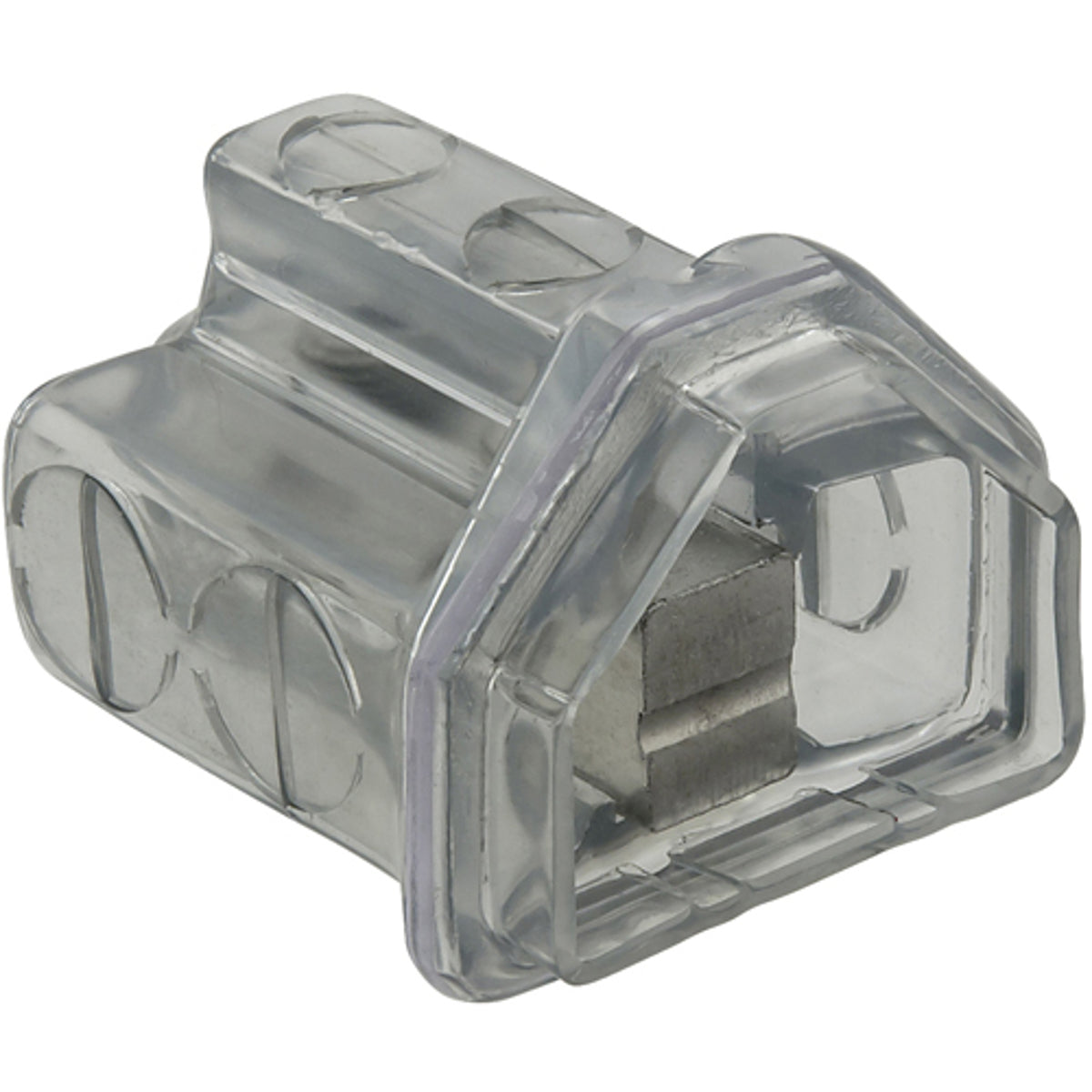

ILSCO PCT-2-2/0 Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 2/0-14, 2 Ports, Tin Plated

Product Description

The ILSCO PCT-2-2/0 is an insulated aluminum multi-tap connector designed for dual-rated conductor use. It accommodates conductor ranges from two/zero to fourteen AWG. This connector features easy access points and allows for visual inspection of connections.

• Transparent flexible insulating cover for quick visual inspection.
• Captive pressure screws prevent loss of components.
• Two ports for enhanced versatility and ease of installation.

Product Highlights

This connector is ideal for both copper and aluminum conductors. It is suitable for use in a variety of wiring projects, providing reliable connections in commercial and residential systems.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: PCT-2-2/0
• Conductor Material: Copper/Aluminum
• Maximum Conductor Size: 2/0 AWG
• Minimum Conductor Size: 14 AWG
• Number of Ports: 2
• Approval: UL 453G, UL 486A/B, CSA
• Country of Origin: Mexico
• UPC: 783669700404
