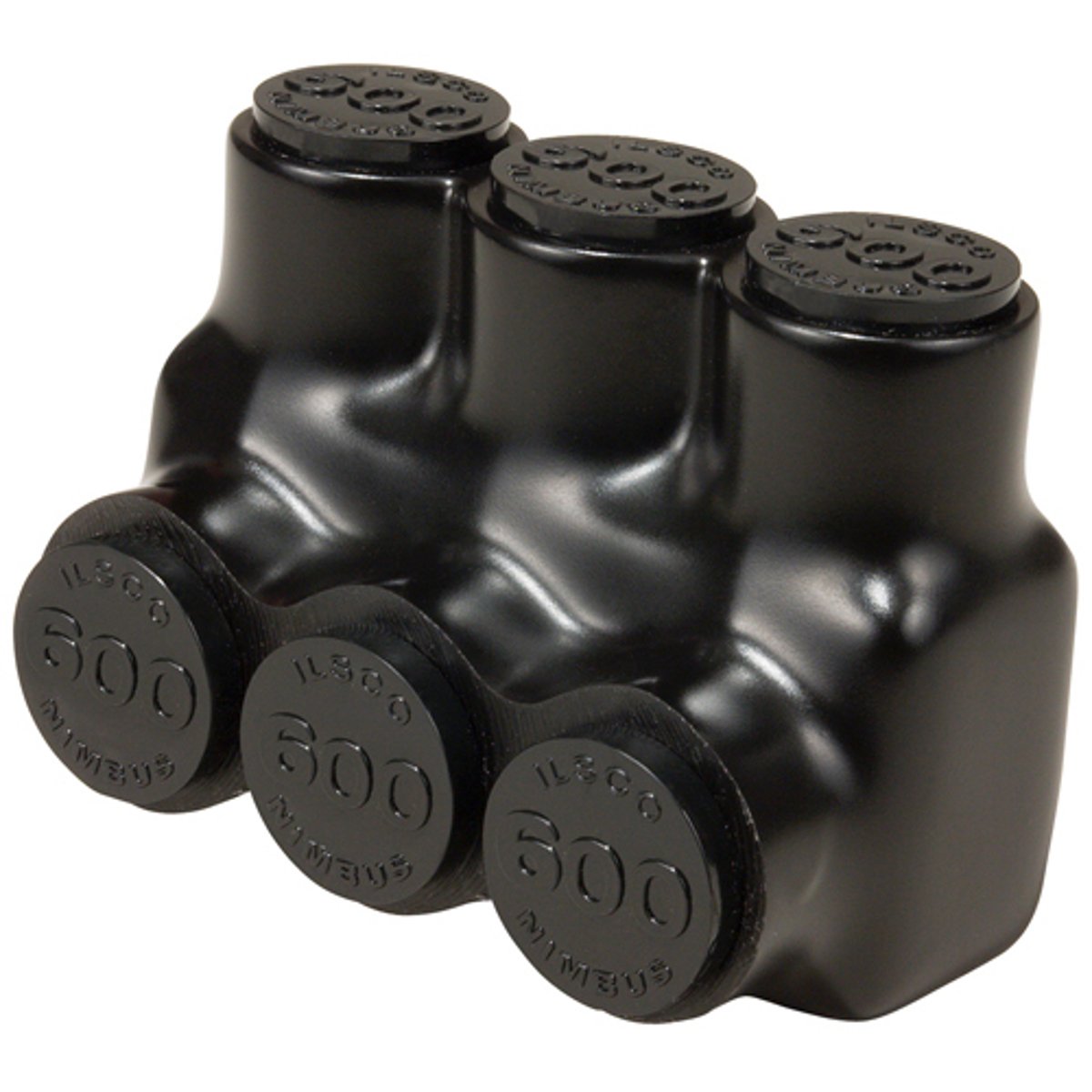

ILSCO PBTS-3-4 Nimbus Insulated Aluminum Multi-Tap Connector Power Conductor Range 4-14 3 Ports

Product Description

ILSCO PBTS-3-4 is a Nimbus Insulated Aluminum Multi-Tap Connector designed for electrical connections. It features a conductor range from four to fourteen AWG and includes three ports for multiple connections. Ideal for both copper and aluminum conductors.

• Three ports for versatile connection options.
• UV-rated black cover for outdoor applications.
• Pre-filled with de-oxidizing compound for long-lasting performance.

Product Highlights

This connector is engineered to meet various electrical needs, offering reliability and durability in installation.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: PBTS-3-4
• Number of Ports: 3
• Connector Type: Insulated Multi-Tap
• Conductor Material: Copper/Aluminum
• Approved Ratings: UL 453G, UL 486A/B, CSA
• Temperature Rating: -45 to 90 degrees Celsius
• Maximum Conductor Size: 4 AWG
• Minimum Conductor Size: 14 AWG
