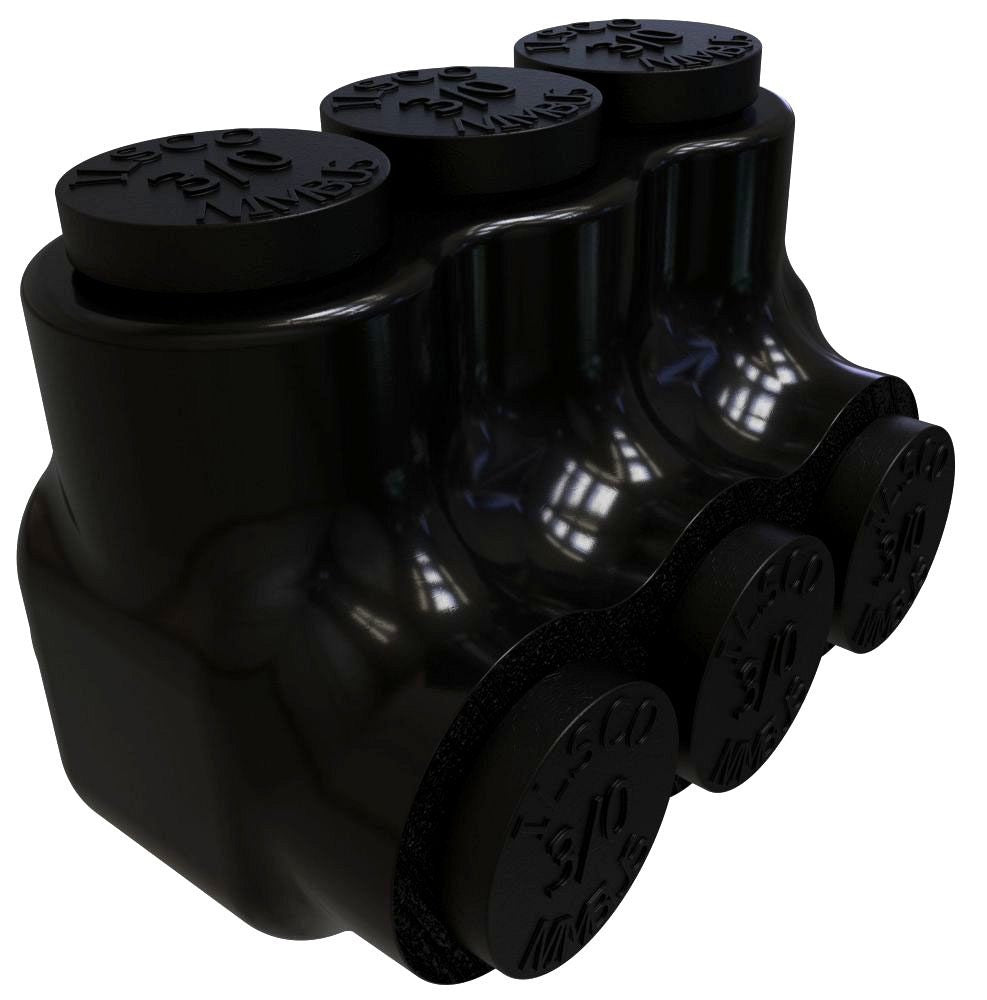

ILSCO PBTS-3-3/0 Multi-Tap Connector, 3 Ports, Single Sided Entry, UL, CSA

Product Description

The ILSCO PBTS-3-3/0 is a multi-tap connector designed for use in various electrical applications. This insulated connector is suitable for conductor sizes ranging from six to three-aught American Wire Gauge (AWG). It features three ports and a single sided entry for easy installation. The connector is UL listed and CSA certified, ensuring it meets stringent safety standards.

• Compatible with copper and aluminum conductors
• UV rated with a chemical resistant black cover
• Designed for voltages up to six hundred volts

Product Highlights

This multi-tap connector offers flexibility in wiring connections and is ideal for outdoor usage, thanks to its UV protection.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: PBTS-3-3/0
• Maximum Conductor Size: 3/0 AWG
• Minimum Conductor Size: 6 AWG
• Number of Ports: 3
• Country of Origin: Mexico
• UPC: 783669079524
• Approval: UL 453G, UL 486A/B, CSA
