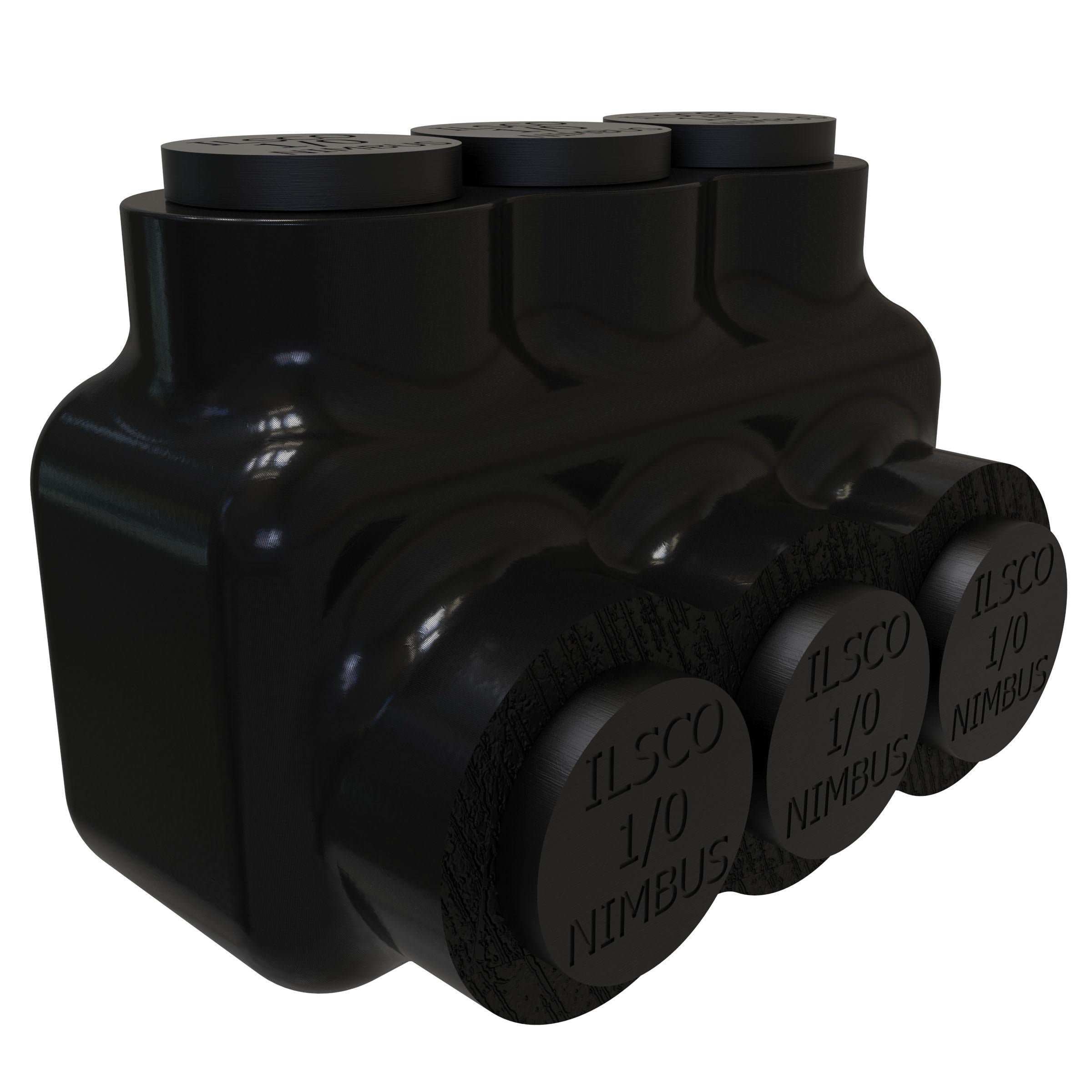

Ilsco pbts-3-1/0-sr Nimbus Multi-tap Connector 170A

Product Description

The ILSCO pbts-3-1/0-sr is a Nimbus Series single-sided multi-tap connector designed for making multiple tap connections from a single run conductor. Rated at 170 amps and 600 volts, this 3-pole connector accepts wire ranging from 14 AWG to 1/0 AWG via screw clamp terminations. The body is molded from Plastisol and rated for 90 degrees C operation. It is suitable for both insulated and non-insulated conductor applications. Electricians use this connector in panel tap work, branch circuit distribution, and power distribution blocks where multiple conductors must terminate to a common point in a compact footprint.

The pbts-3-1/0-sr fits residential and light commercial electrical distribution applications where consolidating multiple branch circuits to a single run conductor is required. Its compact dimensions of 2.29 inches in length, 1.53 inches in width, and 1.63 inches in height make it practical for installation inside enclosures, load centers, and junction boxes with limited space. The single-sided configuration keeps all tap conductors on one face, simplifying wire management in tight installations.

Key Features

• 3-pole single-sided multi-tap design accepts up to three tap conductors simultaneously
• Wide wire range from 14 AWG to 1/0 AWG accommodates varied branch circuit sizes
• Screw clamp connection type provides secure, vibration-resistant termination
• Rated 170 amps and 600 volts for robust distribution applications
• Plastisol insulated body rated to 90 degrees C for high-temperature environments
• Compact form factor at 2.29 x 1.53 x 1.63 inches suits enclosure installations

Compatibility

Designed as an OEM-style multi-tap connector within the ILSCO PBTS Series, compatible with copper or aluminum conductors ranging from 14 AWG to 1/0 AWG in distribution and panel tap applications rated up to 600 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before making any connections. Use a calibrated torque screwdriver to tighten screw clamp terminals to the connector manufacturer's specified torque listed on the product or packaging documentation. Verify conductor insulation rating is compatible with the 90 degrees C temperature rating of this connector before installation.
