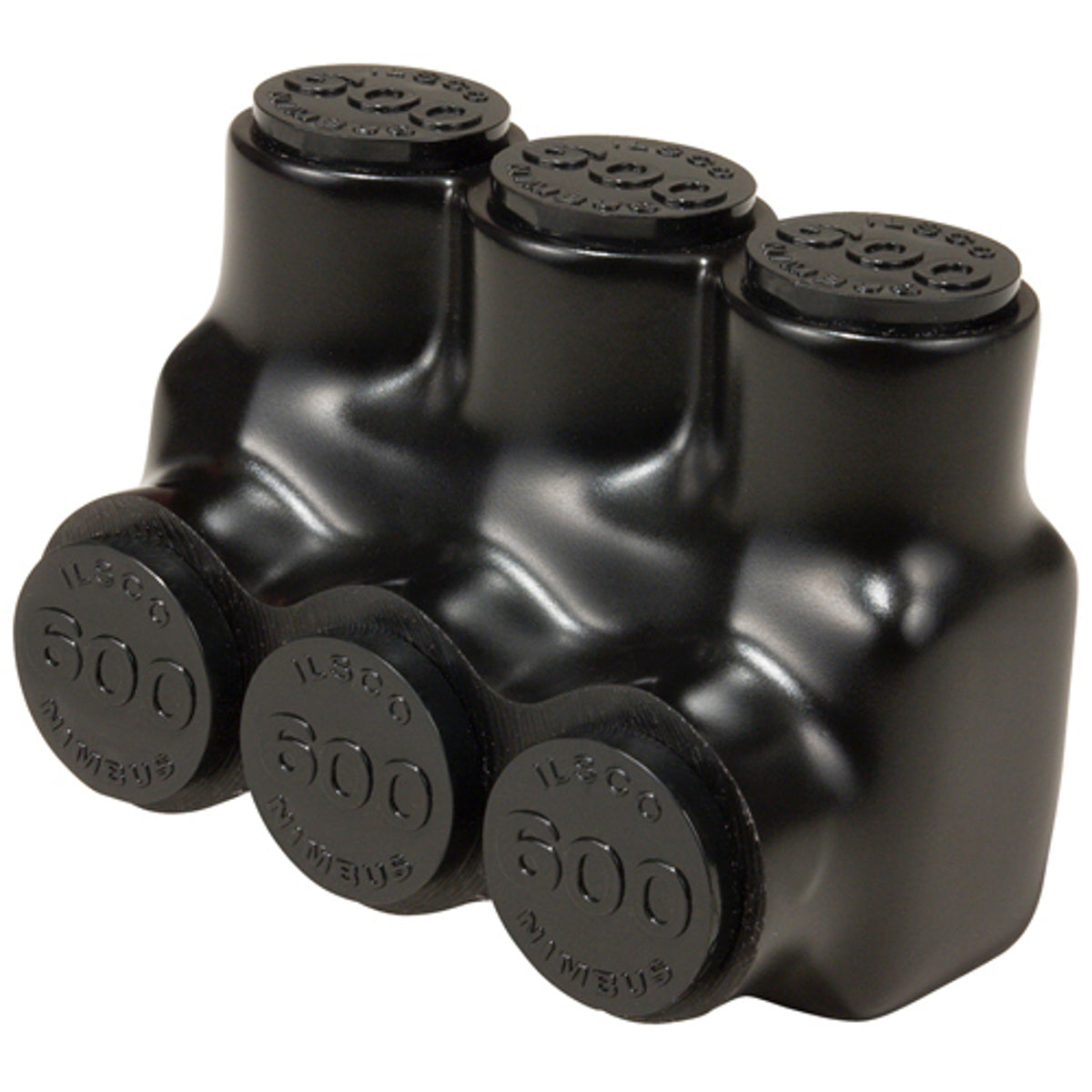

ILSCO PBTS-3-1/0 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 1/0-14, 3 Ports, Single Sided Entry

Brand: ILSCO
SKU: PBTS-3-1/0
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$30.57
$30.57
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The ILSCO PBTS-3-1/0 is an insulated aluminum multi-tap connector designed for various electrical applications. This connector supports conductors ranging from one aught to fourteen AWG. It features three ports for efficient connectivity, making it suitable for multiple wire connections. The connector is UL and CSA listed, ensuring compliance with safety standards.

  • Conductor range of 1/0 to 14 AWG
  • Three ports for various connections
  • Tin-plated for enhanced conductivity

Product Highlights

This product ensures reliable connections with its high dielectric strength insulation and is pre-filled with DE-OX oxide inhibiting compound. Designed for flexibility in field applications, it is also chemical resistant and UV rated for long-term durability.

Product Information

Standard Information

  • Brand: ILSCO
  • Manufacturer: ECM Industries

Technical Specifications

  • Catalog Number: PBTS-3-1/0
  • Conductor Type: Aluminum/Copper
  • Dimensions: 2.29 inches L x 1.53 inches W x 1.63 inches H
  • Voltage Rating: 600 VAC
  • Amperage Rating: 170 A
  • Temperature Rating: -45 to 90 degrees C
  • Country of Origin: Mexico
  • UPC: 783669079265
