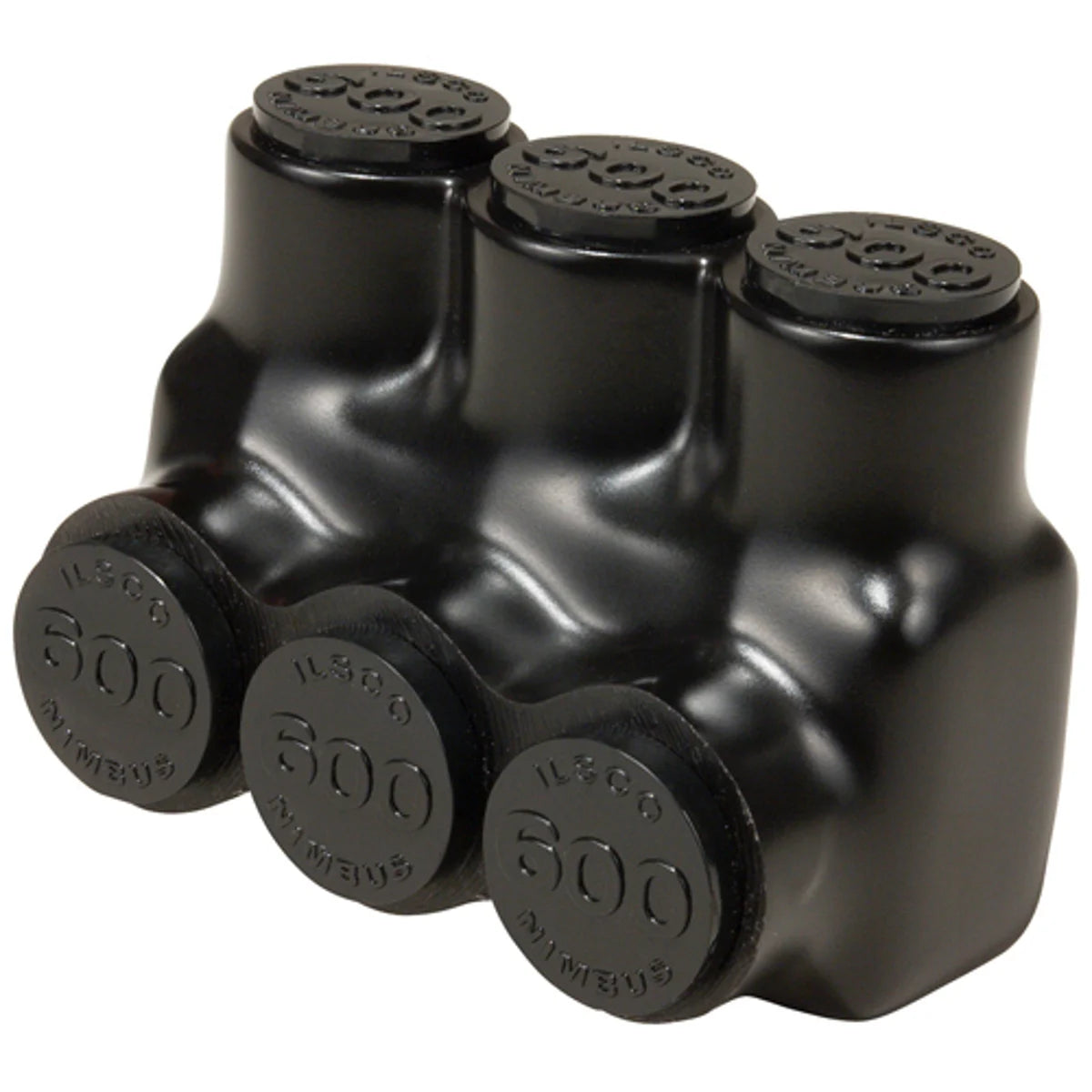

ILSCO PBTS-2-4 Nimbus Insulated Aluminum Multi-Tap Connector, 2 Ports

Product Description

The ILSCO PBTS-2-4 is a Nimbus insulated aluminum multi-tap connector designed for a conductor range of four to fourteen AWG. This connector supports dual ratings for both copper and aluminum conductors, ensuring flexible application in various electrical settings. The single-sided entry feature allows for straightforward installation.

• Supports wire sizes from four to fourteen AWG
• Manufactured from high dielectric strength plastisol
• UL listed and CSA certified for reliability

Product Highlights

This connector is ideal for electrical applications requiring versatility and ease of connection. It includes features that enhance reliability and safety in installations.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: PBTS-2-4
• Maximum Conductor Size: 4 AWG
• Minimum Conductor Size: 14 AWG
• Number Of Ports: 2
• Body Material: High Dielectric Strength Plastisol Insulated
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Approval: UL 453G, UL 486A/B, CSA
