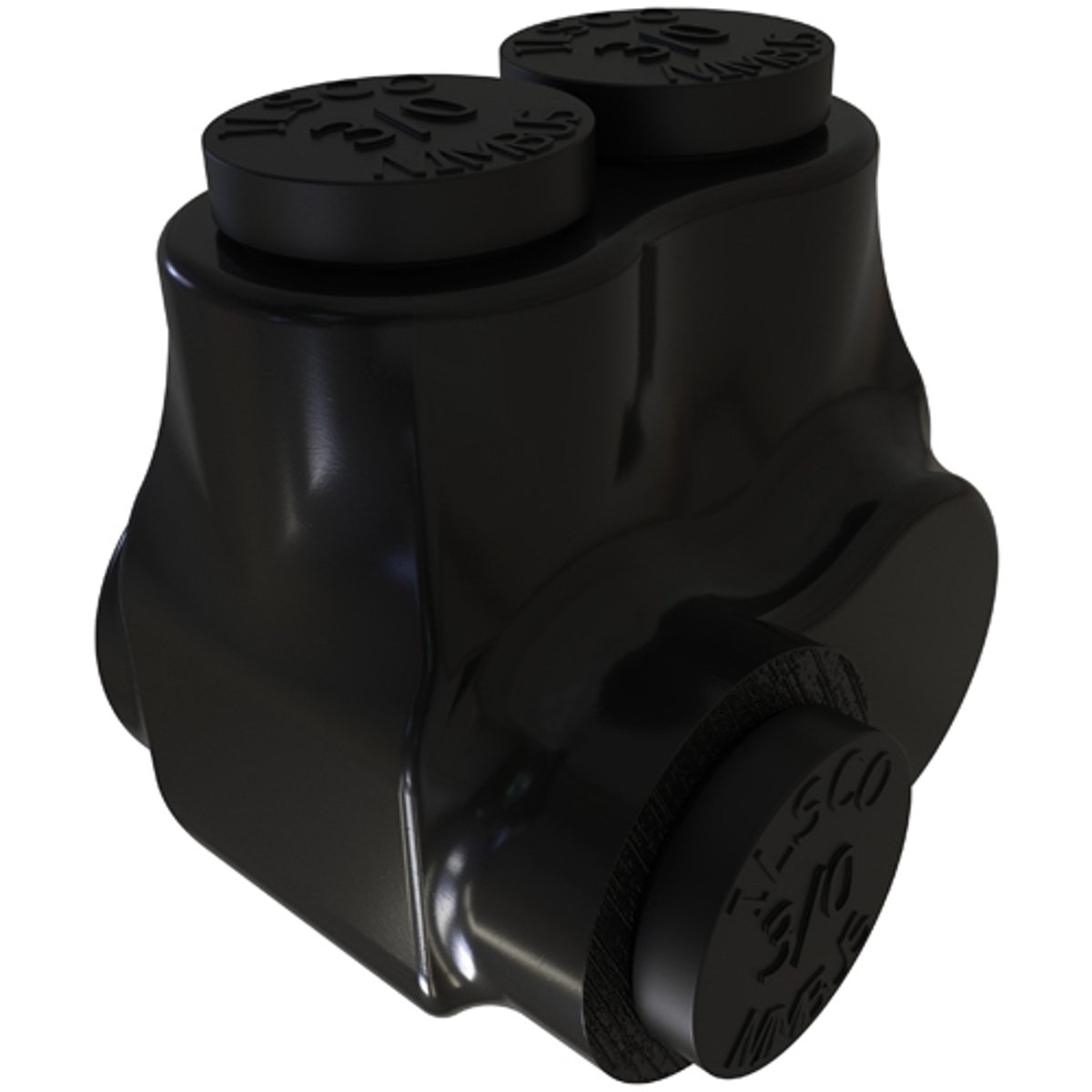

ILSCO PBTO-3/0 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector Offset, Conductor Range 3/0-6, 2 Ports, Tin Plated, UL, CSA

Product Description

The ILSCO PBTO-3/0 is a Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector designed for use with conductor ranges from three-aught to six AWG. This connector features two ports and helps to effectively splice and reduce conductors. It is suitable for both copper and aluminum conductor materials and is made with a high dielectric strength plastisol insulation.

• This connector includes removable port and screw plugs.
• Pre-filled with DE-OX to prevent oxidation.
• Rated for use with multiple conductor sizes, enhancing flexibility in various applications.

Product Highlights

Reliable performance in a wide range of electrical applications. It meets stringent UL and CSA safety standards, making it ideal for residential and commercial use.

Product Information

Standard Information

• Catalog Number: PBTO-3/0
• Manufacturer: ECM Industries

Technical Specifications

• Approval: UL 453G, UL 486A/B, CSA
• Body Material: High Dielectric Strength Plastisol Insulated
• Cable Entry: In-Line
• Conductor Material: Copper/Aluminum
• Maximum Conductor Size: 3/0 AWG
• Minimum Conductor Size: 6 AWG
• Number Of Ports: 2
• Country of Origin: Mexico
• UPC: 783669078961
